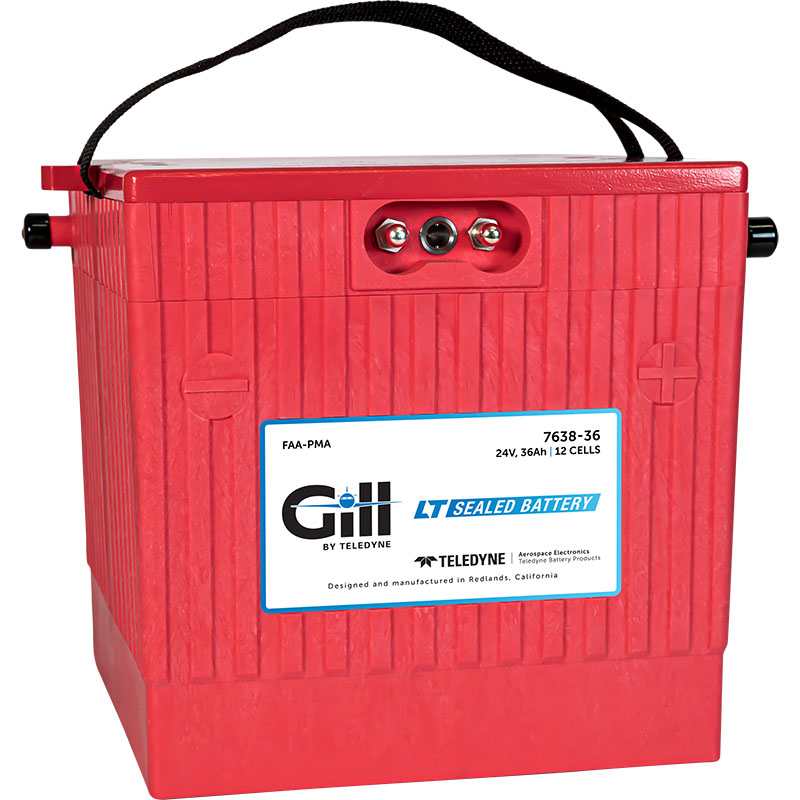

GILL® LT 7638-36 SEALED BATTERY

$2090.00/Each
Quantity
Add to Wishlist
Part# 11-10756
MFR Model# 7638-36

Overview

  • The Gill 7638-36 is “Original Equipment (OEM) for Embraer EMB 505 Aircraft
  • NO additional STC hardware is required
  • Maintenance Free – Shipped Fully Charged and No Electrolyte or Water Required
  • Non-Spillable and Proven for Aerobatic Maneuvering
  • 2 Year Factory Warranty After Installation
  • Robust Starts, Higher Residual Power & Faster Re-Charge Times
  • First Capacity Check Not Required Until 18 Months/1800 Hours
  • Cost Competitive and Best Shelf Life in Lead Acid Chemistry
  • Advanced Valve Regulated Lead Acid (VRLA) Design
  • FAA/PMA Approved, TSO Authorized and Tested to DO-160E
  • LT® Series Batteries Are Fully Recyclable
  • LT® Series Batteries Ship Hazmat Exempt
Start strong with the Gill® 7638-36 for your Embraer EMB 505 aircraft with no additional STC hardware required. See the application chart to locate your aircraft and review your battery options.

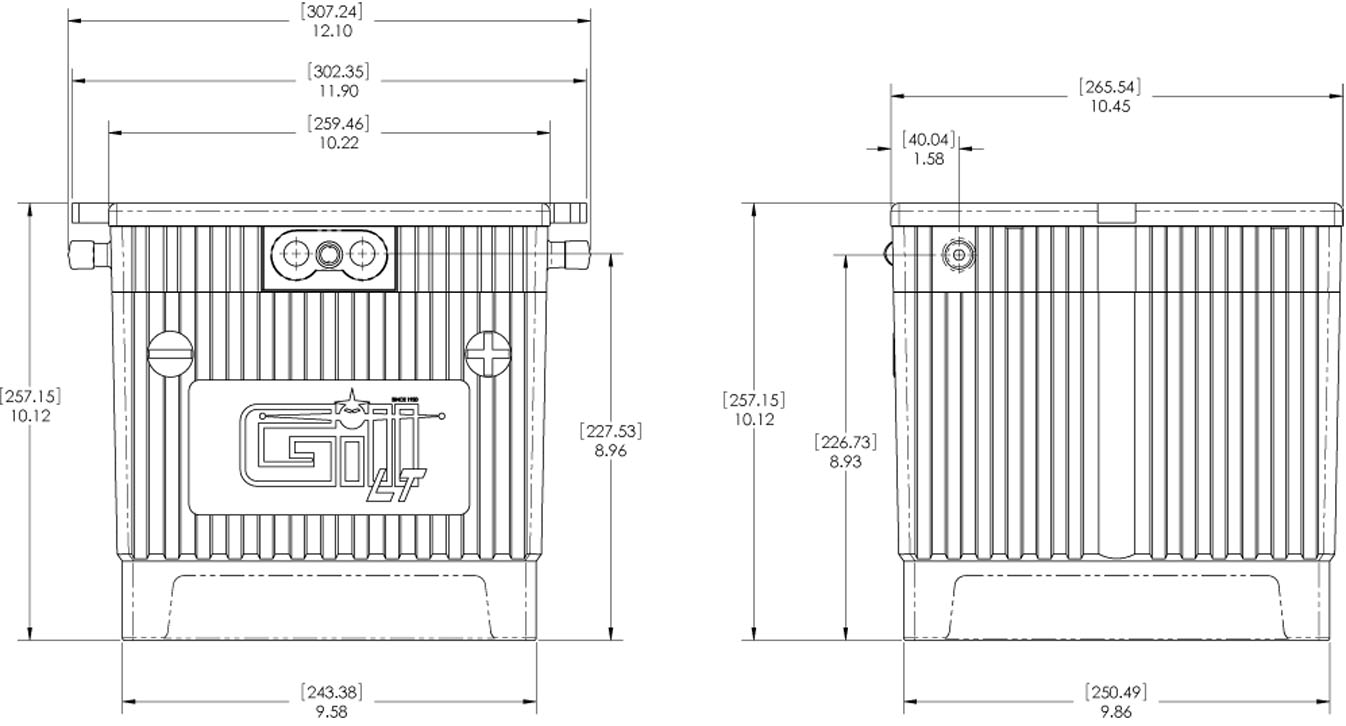

Model Voltage Amp Hours 30 Minute Capacity Battery Diagram PDF
7638-36 24 36 63 Download Full Battery Specification

Application Guide

Manufacturer Model PMA SUP. #
Embraer EMB-505 53

Specifications

  • 24
  • Type: Sealed
  • Weight: 85
  • 1 hr (C1) 36
  • 30 min (2C) 63
  • 60 sec/0 geg F (CCA) 500
  • Electrolyte: Not Needed
