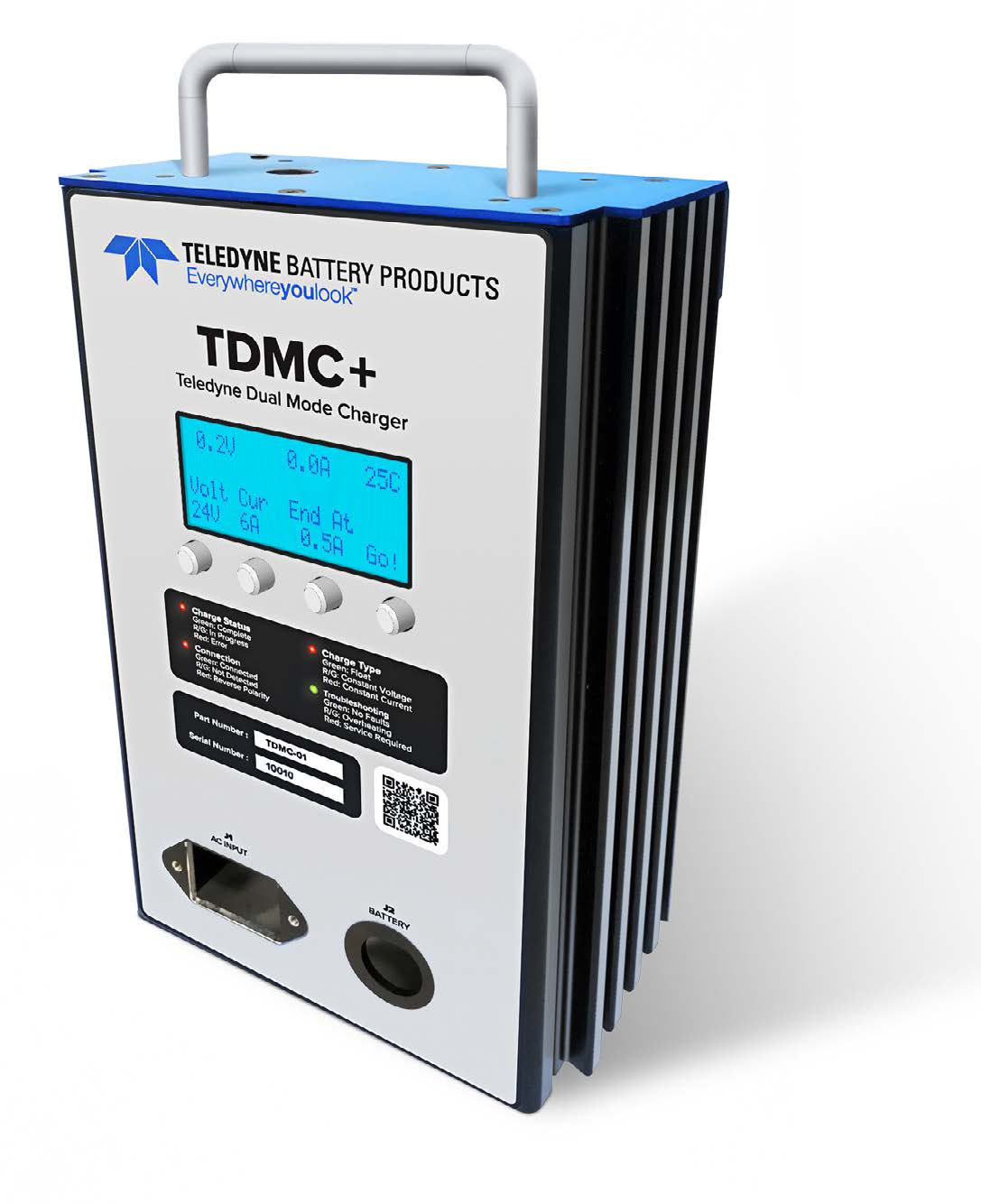

Teledyne Tdmc Plus Dual Mode Charger 12V / 24V

$1395.00/Each
Quantity
Add to Wishlist
Part# 11-18842
MFR Model# TDMC-01

Overview

Teledyne Battery Products TDMC+, a reengineered version of the TDMC 90 charger providing extended service life.

TDMC+ Capabilities
  • 12V and 24V aircraft battery support
  • Precision 3 stage charge with maintenance float mode
  • Precision 2 stage charge for battery de-sulphation with automatic shutoff
  • Selectable charging current upgraded from 1A-4A to 1A-6A
Enhanced screen display showing real-time voltage and current allows operator to:
  • Confirm wiring is connected correctly
  • See battery voltage before starting charge
  • View actual charging conditions during charge
Solid-state reverse polarity voltage protection prevents charger operation when battery is not properly connected.

Unit comes with a 2-year limited warranty managed directly by Teledyne

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Input: 115-230 VAC 50/60 Hz 2 Amps
  • Output: 14.4 or 28.8 VDC 0-6 Amps
  • Dimensions: 5.71”W x 9.12”H x 3.15”D
  • Weight: 6 lbs

Documents

Reviews

-1 star cant change between CC and CP Aircraft Spruce needs to contact the vendor and have them include an instruction manual. Though the box said it was included, no instruction manual was included only a quick start guide. The QR code only takes you to the website for the charger - theres no instruction manual there either. Every lead acid aircraft battery CMM differentiates between charging in Constant Current and Constant Potential and cautions you against charging improperly. Without the instruction manual to instruct how to change the charge between CC and CP this will only result in negligence when destroying someones battery. I connected the charger to an unairworthy, but otherwise good battery and ended up disconnecting the charger when the voltage reached 16.9 volts and 8 amps. When I can figure out how to control the volts and amps like the 20 year old TDMC 90, it will work just fine.

David A
January 2, 2022

Doesnt quite meet the specs for charging Concorde batteries. A 42 Ah battery needs to be able to charge at a max of 34 Volts. Almost there. Maybe Teledyne should read the Concorde CMM so they can make their charger meet the specs for those batteries.

Dave
April 17, 2022

Do not recommend. The TDMC 90 could charge at a constant voltage - this wont. For that reason and others, the description is misleading. Instead of this, buy the GC-12 or GC-24 that Aircraft Spruce sells for for $239

David A Verified Purchase

Gill Tdmc+ Teledyne Dual Mode Charger

January 11, 2022

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does the TELEDYNE TDMC PLUS DUAL MODE CHARGER 12V / 24V come with the cables to attach to the battery?

Yes it does.

Q: Does the TDMC + comes with a discharging mechanism and capacity testing?

The TDMC+ is a charger only.

Q: Will this TDMC charger work to charge lithium aircraft batteries?

No this cannot be used with Lithium ion batteries.
