High-Output 3 Watt LED Navigation Light Bulbs

26 Reviews 11 Answered Questions

From $25.95 to $26.50

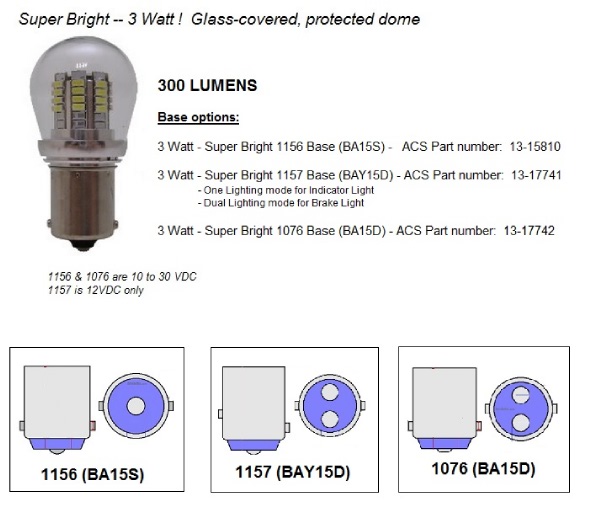

Model Number	Volts Amps/ Watts	Description	Part Number	Price	Buy
1156 (BA15S)	10 to 30VDC	3 Watt - Super Bright	13-15810	$26.50	Quantity
1157 (BAY15D)	12-14VDC	3 Watt - Super Bright One Lighting Mode for Indicator Light Dual Lighting Mode for Brake Light	13-17741	$25.95	Quantity
1076 (BA15D)	10 to 30VDC	3 Watt - Super Bright	13-17742	$25.95	Quantity

Subtotal $0.00

Add to Wishlist

JUMP TO

Overview

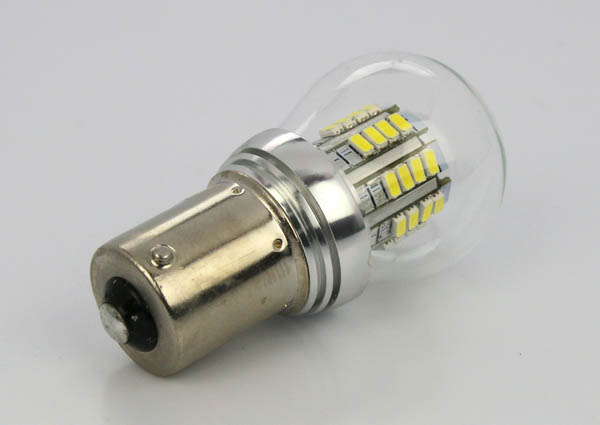

High-Output 3 Watt LED navigation light bulbs.

LED retro-fit for older Grimes navigation lights. Glass-covered, protected dome.
Models: 1156, 1157 and 1076


	WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. www.P65Warnings.ca.gov

Frequently Purchased With
Customers Also Viewed

Reviews

Submit a Review

Easy to install and great product.

Michael L

Verified Purchase

HIGH-OUTPUT 3 WATT LED NAVIGATION LIGHT BULBS - 1157

February 1, 2023

Great product and working on all lighting replacement with LED. Thank you

Michael L

Verified Purchase

HIGH-OUTPUT 3 WATT LED NAVIGATION LIGHT BULBS - 1076

January 24, 2023

Quick and easy to install. Very affordable product.

Robert S

Verified Purchase

HIGH-OUTPUT 3 WATT LED NAVIGATION LIGHT BULBS - 1156

October 1, 2022

ACS sent the wrong bulb, i received the 2 terminal end vs the single. Unfortunately the bulb was dropped during inspection as to why it did not work. Could not return.

Ed M

Verified Purchase

HIGH-OUTPUT 3 WATT LED NAVIGATION LIGHT BULBS - 1076

February 4, 2022

Bright as heck I should be seen from 50 miles out!

Dave W

Verified Purchase

HIGH-OUTPUT 3 WATT LED NAVIGATION LIGHT BULBS - 1156

January 12, 2022

Perfect substitute for nav lights in piper saratoga with original nav light. Able to upgrade to led w/o the high expense of replacing the whole assembly.

Clay S

Verified Purchase

HIGH-OUTPUT 3 WATT LED NAVIGATION LIGHT BULBS - 1156

November 19, 2021

Product arrived quickly and as advertised. Packaging was well-done.

Jamey C

Verified Purchase

HIGH-OUTPUT 3 WATT LED NAVIGATION LIGHT BULBS - 1076

November 12, 2021

Jamey C

Verified Purchase

HIGH-OUTPUT 3 WATT LED NAVIGATION LIGHT BULBS - 1076

November 11, 2021

Perfect fit, bright and the reduced current draw is significant.

Billy T

Verified Purchase

HIGH-OUTPUT 3 WATT LED NAVIGATION LIGHT BULBS - 1076

August 11, 2021

Perfect substitute for the old incandescent light bulb.

Washington P

Verified Purchase

HIGH-OUTPUT 3 WATT LED NAVIGATION LIGHT BULBS - 1076

June 17, 2021

Plenty bright! Documentation a bit weak, I was not sure if it was bidirectional (electrically) -- fortunately, it is. No need to pay attention to which contact is hot and which is ground.

Washington P

Verified Purchase

HIGH-OUTPUT 3 WATT LED NAVIGATION LIGHT BULBS - 1156

June 11, 2021

Easy install, super bright. You will certainly be seen at night!!!

S W

November 9, 2020

Worked feat. Very bright!

Les H

October 13, 2020

Fit and worked great . Very bright with less amps ! Tried to order just green light for right wing but sales associate said I had to buy green and red as a pair even though in the text it says you can order the red or green individually for replacement .

Tom

December 12, 2019

Purchased two of these LED Lamps to replace the courtsey lamps underneath the wings of a Cessna 172P with 24 volt system. Great improvement over the incandescent bulbs and easy install.

Mark B

November 11, 2019

This bulb is very bright, but consumes very little electricity. The price is low, also.

Sydney C

August 22, 2019

Great, works, bright, and mechanic says minor alteration much brighter than standard

Richard F

February 10, 2019

Appears to be brighter than the incandescent bulb it replaced, at much lower current draw.

David F

January 14, 2019

so far so good

Ron F

November 24, 2018

Installed these last week and so far I love them! Huge improvement over the old GE bulbs.

Faron F

November 12, 2018

Couldnt use it as it has two contacts on the bottom.....not like the picture.

John A

August 17, 2020

Caused interference with avionics. Had to remove it. Totally useless.

Nagy M

Verified Purchase

HIGH-OUTPUT 3 WATT LED NAVIGATION LIGHT BULBS - 1156

December 14, 2022

It would not fit. The tip was too large so I could not get it to lock in place. Filed down the tip so it fit but too loosely. Then would not work. Got some incandescent bulbs elsewhere.

Rob P

Verified Purchase

HIGH-OUTPUT 3 WATT LED NAVIGATION LIGHT BULBS - 1156

October 27, 2021

Had been turned on for about 3 hours total over a period of six months when it quit.

G P

February 11, 2017

Not usable on aircraft due to EMI. Hand held receiver would break squelch if closer than 6 feet from operating bulb. Panel radios constantly break squelch while bulb operates. 12 volt system.

Bryan J

January 28, 2020

If your nav light socket requires the offset probes as indicated by the picture 1157, part #13-17741, do not buy. As it turns out, this part is only for automobiles as a standard nav light socket requires a single pole contact. This led bulb has a dual pole and wont allow contact to work. For the offset probes, you will have to look elsewhere. Bad advertisement.

Lloyd E

April 21, 2019

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: The product sheet indicates this bulb comes in a variety of bases (1156 or 1157). Which one are you selling? The shopping cart does not give one the ability to select the appropriate base. Thanks

This item, part number 13-15810, is a 1156 base.

Q: Can this bulb be used as a replacement for the bulb utilized in the anti collision red lens beacon light being powered with a power supply?

This will depend on your assembly. This bulb is universal so it does not have a specific application although it is mainly used as a nav light bulb it also can be used for various applications.

Q: What kind of warranty, if any, do these bulbs have? Specifically PN 13-15810?

No manufacturer's warranty is included with these bulbs. They are covered under our blanket 30 day return policy.

Q: Is the light from the bulb blocked by the scalloped bracket on the Cessna 172 tail light? Or does the light transmit straight rearward as an incandesant bulb?

It will have the same pattern as an incandescent bulb.

Q: Can these bulbs be used under the red and green lens covers?

Yes, they can but they may not be as bright. With LEDs, you either want a color bulb with a clear lens or the same color bulb and lens.

Q: What is the brightness output in lumens rating for each bulb?

These are rated at 300 lumens.

Q: Are these bulbs white light only or do they come in red and green since they are advertised as navigation light bulbs? Also 1157 indicates dual lighting for brake light. Do aircraft have brake lights? Thanks.

The bulbs emit white light and they are designed to be used under red/green lenses. These are not certified, and are for experimental aircraft. They also have automotive applications(ref brake lights) but some aircraft light assemblies do use the dual element bulbs.

Q: Replacing the Grimes 1512 incandescent bulb. Do I need the 1156 base?

Yes, that is correct.

Q: Which LED bulb replacea a GE 1777?

See Part number 11-11371.

Q: Can this bulb be used as a replacement for Part# 11-01964?

Yes, it can.
