| Description | Part Number | Price | Buy |
|---|---|---|---|

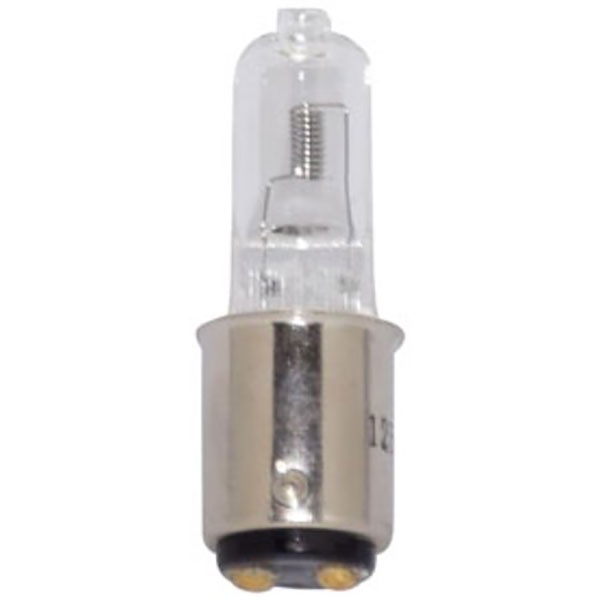

| AML T4 HALOGEN BULB 24V 150W 1924X | 040-0003 | $12.95 | |
| AML 303 BULB 28V 8.4W | 11-01948 | $0.65 | |
| UNIVERSAL BULB AML 330 14V 1.1W | 11-01950 | $0.45 | |
| AML BULB 1163 | 11-01953 | $15.70 | |
| WAMCO UNIVERSAL LAMP U1512 14V 21W | 11-01954 | $21.75 | |
| WAMCO UNIVERSAL LAMP WL-1524 | 11-01955 | $19.75 | |
| AML 1940 BULB 14V 50W | 11-01958 | $8.95 | |
| UNIVRSL BULB AML1982SP 28V 75W | 11-01960 | $18.50 | |
| WAMCO LAMP A-7079B-12 12V | 11-01962 | $18.95 | |
| UNIVERSAL LAMP UA-7079B-24 | 11-01963 | $54.75 | |
| WAMCO UNIVERSAL LAMP A-7512-12 | 11-01964 | $21.75 | |
| WAMCO BULB A-7512-24 | 11-01965 | $21.75 | |
| AML LAMP 12V HALOGEN LAMP 12v125w | 11-09370 | $19.90 |
Overview
| Long life incandescent and halogen lamps offer greater light output with increased life and reduced costs. All lamps feature heavy filament construction. Improved design and manufacturing techniques produce a lamp far superior in service with lower cost to the user and packaging provides maximum protection in shipping, handling and storage. |
Specifications
| Universal P/N | Grimes P/N | Whelen P/N | Gen. Electric P/N | Cessna | Piper | Aero flash | Our Part Number |
| 12V125W | - | 34-0212010-97 | - | C17312-3 | - | 40-0028 | 040-0028 |
| 24V150W | - | 34-0226010-91 | - | C17312-1 | - | 40-0003 | 040-0003 |
| U303 | - | - | GE-303 | 303 | - | - | 11-01948 |
| U327 | - | - | GE-327 | 327 | - | - | 11-01949 |
| U330 | - | - | GE-330 | 330 | - | - | 11-01950 |
| U1163 | 1163 | - | - | - | - | - | 11-01953 |
| U1512 | 1512 | - | - | 1512 | - | - | 11-01954 |
| U1524 | 1524 | - | - | 1524 | - | - | 11-01955 |
| U1687 | 1687 | - | - | - | - | - | 11-01956 |
| U1940 | 1940 | WRW-1940 | GE-1940 | 1940 | - | - | 11-01958 |
| U1982-SP | LP-1982SP | - | GE-1982SP | - | 761-214 | - | 11-01960 |
| UA-7079B-12 | 1-7076B-12 | - | - | A-7079B-12 | - | - | 11-01962 |
| UA7079B-24 | A-7079B-24 | - | - | A-7079B-24 | - | - | 11-01963 |
| UA-7512-12 | A-7512-12 | W1290-14 | - | A-7512-12 | - | - | 11-01964 |
| UA-7512-24 | A-7512-24 | W1290-28 | - | A-7512-24 | 753-476 | - | 11-01965 |
Reviews
Perfect fit for my Pa28. Wish there would be FAA LED approved
Verified Purchase
WAMCO UNIVERSAL LAMP U1512 14V 21W
Verified Purchase
AML T4 HALOGEN BULB 24V 150W 1924X
Very pleased with the brightness of this bulb for a standard incandescent beacon. I fully intend on installing an LED beacon in future, however this bulb is THE answer for your stock beacon that’s burnt out, dull or tired… or like in my case, if the previous owner put an interior light bulb in its place! Great value, will see how long it lasts, but initially I am totally satisfied.
Verified Purchase
AML LAMP 12V HALOGEN LAMP 12v125w
Verified Purchase
WAMCO UNIVERSAL LAMP A-7512-12
Order arrived quickly. Bulb installed easily. Works great.
Verified Purchase
WAMCO UNIVERSAL LAMP A-7512-12
Pleased
Verified Purchase
WAMCO UNIVERSAL LAMP A-7512-12
Exactly what was ordered with lightning fast shipping
Verified Purchase
AML LAMP 12V HALOGEN LAMP 12v125w
Its a bulb. It works.
Verified Purchase
UNIVERSAL BULB AML 330 14V 1.1W
good product ,good price
Verified Purchase
UNIVERSAL BULB AML 330 14V 1.1W
Simple bulb that is working as expected.
Verified Purchase
WAMCO UNIVERSAL LAMP A-7512-12
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes. It is an FAA approved replacement for the W1290-14.
We do not know have an aircraft application guide for these bulbs. A wing tip nav bulb is typically a 7512-14 or 7512-28 depending on aircraft voltage.
