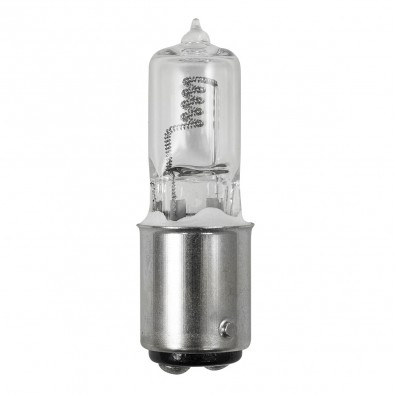

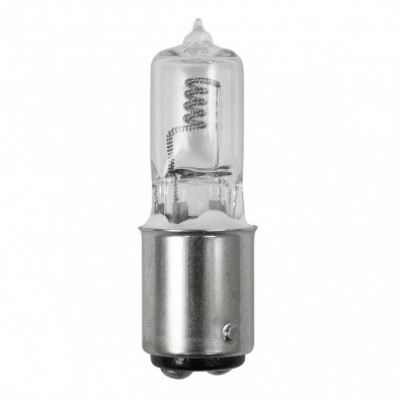

AML T4 Halogen Bulb 24V 150W 1924X

Part# 040-0003
MFR Model# 1924X


Voltage: 28V, Wattage: 150W, Type: Halogen Aircraft Navigation Bulb, Lumens: 3000, Length: 49mm, Diameter: 15mm, Base Type: BA15D (double contact bayonet), Average Life Hours: 750, Case Quantity: Order 50 for a full case, Cross Reference: ML-1924X - Micro Lamps, 1924X - Norman, 28V150W - Universal, 34-0226010-91 - Whelen, C17312-1 - Cessna, 40-0003 - Aeroflash, 40-6A - Gulfstream, 369A-4562-5 - Hughes
  • Frequently Purchased With
  • Customers Also Viewed


Steve U Verified Purchase


July 5, 2022

Worked when energized!!

Robert M
January 21, 2021

Item fits perfectly in the socket of my plane. No issues and good price.

Tim W
October 28, 2020

Pretty, perfect fit, crystal clear, replacement for 52 year old OEM cracked, cloudy, opaque lens. Usual AS&S prompt service.

Walt R
August 31, 2019

Exactly what I ordered. I was also glad that I ordered the lens gasket at the same time as the old gasket was cracked and split when I tried to put it on the new lens.

Mike M
August 8, 2018

The correct bulb to solve my problem. Shipping cost was as much as the bulb

Donald T
January 28, 2021

This figure is confusing. I was only looking for the bulb in the anti collision light but this appeared something else. The Price of $46.50 did not offer up this was a simple bulb and the same as 11-09370 for $20.50

Snorri K
May 13, 2019


Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is included in the wing tip strobe assembly P/N 153-0006?

The strobe assembly includes:

  • 073-0270 flashtube
  • 101-0084 hold down bracket
  • 080-0018 gasket
  • 111-0016 clear dome

Q: Does the Part Number 151-0002 light assembly come with a light bulb in the kit or do I need to order one? Also what would be the part number bulb so that I might be able to have some in stock?

Yes, the bulb part number 040-0028 is included.

Q: Re: 152-0010: Does it include flash tube?

No, 152-0010 is the power supply only.

Q: What is contained in PN 150-0015?

Part number 150-0015 is just the main lighting box, you would still need to order the lights for the kit.

Q: With Whelen takeover, can you advise the bulb part number 156-0039-DF (12V) Aeroflash to suit?

Aeroflash closed down, Whelen did not take them over. They have some parts that happened to cross ref to Aeroflash parts. They do not have a cross ref for this part number listed. You would likely need to replace the light assemblies.
