LED MIDGET FLANGE BASED BI-POLAR LAMP

$6.95/Each
Quantity
Add to Wishlist
Part# 11-09629
MFR Model# LED-MF CLEAR

Overview

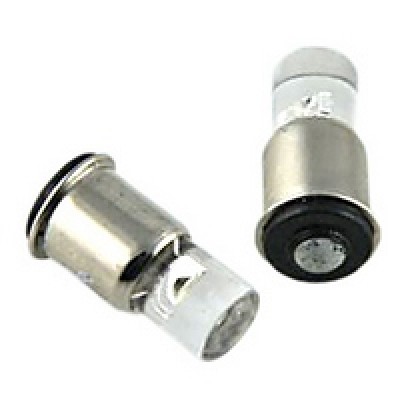

LED Midget Flanged Bi-Polar Lamp
T1-3/4 (5-28 volts)


A direct LED replacement for Midget Flanged Based miniature incandescent lamps.Long-life, low power consumption, shock resistance, and extreme thermal tolerancemake LED's ideal for harsh industrial environments.Voltages from 5V-28V AC or DC.

Replaces miniaturelamps:
# 328, 345, 350, 7335 (5/6V), 330, 382, 394 (12/14V), 327, 376, 387 (24/28V)

Attention: Not intended for use with Post Light Assemblies

Features

  • Up to 90% Energy Savings Over Incandescent Lamps
  • Long Life, 100,000 hrs.,Almost 10 years
  • Reduces Relamping Labor Cost
  • Shock and Vibration Proof
  • Lower Operating Temperature
  • Increased Safety, No glass that can shatter

Specifications

  • Lamp Shape: T1 3/4 (5mm)
  • Base Style: Midget Flange
  • Length MOL: 0.65"
  • Diameter MOD:0.24"
  • Electrical Data: Bi-Polar, will operate AC or DC, any polarity, 5-28V
  • Customers Also Viewed
  • Frequently Purchased With
  • Related Items

Reviews

They are bright and easy to see Them during bright sun light.

Mauricio F
June 13, 2020

Excellent product. Exactly what I needed, where I needed it, superb shipping and reasonable price.

Clifford W
May 14, 2020

Very Good. Just as I ordered.

Ronald B
April 10, 2020

These LED lights are brighter than the incandescent bulbs they replaced. In my case, I have bulb cases with adjustable eyes, so Iâm not worried about it. You can see these LEDs better in daylight. The incandescent bulbs got very hot, but the LED lights are cool. The LEDs should last much longer than the incandescent bulbs.

Steve M
September 20, 2018

The reason these lamps will not work in a compass is because a compass light fixture is wired backwards than a normal fixture. This is due to the way the lamp is inserted in the fixture. The positive post in a compass fixture is inside away from the frame, and touches the outside circumference of the lamp (normally the ground). The ground is the cover over the lamp, which touches the center lamp electrode. If it was wired conventionally, you would touch the case and get a shock. LEDs are polarity sensitive.

Dave
July 27, 2018

This was the only site I found that carried an LED lamp of this shape that was described as being a bi-polar lamp. The new lamps fit well and have worked in all our applications on broadcast equipment panels.

Skip R
June 4, 2018

These bulbs are an excellent replacement for the GE 330, but be aware that they will probably overwhelm green or amber lenses. All I can see thru my amber warning light is a bright white. I dont usually fly at night so this is fine. My amber warning lights are not the dimmable kind. I have a dimmable red lens warning light, and the red shows ok and the bulb seem to dim.

Gary G
April 16, 2016

Work great in Continental 616R series FM transmitters as direct replacement for the incandescent midget lamps in the filament on/off and plate on/off buttons. They are super bright, so only one bulb per button is needed, even though the button frame will accommodate four per button. These also work great for the panel lights in a QEI FMQ 10,000 transmitter! Super versatile, super bright, super cool and the price is super right.

Marvin
April 28, 2015

Plenty bright as a 327 replacement in a 28 volt system. Doesn't appear to generate as much heat as the original incandescent lamp.

Philip B
September 14, 2013

Used as a replacement for GE-330 12V landing gear indicator lamps. Brighter than the incandescent lamps, not sure if they can be dimmed or not, mine stay full bright.

Ned
December 22, 2017

Q&A

Q: How much current do the part #11-09629 LED replacements for the 330 12V bulbs draw? Will they work with an instrument panel dimmer? On the same dimmer with standard 330 bulbs? Thanks Will

Per the manufacturer, 11-09629 draws 20 milli amps. Yes, will work for the instrument panel dimmer, but will not dim very much on these standard bulbs.

Q: Are these LED midget flange based bi-polar lamps PMA'd for certificated aircraft?

Per the supplier: No, these are NOT FAA PMA'd for use in certified aircraft.

Q: Why are these not intended for use in post lights?

This statement is from the Manufacturer. As this is not FAA approved they would not like theses installed as post lights for certified aircraft. If you have an experimental aircraft you have can install these as you please.

Q: Are these supposed to be the bright white LEDs? Mine are yellow in color and wonder if this is correct?

The LED midget flange lamp (11-09629) is a warm white which has a slight yellow tint to simulate the color of an incandescent bulb.

Q: How bright are these LEDs? Typically the spec is in mcd or lumens. Thanks!

These are 20mA and 500fcd
