MCI TRUE BLUE DUAL USB CHARGING PORTS TA202 FAA-TSO

From $249.00 to $477.00
OEM P/N Power Input USB Connector Lighting Part Number Price Buy
6430202-1Rear ConnectorDual Type-A / Type-CUnlit
11-14397
$420.00
Quantity
6430202-2Bottom ConnectorDual Type-A / Type-CUnlit
11-14430
$420.00
Quantity
6430202-3Rear ConnectorDual Type-C / Type-CUnlit
11-14431
$439.00
Quantity
6430202-4Bottom ConnectorDual Type-C / Type-CUnlit
11-14432
$442.00
Quantity
6430202-5Rear ConnectorDual Type-A / Type-AUnlit
11-14433
$409.00
Quantity
6430202-6Bottom ConnectorDual Type-A / Type-AUnlit
11-14434
$409.00
Quantity
6430202-7Rear ConnectorSingle Type-CUnlit
11-14435
$264.00
Quantity
6430202-8Bottom ConnectorSingle Type-CUnlit
11-14436
$272.95
Quantity
6430202-9Rear ConnectorSingle Type-AUnlit
11-14437
$249.00
Quantity
6430202-10Bottom ConnectorSingle Type-AUnlit
11-14438
$249.95
Quantity
6430202-11Rear ConnectorDual Type-A / Type-CLit
11-14677
$465.00
Quantity
6430202-12Bottom ConnectorDual Type-A / Type-CLit
11-16389
$462.00
Quantity
6430202-13Rear ConnectorDual Type-C / Type-CLit
11-14940
$475.00
Quantity
6430202-14Bottom ConnectorDual Type-C / Type-CLit
11-16390
$477.00
Quantity
6430202-15Rear ConnectorDual Type-A / Type-ALit
11-16394
$448.00
Quantity
6430202-16Bottom ConnectorDual Type-A / Type-ALit
11-16391
$448.00
Quantity
6430202-17Rear ConnectorSingle Type-CLit
11-14939
$284.95
Quantity
6430202-18Bottom ConnectorSingle Type-CLit
11-16392
$284.95
Quantity
6430202-19Rear ConnectorSingle Type-ALit
11-14938
$269.95
Quantity
6430202-20Bottom ConnectorSingle Type-ALit
11-16393
$270.95
Quantity
Subtotal $0.00
Add to Wishlist

Overview

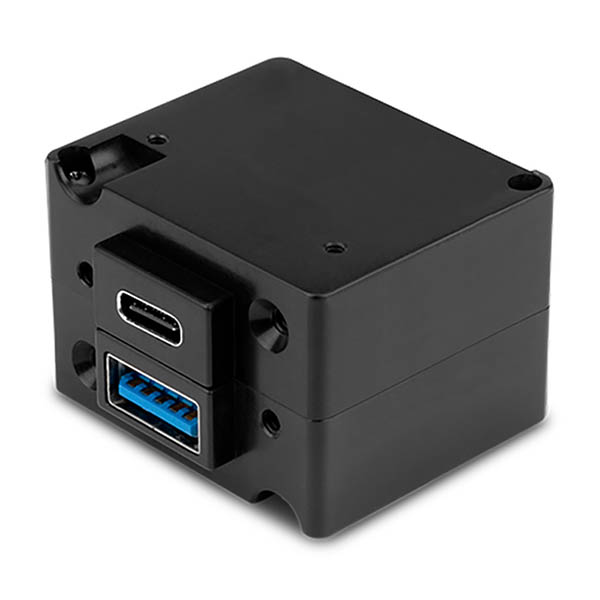

The high-powered TA202 Series USB Charging Port simultaneously provides 3 amps per port. Offering an extensive list of USB Type-C and Type-A configurations, the TA202 powers the next generation of electronic devices.

The extremely compact and TSO-certified, TA202 Series is the newest addition to the True Blue Power family of USB chargers. The versatile in-seat, cabin and cockpit power source offers single and dual port, USB Type-C and Type-A configurations.

Requiring no bulky, external power converters for 10 – 32 VDC installations, the TA202 delivers all the power you need in a small, economical, easy-to-install package.

Features

  • Output Current: 3.0 amps per port
  • Input Voltage: 10 – 32 VDC
  • Output Voltage: 5 VDC ± 0.25 per port
  • USB Connector: Type-A and/or Type-C; single and dual configurations
  • Efficiency: Charge one or two products simultaneously at full power
  • Protection: Short circuit, over-current and over-temperature protection
  • Applications: In-seat, cabin and cockpit mount
  • Designed and Manufactured: Wichita, Kansas, USA
  • Warranty: Two-year limited

Specifications

Input Voltage: 10 – 32 VDC
Input Power: 18 W max per port
Output Voltage: 5 VDC ± 0.25 per port
Output Current: 3.0 amps per port
Usb Connector: Type-A and/or Type-C; single and dual configurations
Weight: 0.8 ounces (23 grams) Single port 1.3 ounces (38 grams) Dual port
Dimensions: 1.5” W x 0.52” H x 1.25” D Single port 1.5” W x 1.03” H x 1.25” D Dual port
Mating Connector Kit: MCI P/N 9017960 (included)
Mounting: In-seat, cabin, cockpit; front or rear mount Optional front mount kit
(MCI P/N 9017897; dual port only)
Optional instrument mount kit
(MCI P/N 9017947; dual port only)
Certification: FAA TSO C71 certified
RTCA DO-160G qualified

Warranty

LIMITED LIFETIME WARRANTY
This limited lifetime warranty is extended by True Blue Power, a division of Mid-Continent Instrument Co., Inc. to all ultimate and direct purchasers of specific True Blue Power products covered herein.

True Blue Power warrants specific products manufactured by Mid-Continent Instrument Co., Inc. to be free from defects in material and workmanship when installed and used under recommended conditions and to perform according to the requirements of their individual specifications. This limited lifetime warranty applies ONLY to the original installation and non-commercial applications (Part 121 & 125, and is effective only after product registration card has been completed within 45 days of purchase.

The following situations will not be covered under this limited warranty:
  • Any defect, malfunction, breakage, or failure caused by unreasonable use or abuse while in the possession of a buyer.
  • Any defect, malfunction, breakage, or failure caused by mis-wiring at installation by the customer or his/her agent.
  • No product will be eligible for warranty consideration if, subsequent to its delivery, an alteration or modification becomes necessary for product improvement or in order to meet a change in the requirements of any applicable federal regulation.
  • Cosmetic damage, including but not limited to scratches, dents and broken plastic on ports
If any listed True Blue Power component fails within the duration of the express warranty, the entire extent of the Mid-Continent Instrument Co., Inc. liability under this warranty is limited to repair or replacement, at True Blue Power’s option. Eligible products shall be returned directly to True Blue Power, properly packaged and postage prepaid.

Examination must disclose a valid warranty condition to the satisfaction of True Blue Power.

In no event will seller be liable for any incidental damages, consequential damages, special damages, indirect damages, loss of profits, loss of revenues, or loss of use, even if informed of the possibility of such damages. Seller’s liability for damages arising out of, or correlating to a product or an order, is limited to the lesser of catalog or contract price for the specific product that gives rise to the claim. To the extent permitted by applicable law, these limitations and exclusions will apply regardless of whether liability arises from breach of contract, warranty, tort (including but not limited to negligence), by operation or law, or otherwise.

Printable Warranty (PDF)

Documents

  • Customers Also Viewed
  • Frequently Purchased With
  • Related Items

Reviews

Q&A

Q: Does the MCI USB port require a circuit breaker? If yes, can one circuit breaker suffice for 1, 2, or 3 ports located throughout the aircraft?

3 amp circuit breaker can be used on multiple ports.
