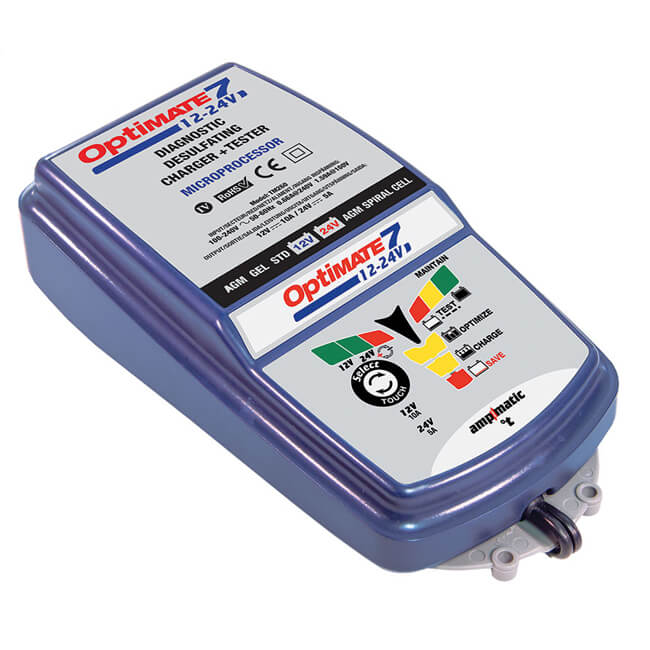

Optimate 7 Select Tm-261 Charger

Add to Wishlist
Part# 07-18076
MFR Model# TM-261


8-step 12V 10A/24V 5A Battery Saving charger-tester-maintainer (BC - California & Oregon approved)

The world’s most advanced 12V & 24V battery charger!
OptiMate 7 12V-24V is perfect for high performance 12V and 24V starter and deep cycle batteries that demand accurate temperature controlled charging and unsupervised safe long term maintenance.

Designed for sensitive electronics:The SAVE program has been designed for SAFE fully automatic low volt start (from 0.5 Volts) and PULSE recovery of deep discharged batteries connected to very sensitive electronics e.g. light aircraft, industrial equipment.

Protection against incorrect voltage selection:With 24V selected and a 12V battery is connected OptiMate 7 12V-24V will immediately warn that a low voltage is sensed and then not proceed to charging. USER must confirm the nominal voltage of the connected battery is 24V before SAVE mode activates.


  • Charging Amps: 10A @ 12V / 5A @ 24V (Ampmatic)
  • Use: Indoor / Outdoor  (lowest temperature: -40°F / -40°C).
  • Save: Low Volt Start of 0.5V (12V) + 1-Step desulphation recovery.
  • Ideal For: STD, AGM & GEL 12V (batteries from 3 – 400Ah) 24V (batteries from 1- 200Ah).
  • Input: Global (100-240V 50-60Hz), high efficiency (CEC listed), fully sealed.
  • Style: Weatherproof case with wall mounts, with 6ft / 180cm AC supply lead and 6ft / 180cm charge lead ending in SAE connector. Weatherproof battery lead & standard battery clip set included.
  • Safe: No risk of overcharging. Totally safe for vehicle electronics. Sparks suppressed. Safe for long-term battery maintenance. Automatic shut-down if short-circuited or battery disconnected. 3-year limited replacement warranty.
Program Steps
  • Step 1: Voltage Selection.
  • Step 2: Automatic protection.
  • Step 3: Test before charge.
  • Step 4: Low Volt Pulse SAVE.
  • Step 5: Controlled Charge.
  • Step 6: Optimize.
  • Step 7: Test after Charge.
  • Step 8: OptiMate maintenance.


  • Battery Types: STD, AGM, GEL & AGM SPIRAL CELL

In The Box

  • Battery Clips (O-04)
  • Automotive Weatherproof Battery Lead (O-11)
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items



Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Would this Optimate 7 charger adequate to charge an EarthX ETX 680C lithium battery?

Yes this charger would work.
