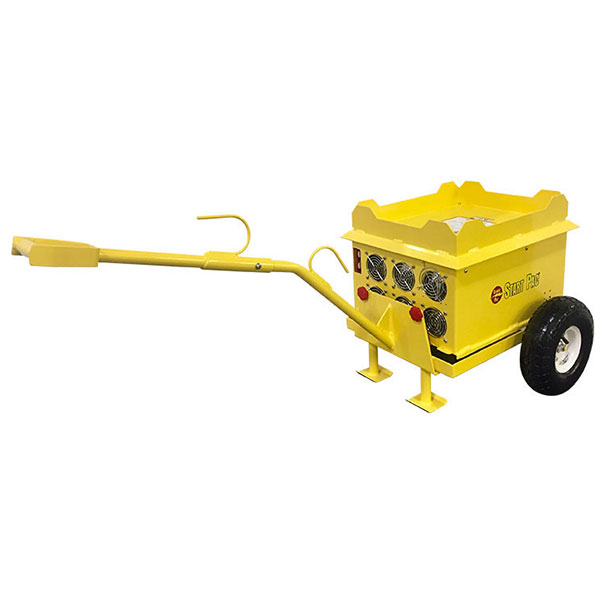

STARTPAC® MOBILE SUPPLY MODEL 53400 - 28.5V

$6853.00/Each
Quantity
Add to Wishlist
Part# 11-17746
MFR Model# 53400

Overview

Start Pac® Model 53400 is a 28.5 Volt continuous DC power supply when plugged into 220Volt single-phase AC power. This unit will deliver full 400 amp DC output, but will not provide enough current for engine starting. Therefore this unit is designed for maintenance and to power up various functions such as inverters, avionics, GPS, and air conditioning.

Note: This unit is NOT designed for engine starting or battery charging.

Specifications

Maximum Continuous Current output 400 A
DC voltage output 28 VDC
AC voltage input 180 - 240 VAC
AC current input at maximum DC power output 53 A @220VAC
Phase Single
Forced air-cooling Yes
Over current protection Yes
Over voltage protection Yes
Over temperature protection Yes
Complete weight with aircraft cables 119lbs / 54kg
Dimensions Length x Width x Height 50" x 23" x 23" (127 x 58 x 58 cm)
