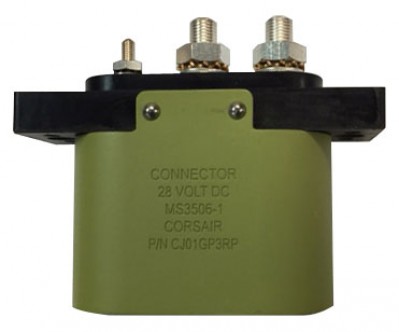

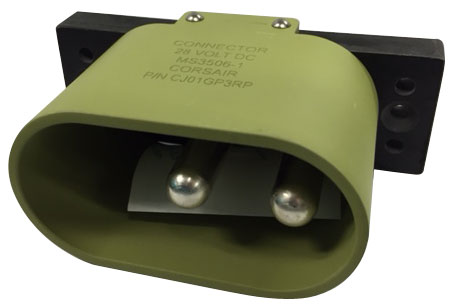

External Power Receptacle MS3506-1

$105.80/Each
Quantity
Add to Wishlist
Part# AN2552-3A
MFR Model# MS3506-1

Overview

This external power receptacle is designed to mount in a hole in the skin of aircraft. Hole is then covered with hinged access door (not included). Mates with AN2551 type plugs. Model 4621B.


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

H&m E Verified Purchase

MS3506-1 EXT POWER RECEPTACLE

May 6, 2023

Peter M Verified Purchase

MS3506-1 EXT POWER RECEPTACLE

March 1, 2023

Thank you

Sonitus M Verified Purchase

MS3506-1 EXT POWER RECEPTACLE

November 25, 2022

Works great for what we need.

Triverus,llc Verified Purchase

MS3506-1 EXT POWER RECEPTACLE

November 21, 2022

Arrived on schedule and as advertised

Stan P Verified Purchase

MS3506-1 EXT POWER RECEPTACLE

August 17, 2022

The Question by a customer “can this be used with a solar charger” was not given a good answer. The answer is “YES” it can be used for that purpose...PROVIDED the AN2552/MS3506 is directly connected to the battery and not thru a relay. (See your aircraft wiring schematic. An example is the Cessna 170B Illustrated Parts Catalog, in which the AN2552/MS3506 is directly connected to the battery-side of the master switch relay at the battery box. ) This is how mine is installed and I keep it continuously served by a battery maintainer this way. Hope this helps.

George H
December 14, 2020

Well made but pricey

David D
July 2, 2020

Exactly as described, perfect fit!

Jpd
January 1, 2018

Work perfect for the project we were working.

Kurt F Verified Purchase

MS3506-1 EXT POWER RECEPTACLE

July 6, 2021

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can this External Power Receptacle MS3506-1 work in 12v or 24v systems?

Yes, this will work in either 12v or 24v systems.

Q: What is the weight of the Receptacle MS3506-1?

This weighs approximately 0.88 lbs.

Q: What is the purpose of the small terminal and what does it connect to?

The small terminal is used to drive the external power relay. The normally-open external power relay is used to connect the source of external power to the airplane electrical system.

Q: Can you please advise. Will this external power receptacle MS3506-1 work with either Part # 11-02952 and/or Part # 11-05086?

Yes, this will work with part # 11-02952.

Q: Where is this unit manufactured?

These are made in the USA.

Q: Can EXTERNAL POWER RECEPTACLE MS3506-1 be used for trickle charging by solar panels?

We do not have any experience or data showing it's use for this application. It may work but we cannot say for sure.

Q: Could you please tell me what kind of threads are on all three outputs? Thank you.

Two are 3/8-24 and one is 10-32.
