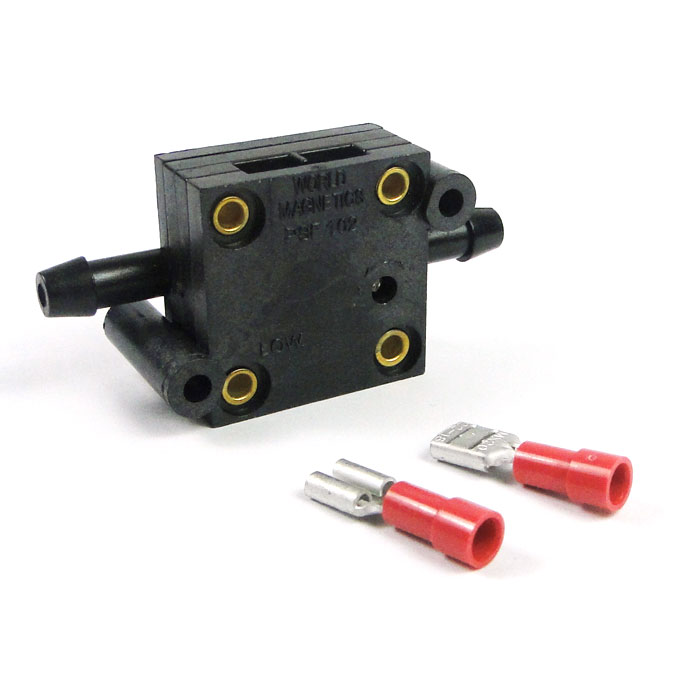

Airspeed switch for triggering 2 speed function. Factory calibrated, but can be field calibrated for 55-140 knots and can be used to control a low voltage relay. |
![]() |
WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. www.P65Warnings.ca.gov |
We installed the switch and set the switch to toggle at the correct airspeed, and checked the operation. The switch worked positively as advertised. Thank you George Boggs President Boggs Avionics Inc.
After installing this switch, there was a leak in the aircraft static system. I traced the leak to this switch. The static port on the switch is vented to the interior of the switch case. And the case is not airtight. I disconnected this airspeed switch from the static system and vented the switch to the cabin instead. I had also purchased a 40 knot airspeed switch and it leaked through the case too.
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
You would need a 1/4" OD hose.
Per the manufacturer: Yes, the TCW airspeed switch can be used to control a low voltage relay.
Normally open below airspeed set switch.
It may be field adjusted to switch at any speed between 55 and 140 knots.
