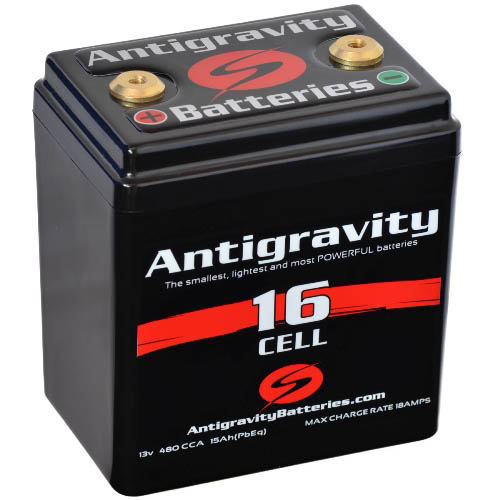

Antigravity 16 Cell Small Case Battery

$265.00/Each
Quantity
Add to Wishlist
Part# 11-12104
MFR Model# AG-1601

Overview

The Antigravity Batteries 1601 is getting into the massive power arena with 480 Cranking Amps. It is the smallest 16-Cell lithium battery made at only 4.5" Length x 3.25" Depth and 5.25" height (to the top of the terminals) This is the go to battery if you need very higher power in a compact size. This battery can turn over many of the larger V-Twin motor up to 113 cubic inches. This battery is often chosen for Custom V-Twins where small size is needed. Adventure bike who want more power and capacity and also a favorite in Race Cars.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Ultra-Lightweight and Ultra High Power Lithium Nano-Phosphate Motorsport Battery
  • Most Compact of Lithium Motorsports Batteries
  • Can hold a charge up to a year provided there are no "Parasitic Drains" (accessories that draw power when the bike is off...such as alarms, ECUs, ipods, GPS , heated grips etc...)
  • 3-Year Warranty
  • Can be installed in any orientation

Specifications

  • 480 Cranking Amps- (Cranking Amps are the power the battery has)
  • 16Ah (PB Eq) - (Amp Hours are the Capacity of a Battery)
  • USA SIZE 4.5" Length x 3.25" Depth x 5.25" Height (Height is measured to the top of the terminal bolt heads)
  • USA WEIGHT 3.2 lbs
  • METRIC SIZE 114mm Length x 83mm Depth x 133mm Height (Height is measured to the top of the terminal bolt heads)
  • METRIC WEIGHT 1.45 Kg

Documents

  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Bought this battery about 2 1/2 years ago. Worked great while it worked. Flew last week fine. rolled it out today and it wouldnt crank at all. totally dead and I didnt have anything on to drain it. Put it on the charger and only the red light came on. It WILL not charge. the battery is garbage. Going to an Odyssey right now. What sucks is that the Antigravity battery cost me so much money!!!

Fred G
August 1, 2020

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the max operating temperature for this Anti Gravity 16 cell small case battery?

Per manufacturer: The max operating temperature is 200 degrees F.

Q: Any special charging requirements for this Antigravity 16 cell small case batttery?

Yes, to be able to charge this battery you will need a Pacemaker Maintenance Charger P/N# 11-13890 (see accessories).

Q: What is the CCA (cold cranking amps) of this Antgravity 16 cell battery?

This battery will have 480 CCA.
