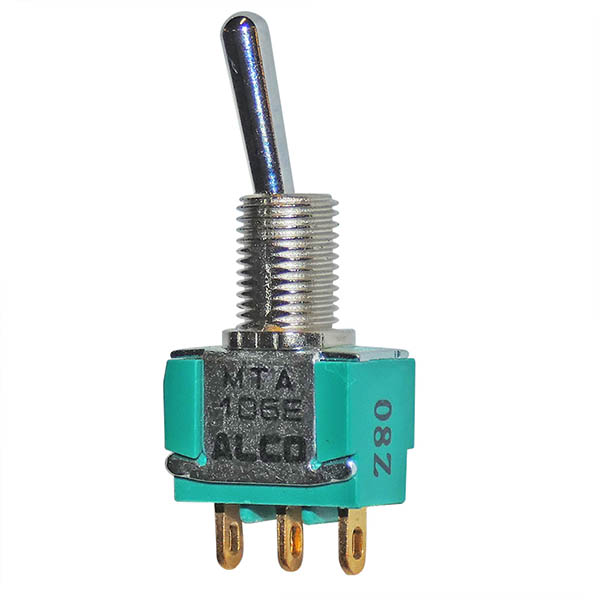

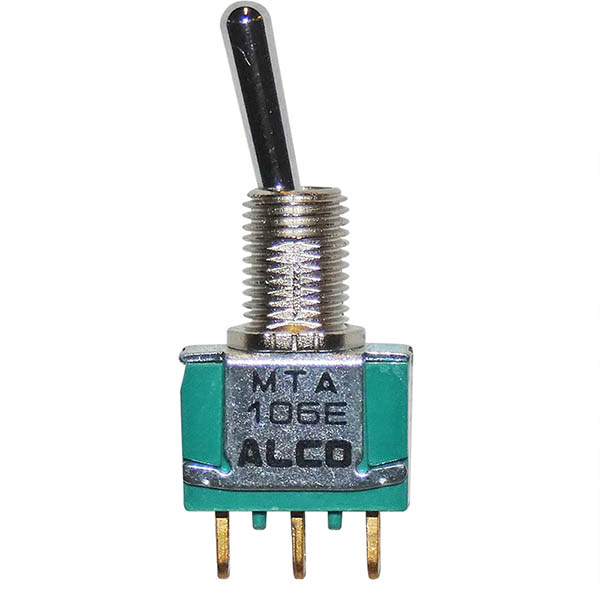

Ultra Miniature Toggle Switches

From $16.50 to $39.55
Alco Switch
Part No.
Micro Switch
Part No.
Contact Toggle Circuit* PN Price Buy
MTA-106D8A1011SPST01
11-04231
$16.50
Quantity
MTA-106E8A1021SPDT02
11-04232
$19.50
Quantity
MTA-106G8A1041SPDT04
11-04233
$19.65
Quantity
MTA-206N8A2011DPST01
11-04234
$37.50
Quantity
MTA-206P8A2021DPDT02
11-04235
$24.85
Quantity
MTA-206S8A2041DPDT04
11-04236
$29.65
Quantity
JMT-2268A2061DPST06
11-04207
$29.75
Quantity
MTA-306D8A30113PDT01
11-04237
$34.75
Quantity
MTA-406N8A40114PDT01
11-04238
$39.55
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Ultra-miniature switches are rated at 6 amps at 125V AC and 4 amps at 28V DC. Solid silver contacts. Terminals are gold flashed to inhibit oxidation and to provide easier soldering.

Case material is green diallyl phthalate resin. Bushing thread size: 1/4-40, usable in panel thickness up to 1/4". Micro Switch Co. have discontinued the manufacture of the 8A and 8H type switches, so switches by alternate manufacturers will be furnished. In most instances, Alco switches will be supplied. Switches furnished complete with locking ring and attaching hardware

*See Toggle Circuit Table

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Toggle Circuit Table

Toggle Circuit

Circuitry*
One Side Center Other Side
01 On None On
02 On Off On
04 (On) Off (On)
05 On Off (On)
06 On None (On)
*Use the "01" circuitry for On-Off switch. In hook-up, use center terminal and one side terminal. Leave other side terminal blank.

Lever/Circuit Relationship

LEVER/CIRCUIT RELATIONSHIP

The operating sequence above is repeated in multipole devices. Each pole has double-throw circuitry and consists of three terminals which exit at the bottom of the switch case. The keyway is a helpful reference when you are applying a switch with the momentary (ON) circuit at one of the extreme lever positions.
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

David S Verified Purchase

TE ALCOSWITCH DOUBLE POLE DOUBLE THROW MTA206S

August 7, 2021

Nice robust mini switch

George H Verified Purchase

TE TOGGLE SWITCH MTA206N

June 9, 2021

AS described. As always great service

Central A Verified Purchase

TE TOGGLE SWITCH MTA106D

May 29, 2021

AS described. As always great service

Central A Verified Purchase

TE TOGGLE SWITCH MTA206N

May 29, 2021

Used this as my off/enable swtich for the anonymous mode of my ads-b. Works great

Brian
April 30, 2020

Received the quantity I had ordered in 3 different shipments .

A.talebpour
September 10, 2020

What can I say, its a toggle switch. works good.

Melford H
May 17, 2019

Nice, well-made switch. I gave it four stars because what these really need is a backshell. Unused terminals create a potential short hazard if something conductive falls out of place behind the panel. Something as simple as a Mocap flexible vinyl cover with a hole for the wires to pass through would make these a five-star product.

Jim F
August 16, 2018

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: I just need a micro to switch between nav 1 and nav 2. I'm assuming I need the on/on, what's the difference in the only two you offer

The difference is the ability to turn both Nav's off. You do not want this feature to cause accidents so part number 11-04231 will be best for your situation.

Q: What are the switch case dimensions of part # 11-04231: Length, width, depth?

Approximate dimensions of case: 1/2" Length x 5/16" Width x 3/8" Height

Q: The circuitry shows on-off-on and on-none-on. What does the none mean. Im looking for a on-both-on switch.

None means that there is no position. For example, if the switch is on-none-on, it will have no center position. It toggles from on to on.

Q: What size wire terminals are used for these switches?

Per the manufacturer the size is .039 x .078

Q: Part number 11-04234 says DPST, looking at the spec for MTA206N it looks like it should be a DPDT?

This is a DPDT switch.

View in Catalog
