Kelly Aero Bendix Magneto Repair Kits S200

From $269.95 to $820.00
Repair Kit Type Magento PN Magneto Type Repair Kit PN Price Buy
Standard10-163005-1, 10-163005-2, 10-163005-3, 10-163005-4, 10-163005-5, 10-163005-7, 10-163005-10, 10-163005-11, 10-163015-1, 10-163015-2, 10-163015-3, 10-163015-4S4R(L) N-200*, S4R(L) N-201*
AB-200445-R
$335.00
Quantity
Standard10-163045-1, 10-163045-3, 10-163045-6, 10-163055-2S4LN-204, S4LN-205
AB-200485-R
$272.95
Quantity
Standard10-163045-2, 10-163045-4, 10-163045-7, 10-163055-1S4RN-204, S4RN-205
AB-200484-R
$272.95
Quantity
Standard10-163010-1, 10-163010-2, 10-163010-3, 10-163010-4, 10-163010-5, 10-163010-6, 10-163010-7, 10-163010-8, 10-163010-9, 10-163010-10, 10-163010-11, 10-163010-15, 10-163010-17, 10-163020-1, 10-163020-2, 10-163020-3, 10-163020-4, 10-163030-1, 10-163030-4S6R(L) N-200*, S6R(L) N-201*, S6R(L) N-204
AB-200645-R
$325.00
Quantity
Standard10-163050-1, 10-163050-2, 10-163050-3, 10-163050-5, 10-163050-9, 10-163060-2, 10-163070-1, 10-163070-3S6LN-204, S6RN-205, S6RN-206
AB-200685-R
$269.95
Quantity
Standard10-163050-6, 10-163050-7, 10-163050-8, 10-163060-1S6RN-204, S6RN-205
AB-200684-R
$275.00
Quantity
Deluxe10-163005-1, 10-163005-2, 10-163005-3, 10-163005-4, 10-163005-5, 10-163005-7, 10-163005-10, 10-163005-11, 10-163015-1, 10-163015-2, 10-163015-3, 10-163015-4S4R(L) N-200*, S4R(L) N-201*
AB-200445-D
$729.00
Quantity
Deluxe10-163045-1, 10-163045-3, 10-163045-6, 10-163055-2S4LN-204, S4RN-204, S4RN-205
AB-200485-D
$705.00
Quantity
Deluxe10-163045-2, 10-163045-4, 10-163045-7, 10-163055-1S4RN-204, S4RN-205
AB-200484-D
$672.00
Quantity
Deluxe10-163010-1, 10-163010-2, 10-163010-3, 10-163010-4, 10-163010-5, 10-163010-6, 10-163010-7, 10-163010-8, 10-163010-9, 10-163010-10, 10-163010-11, 10-163010-15, 10-163010-17, 10-163020-1, 10-163020-2, 10-163020-3, 10-163020-4, 10-163030-1, 10-163030-4S6R(L) N-200*, S6R(L) N-201*, S6R(L) N-204
AB-200645-D
$820.00
Quantity
Deluxe10-163050-1, 10-163050-2, 10-163050-3, 10-163050-5, 10-163050-9, 10-163060-2, 10-163070-1, 10-163070-3S6LN-204, S6RN-205, S6RN-206
AB-200685-D
$807.00
Quantity
Deluxe10-163050-6, 10-163050-7, 10-163050-8, 10-163060-1S6RN-204, S6RN-205
AB-200684-D
$773.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

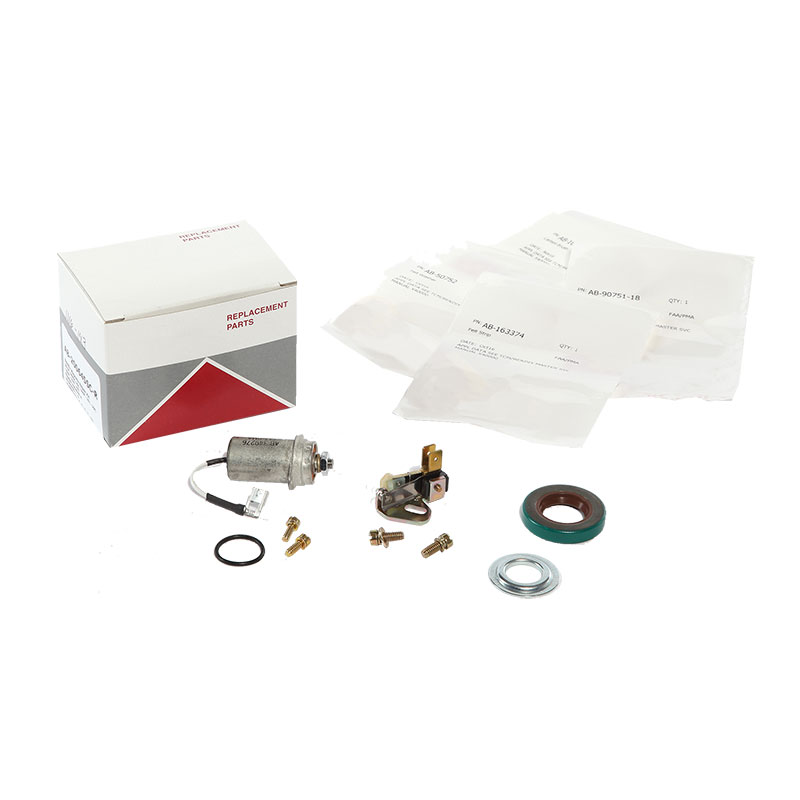

These magneto repair kits are designed to simplify the Bendix magneto overhaul process by providing all of the commonly needed overhaul parts in one convenient kit.

The Repair Kits contain the parts needed for minor repair such as a 500 hour inspection.

The Deluxe Repair Kits contain the parts needed for major repair such as a magneto overhaul.

These parts are highest quality direct replacement parts and are approved for installation and use on certificated aircraft. The Repair Kit and Deluxe Repair Kit for the Bendix -200, -201, and -202 series magnetos contain two sets of contact assembly kits. Some parts that may be need replacing during magneto overhaul are not included in these kits.

Repair Kit Deluxe Repair Kit
1-CONTACT ASSY. KIT* 1-CONTACT ASSY. KIT*
1-CAPACITOR 1-COIL KIT
2-BEARINGS  1-DIST. BLOCK KIT
1-OIL SEAL 1-GEAR KIT
1-OIL SLINGER 1-CAPACITOR
3-WOODRUFF KEYS 2-BEARINGS
1-COTTER PIN 1-OIL SEAL
1-CAM SCREW 1-OIL SLINGER
1-FELT WASHER 3-WOODRUFF KEYS
1-FELT STRIP 1-COTTER PIN
1-SNAP RING 1-CAM SCREW
1-CARBON BRUSH
**The component part kits contain installation hardware.


*The Repair Kit and Deluxe Repair Kit for the Bendix -200, -201, and -202 Series Magnetos contain two sets of Contact Assembly Kits.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is the kit is for both magnetos or just one?

This would be for one magneto.
