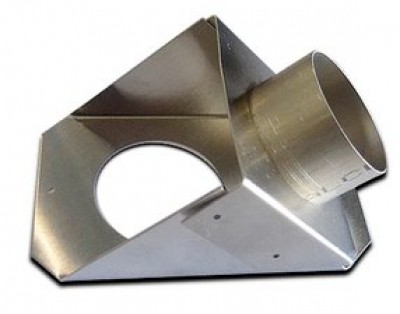

Homebuilders Cabin Heat Shuttle Kit

$78.85/Each
Quantity
Add to Wishlist
Part# 08-04460
MFR Model# VENT TG-10 KIT

Overview

Easily assembled and designed so that it can be modified for custom applications. Kit includes construction plans and directions along with installation hints for the popular Vans RV series of homebuilt aircraft. Controlled by ratchet type control cable such as ACS model A740. Order control cable separately.
Made in USA

California Prop 65 Warning Symbol

WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. www.P65Warnings.ca.gov

Reviews

Instructions not great, but if you have some fabricating experience youll make do. One issue that shouldve been a duh is that the rivets supplied are all flush, which is fine, but the supplied nutplates are not countersunk to accept the dimple that needs to be accomplished for a flush mounting surface. Can get by in a pinch with some modified dimple die and a squeezer. I decided to shift the collar upward such that the actuating flap was allowed a greater travel for more airflow. Then I laid a fillet of high temp silicone against the gap created by the shift. An improvement to the design/kit would be to have the actuating arm mounted on the forward side of the flap so that a second collar assembly could be mounted inside the cabin to distribute airflow as desired. All-in-all, not a bad solution for a budget. Can be modified to your purposes easily.

Reuben
May 16, 2019

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is the material aluminum or stainless steel and is the diverter door and hinge included?

Per the manufacturer: This is made of aluminum. This product comes with a flat door that is controlled by an actuator that is hinged together.
