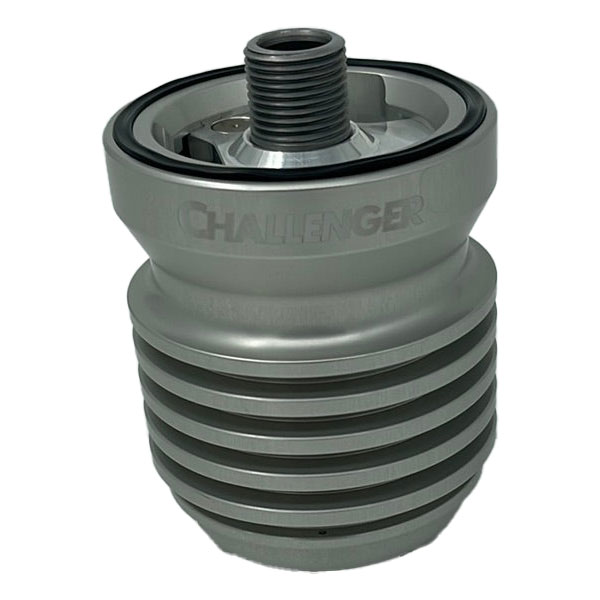

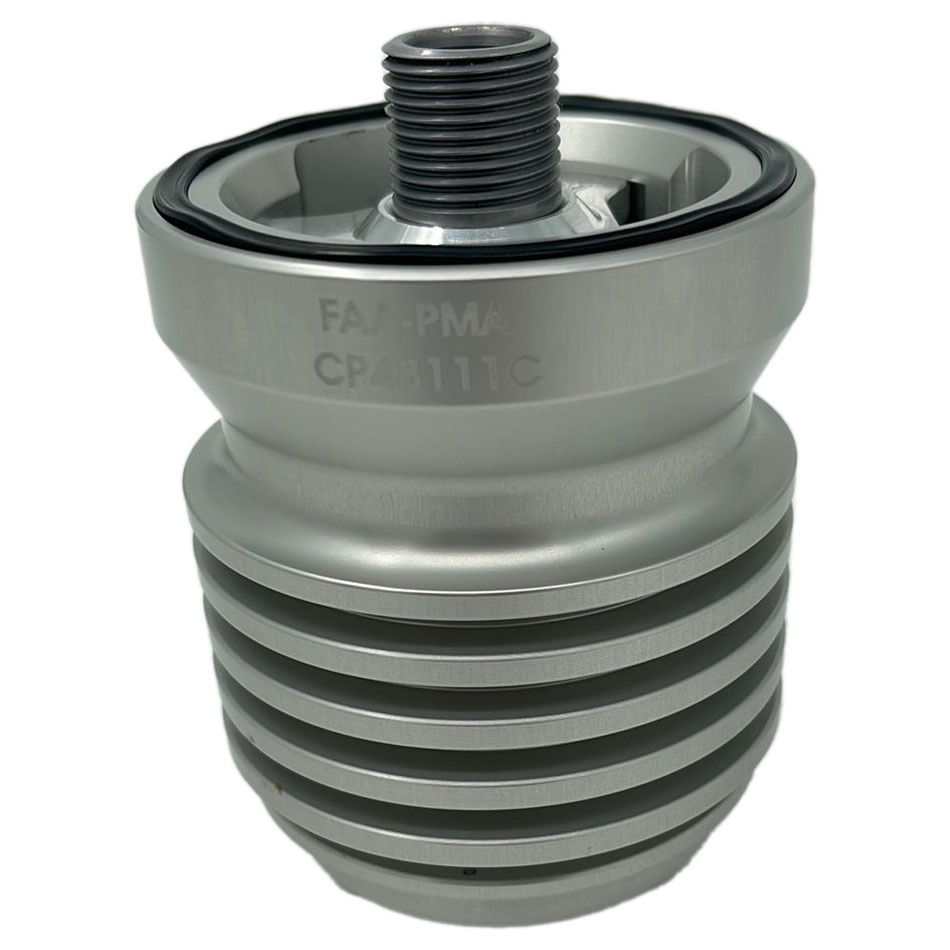

Challenger CP48111C Oil Filter

$345.00/Each
Part# 08-06022
MFR Model# CP48111C

Overview

The filter element is made from medical grade, type 304 stainless steel micronic filter cloth providing unmatched protection against oil contamination and resultant engine damage.

A rare earth magnet is installed in the top of the element for magnetic pre-filtering of the oil. The unique twist lock design allows for easy disassembly, inspection and cleaning. The quad-ring gasket doubles the seal between the filter and the engine . The filter housing is carved out of a solid piece of 6061 T6 billet aluminum with cooling fins, which not only looks good but aids in dissipating heat.


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Cleanable and Reusable
  • High Flow Rate
  • Unique Twist Lock Design
  • Exteriors Fins
  • Unaffected by Water, Heat, or Pressure
  • Safety Wire Attachments 360 degrees
  • Environmentally Friendly

Eligibility

  • Lycoming O-235, IO-320, SERIES LIO-320, AIO-320, AEIO-320, O-360, IO-360, AIO-360, HIO-360, LIO-360, TIO-360, LHIO-360, AEIO-360, IO-390, O-540, IO-540, HIO-540, TIO-540, AEIO-540, LTIO-540, TIO-541, IO-580, IO-720 SERIES
  • Replaces CH48111-1
