Challenger Stainless Steel Micronic Oil Filter For Rotax 912/914 Engines

$299.00/Each
Part# 08-07174
MFR Model# CP9124C

Overview

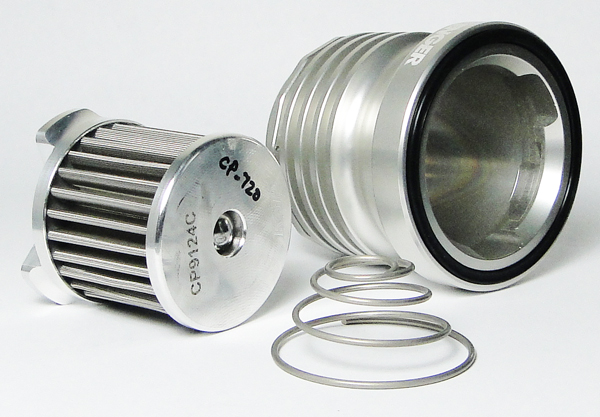

The filter element is made from medical grade, type 304 stainless steel micronic filter cloth providing unmatched protection against oil contamination and resultant engine damage.

A rare earth magnet is installed in the top of the element for magnetic pre-filtering of the oil. The unique twist lock design allows for easy disassembly, inspection and cleaning. The quad-ring gasket doubles the seal between the filter and the engine . The filter housing is carved out of a solid piece of 6061 T6 billet aluminum with cooling fins, which not only looks good but aids in dissipating heat.


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Cleanable and Reusable
  • High Flow Rate
  • Unique Twist Lock Design
  • Exteriors Fins
  • Unaffected by Water, Heat, or Pressure
  • Safety Wire Attachments 360 degrees
  • Environmentally Friendly
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Excellent product!, this filter will save you a lot of money in disposable filters, also my plane runs a little bit cooler, very good quality machinning and finish. This filter is washable and it also contains a magnetic plug to keep the oil free of metal particles. Yes the Rotax engine have his own magnetic plug but the magnet in this filter is stronger.

Juan M
December 8, 2017

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: How is this Challenger Stainless Steel Micronic Oil Filter for Rotax 912/914 Engines used and where is it installed? Is it a primary filter?

This Challenger oil filter replaces the standard oil filter and mounts in the original location. This filter has a series of stainless steel mesh filters and the unit is easily disassembled to be cleaned and reused.

Q: What are the overall dimensions of this unit?

Overall height is approximately 2-5/8". Average diameter is approximately 2-7/8".

Q: How many microns is the mesh filtration made from on this Challenger stainless steel micronic oil filter for Rotax 912/914?

Per the supplier: roughly 30 microns.

Q: Does the Challenger Stainless steel Micronic oil filter for Rotax have an internal check valve like the Rotax brand has?

Yes, this filter also has an internal check valve.

Q: Does this Challenger stainless steel micronic oil filter for Rotax have the same internal bypass pressure rating as the Rotax filter?

Yes, this filter has the same internal bypass pressure rating as the Rotax filter.
