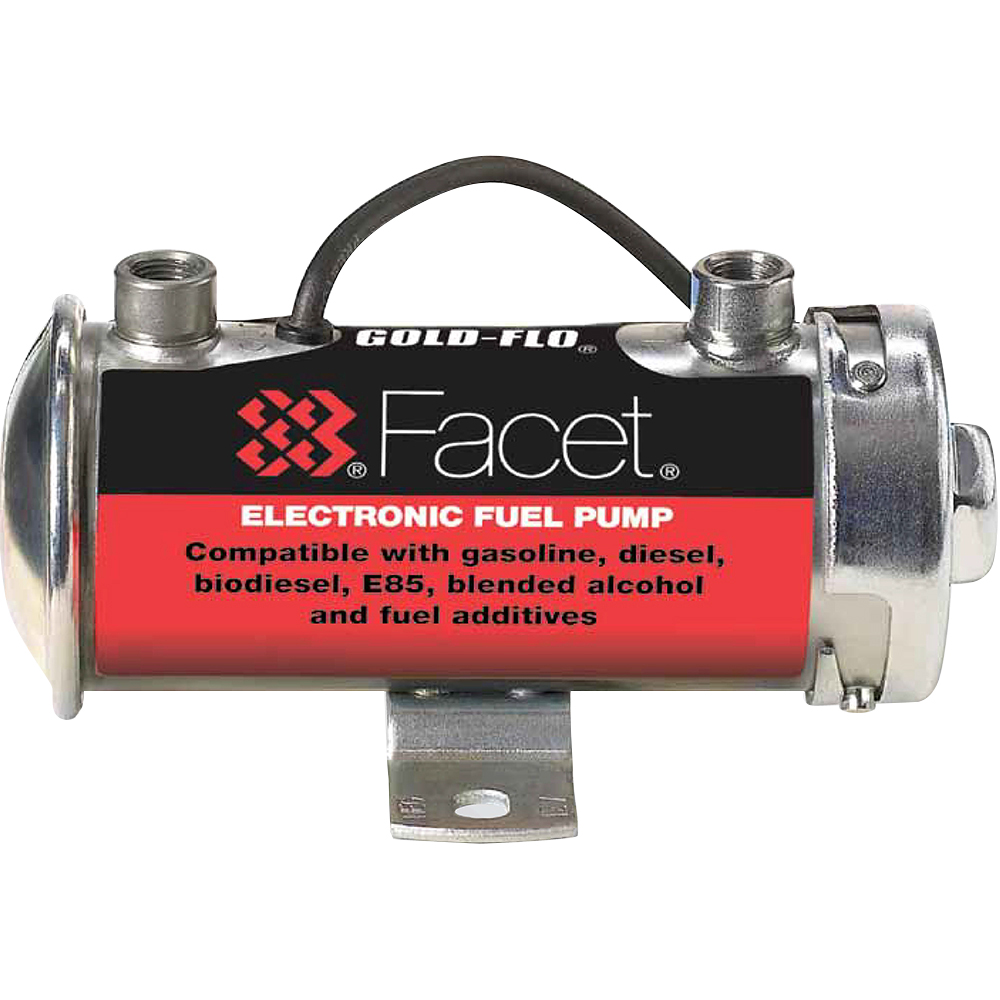

Facet Gold-Flo Interrupter Type Pumps

From $139.75 to $153.90
OEM PN Volts Part Number Price Buy
40007E12
05-10842
$145.75
Quantity
40131E12
480545
$142.95
Quantity
476088
24
476088
$139.75
Quantity
476087E12
05-10832
$144.75
Quantity
476459E 12
05-10833
$139.75
Quantity
477060E 12
05-10835
$142.85
Quantity
480534E12
05-00802
$153.90
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Note: Facet fuel pumps are not FAA approved and are not intended for aircraft use.

Fuel Compatibility:
All models of the Facet High Performance Gold-Flo Solid State Fuel Pumps are compatible with gasoline, diesel, biodiesel, blended alcohol fuels and fuel additives.

Reliability:
The new Gold-Flo Solid State Fuel Pump is an enhanced version of the Interrupter model. It has Solid State circuitry and will meet or exceed all performance specifications and is totally interchangeable. (These pumps have demonstrated an endurance life almost double that of the nearest competitor, according to test data).

Easy to Install-Easy to Service:
Two bolt mounting makes installations easy. Nothing to adjust. For best results, mount the pump close to the fuel tank and below the fuel level. The pump is self-priming to 24 inches vertical fuel lift. Vertical mounting is preferred to assure maintenance of rated pressures. The only service normally required is a simple cleaning of the filter and fuel inlet cavity.

Eliminates Vapor Lock:
When properly installed on most vehicles a constant, smooth, dependable supply of fuel under pressure is assured in the hottest weather or in high altitudes.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • 12 - 24 inches dry lift
  • 20 - 45 GPH
  • 1 - 8 PSI
  • Transient Protection - 24 volt only
  • State of the art Electronics
  • Sealed Electronics
  • Built in Anti-Siphon Valve (Positive shut-off)
  • UL Certified
  • VCA Certified
  • Complies to Mil-std-461D
  • Replaceable 74 micron filter
  • Built in magnet to collect metal particles for additional filtration
  • 1.6 amp average
  • Self Priming and Self Regulating
  • 32 ounces and 5 inches
  • Corrosion Resistant over 100 hours of salt spray
  • Operating Temperature Range: -40F to 180F

Specifications

PN OEM PN Volts PSI Max-Min GPH Fitting Size Lift Min. Dry Check Valve Positive Shut Off Valve
05-10842 40007E 12 5.5-4.0 36 1/4"-18 Int. 24" N N
480545 40131E 12 5.5-4.0 34 1/8"-27 Int. 24" N Y
476088 476088 24 5.0-4.0 32 1/8"-27 Int. 24" N N
480543 480543 12 8.0-6.0 45 1/4"-18 Ext. 24" N N
05-10832 476087E 12 5.5-4.0 36 1/8"-27 Int. 24" N N
05-10833 476459E 12 8.0-6.5 32 1/8"-27 Int. 24" N N
05-10835 477060E 12 4.0-2.75 34 1/8"-27 Int. 24" N N
478360 478360E 12 5.5-4.0 36 1/8"-27 Int. 24" N N
05-00802 480534E 12 8.0-6.0 45 1/4"-18 Int. 24" N N
05-01003 480564E 24 5.0-4.0 32 1/4"-18 Int. 24" N Y

Documents

  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Antonio J Verified Purchase

476087 Facet Gold-Flo Fuel Pump

August 7, 2024

Gary H Verified Purchase

477060 Facet Gold-Flo Fuel Pump

June 21, 2024

works great on my field approved electric fuel pump system for my Ercoup

Jd H Verified Purchase

476087 Facet Gold-Flo Fuel Pump

May 24, 2023

John T Verified Purchase

476087 Facet Gold-Flo Fuel Pump

March 9, 2023

High quality product ⭐️⭐️⭐️⭐️⭐️

Paul P Verified Purchase

476088E Facet Gold-Flo Fuel Pump 24V

November 30, 2022

Have not run it yet

John H Verified Purchase

40007 Facet Gold-Flo Fuel Pump

August 1, 2022

good product

Francis D Verified Purchase

40007 Facet Gold-Flo Fuel Pump

May 12, 2022

Monroe M Verified Purchase

476087 Facet Gold-Flo Fuel Pump

April 21, 2022

Facet name speaks for itself

Delbert W Verified Purchase

476088E Facet Gold-Flo Fuel Pump 24V

March 30, 2022

Product is exactly what we ordered thank you

Cynthia M Verified Purchase

476087 Facet Gold-Flo Fuel Pump

March 18, 2022

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: I need a # 476459. I noticed the # listed in the chart is 476459E. What does the E stand for?

The E stands for electronic. Both pumps will fit the same application.

Q: What gauge wire should be run to these pumps?

We can't list the size because it depends on the aircraft voltage and how long the wire is going to be to the power source/battery. The general recommendation is to ask the installer to refer to the FAA 43.13, Acceptable, Methods, and Practices chart 11-2 to select the appropriate wire.

Q: Are these pumps FAA/PMA approved?

No, these pumps are intended for experimental aircraft use only.

Q: What is the meaning of 'positive shut off valve' referenced in the specifications chart? Does this mean, that no fuel can flow through the pump when it is shut off?

Per the supplier: Yes, that is it exactly. Please bear in mind that only some models of the Facet Gold-Flo pumps have this positive shut off valve.

Q: I was told that the 05-10842 pump would allow fuel to gravity flow thru the pump backwards to fill an auxiliary fuel tank in a low position? (One fuel line in from the main tank, for filling, the same fuel line out for pumping back into the main tank for use.)

Per the supplier: This pump does not have a check valve or a positive shut-off so the fuel would continuously flow through when off.

Q: What is the weight of Facet pump # 05-10872 on it's own?

Approx 1.62 lb out of the box.

Q: Is the FACET 478360E gold-Flow FAA or EASA approved?

No, these do not hold any FAA Approval.

Q: I need a pump P/N 477003E, is this pump still existing or do I need another one?

We are not permitted to sell the 477003E pump. Please contact Flint Aero at 619-448-1551 to purchase this pump.

Q: This is about the Facet pump 476088 listed on your website. Is it actually a 476088E like all the others?

Yes, 476088 is 476088E.

Q: Facet fuel pump 476087E and 478360E (OEM PN) have same data in specifications chart. What is the difference between these fuel pumps?

They are the same, the manufacturer has to keep both of the part numbers for OE applications.
