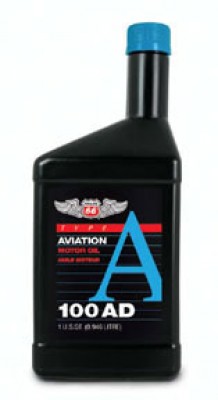

Phillips 66 Type A 100Ad Aviation Oil

Select Order Quantity:
Single QuartCase of 12 Quarts55 Gal. Drum
Quantity
Add to Wishlist

Overview

Phillips 66 Type A Aviation Oil is an ashless dispersant, single-grade engine oil specially formulated for use in aircraft piston engines. The ashless dispersant formulation helps minimize the formation of engine sludge, varnish, piston deposits and combustion chamber deposits, resulting in a much cleaner engine compared with the use of straight (nondispersant) mineral oils.

Type A Aviation Oil has many years of outstanding field performance in a wide variety of aviation applications. It is available in two grades, 100AD (SAE 50) and 120AD (SAE 60). Both grades are FAA approved.

Features

  • Ashless dispersant helps minimize engine sludge and varnish deposits for a cleaner engine
  • High film strength for protection against wear and piston scuffing
  • Protects against rust and corrosion
  • Formulated with the same high-quality base oils as used in Phillips 66 X/CŪ Aviation Oil

Requirements

  • Avco Lycoming Material Specification No. 301G
  • Pratt & Whitney Bulletin No. 1183 Rev. U
  • SAE Standard J1899
  • Teledyne Continental Material Specification MHS-24B
  • U.S. Military Specification MIL-L-22851D (obsolete) for additive treatment

Applications

  • Opposed piston aircraft engines that require an SAE 50 or Commercial Grade 100 engine oil (Type A 100AD)
  • Radial piston aircraft engines that require an SAE 60 or Commercial Grade 120 engine oil (Type A 120AD)
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Tom N Verified Purchase

PHILLIPS 66 TYPE A AVIATION OIL 100AD 12QT CASE

March 23, 2022

Great product got it when I needed

Roger S Verified Purchase

PHILLIPS 66 TYPE A AVIATION OIL 100AD 12QT CASE

August 16, 2021

Good oil in a bottle that holds its own upside down into the aircrafts oil filler tube. Good luck trying this with Aeroshells new oil bottles.

98x
August 19, 2020

Phillips 66 oil so far seems to be working well in my Pacers O-290D2 Lycoming. It is a couple bucks cheaper a quart then Aeroshell as well.

David C
July 17, 2017

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: I am looking for an alternative to Aeroshell W100. Is the Phillips 66 Type A 100AD it?

Yes, part # 08-00882 100AD oil will work instead of using W100.
