| Aircraft Make & Model | Weldon Part No. | OEM Part No. | Description | Part Number | Price | Buy |
|---|---|---|---|---|---|---|
| Beechcraft (Textron Av) A36 (S/N E-1946, E-2104, E-2111 thru E-3629, E-3631 thru E-3635, G36 (S/N E-3630, E-3636 and after) | 18053-2B | 4613-00-5, 4613-00-3NV, 4613-00-3 | Fuel Boost | 08-17081 | $1407.00 | |
| Beechcraft (Textron Av) B55 (S/N TC-1608 and after), E55 (S/N TE-938, TE-943 and after), 58 (S/N TH1 through TH-2124), G58 (S/N TH-2125 and after) | XC18054-2B8 | 4404-00-7NV | Fuel Boost | 08-17082 | $1408.00 | |
| Beechcraft (Textron Av) D95A, E95, 95-55, 95-A55 | 18026-B | 4140-00 / 4140- 00NV | Fuel Boost | 08-17188 | $1249.00 | |
| Casa | 4049-A | AC520068A | Prop Unfeathering | 08-10717 | $2346.00 | |
| Casa | C4033-E | AC520068A | Prop Unfeathering | 08-10718 | $2303.00 | |
| Cessna (FR172E, FR172G, FR172H, FR172J, FR172K up to S/N FR17200620, R172K S/N R1722000- R1722724, 180F, 180G, 180H, 180J, 185, 185A, 185B, 185C, 185D, 185E, A185E, A185F S/N 18502091- 18503458, 188, A188, 188A, A188A, 188B, A188B , 206, 206H, P206, P206A, P206B, P206C, P206D, P206E, T206H, TP206A, TP206B, TP206C, TP206D, TP206E, TU206A, TU206B, TU206C, TU206D, TU206E, TU206F, TU206G, U206A, U206B, U206C, U206D, U206E, U206F, U206G, 207, T207, 207A/T207A Up to S/N 20700414, 210-5, 210-5A, 210, 210A, 210B. 210C, 210D, 210E, 210F, 210G, 210H, T210F, T210G, T210H) (USAF R172E (USAF T-41C), R172G (USAF T-41C) | 18000-A | C291504-0101 | Fuel Boost | 08-07082 | $849.00 | |
| Cessna/Columbia LC40, LC-41, LC42 (14 VDC Only) | 18055-2A8 | 5173-00-3 | Fuel Boost | 08-17190 | $1407.00 | |
| Cessna/Columbia T240, LC41, LC42 (28 VDC Only) | 18055-2B8 | 5544-00-1 | Fuel Boost | 08-17191 | $1407.00 | |
| Cessna 172R, 172S, 182S/T, T182T | 18002-B8 | 5100-00-4 | Fuel Boost | 08-10719 | $1259.00 | |
| Cessna FR172K (S/N FR17200621 & Up), R172K (S/N 1722725 & Up), T182 (S/N 18267716 and up ) , TR182 (S/N R18200584 and up), 177RG (S/N 177RG1267 thr 177RG1366), A185F (S/N 18503459 & Up), 188, A188, 188A, A188A, 188B, A188B, 206, 206H, P206, P206A, P206B, P206C, P206D, P206E, T206H, TP206A, TP206B, TP206C, TP206D, TP206E, TU206A, TU206B, TU206C, TU206D, TU206E, TU206F, TU206G, U206A, U206B, U206C, U206D, U206E, U206F, U206G, 207/T207 S/N 20700228 & Up, 207A, T207A, 210H, 210J, 210K. 210L, 210M, 210N, 210R, T210H, T210J, T210K, T210L, T210M, T210N, T210R, P210N, P210R, 337E, 337F, 337G, 337H,, F337E, F337F, FT337E, FT337F, FT337GP, F337G, F337H, P337H,T337E, T337F, T337G, T337H | XC18000-B | C291504-0201, C291504-0202 | Fuel Boost | 08-16345 | $1328.00 | |
| Cessna 172Q (S/N 17275869 thru 17276516), 172RG (S/N 172RG0891 and up), R182 (S/N R18201629 and up) | XC18025-B | C291504-0203, C291504-0204 | Fuel Boost | 08-16346 | $1328.00 | |
| Cessna 210N, T210N, 210R, T210R, P210N (S/N P21000761 thru P21000834), P210R | 18000-B8 | C291504-0205 | Fuel Boost | 08-16347 | $1295.00 | |
| Cessna 182 | A8160-D | A8160-D | Fuel Boost | 08-10720 | $1289.00 | |
| Cessna 206H | A10056-B | A10056-B | Fuel Boost | 08-10721 | $1302.00 | |
| Cessna 310, 320, 340 & 400 Series | 18013-B | 4140-00-153 | Fuel Boost | 08-10722 | $1259.00 | |
| Cessna 340A, 414, 421B | 8150-B | 8150-B | Fuel Transfer | 08-10723 | $1297.00 | |
| Cessna Single-Engine & 337 Aircraft | 18000-B | C291504-0201 | Fuel Boost | 08-07083 | $849.00 | |
| Cessna T182 | A8185-B | A8185-B | Fuel Boost | 08-10725 | $1303.00 | |
| Cessna T206H | A10055-B | A10055-B | Fuel Boost | 08-10726 | $1302.00 | |
| Cirrus SR20, SR22 | 18050-2B8 | -- | Fuel Boost | 08-16348 | $1489.00 | |
| CPAC (Commander) 112, 112B | A8120-C | A8120-C | Fuel Boost | 08-10727 | $1213.00 | |
| Daher Socata TBM 700 | 2022-B | 6097727225 | Fuel Boost | 08-10728 | $2346.00 | |
| Diamond DA-40, DA-42 | 18002-B | 18002-B | Fuel Boost/Transfer | 08-10729 | $849.00 | |
| Diamond DA20-C1 (S/N 0002 and up) | 18052-2A | -- | Fuel Boost | 08-16349 | $1389.00 | |
| Enstrom F28-A, 280 | A8110-G | A8110-G | Fuel Boost | 08-10730 | $1202.00 | |
| Enstrom F-28C, 280C, F-28F, 280F, 280FX | A10019-E | A10019-E | Fuel Boost | 08-10732 | $2303.00 | |
| Gippsland GA8 AirVan | 8172-A | 8172-A | Fuel Boost | 08-10733 | $1300.00 | |
| Gippsland GA8 AirVan | A8172-A | A8172-A | Fuel Boost | 08-10734 | $1300.00 | |
| Lake (Revo Inc.) Mooney M20E, M20F, M20J S/N thru 24-2999 Mooney M20J S/N thru 24-2999, M20K S/N thru 25-0999 | 18020-A | 18020-A | Fuel Boost | 05-11890 | $1259.00 | |
| Mooney M20J (SN 24-0001 thru 24-2999) | A8163-A | A8163-A | Fuel Boost | 07-00785 | $1245.00 | |
| Mooney M20J (SN 24-3000 and up) | A8163-B | A8163-B | Fuel Boost | 08-10735 | $1301.00 | |
| Mooney M20K Serial #25-001 to 25-0999 | 10054-A | 10054-A | Fuel Boost | 08-10736 | $1259.00 | |
| Mooney M20K Serial #25-1000 & up | 10054-B | 10054-B | Fuel Boost | 08-10737 | $1259.00 | |
| Mooney M20M | A10051-D | A10051-D | Fuel Boost | 08-10738 | $1301.00 | |
| Mooney M20R, M205 | A8152-B | A8152-B | Fuel Boost | 08-10739 | $1301.00 | |
| Mooney M20R, M20TN, M20U, M20V | 18057-2B8 | 5791-00-1 | Fuel Boost | 08-17192 | $1407.00 | |
| Moravan (Zin Z-143L) | A8150-B1 | A8150-B1 | Fuel Boost | 08-10740 | $1301.00 | |
| Moravan (Zin Z-242L) | D8100-F | D8100-F | Fuel Boost | 08-10741 | $1211.00 | |
| PA-23-250, PA-23-235 | B8001-G | 33959-3 | Fuel Boost | 08-10742 | $1213.00 | |
| PA-23-250, PA-23-236, PA-23-160 | B8001-H | 33959-2 | Fuel Boost | 08-10743 | $1213.00 | |
| PA-28R-180, PA-28R-200, PA28R-201, PA28R-201T, PA-28R-201, PA-28RT-201T | 8120-G | 481-780 | Fuel Boost | 08-08120 | $1176.00 | |
| PA-28R-201 | B8120-G | 461-758 | Fuel Boost | 08-10744 | $1199.00 | |
| PA-30, PA-39 | C8100-J | 763-518 | Fuel Boost | 08-10745 | $1976.00 | |
| PA-31-325, PA-31-300 | A10014-D44 | 42113-6 | Fuel Boost | 08-10746 | $2303.00 | |
| PA-31-350 | A10014-D | 53050-2 | Fuel Boost | 08-10747 | $2303.00 | |
| PA-31-350, T-1020, PA-31-325, PA-31-300 | A10014-D40 | 42113-5 | Fuel Boost | 08-10748 | $2303.00 | |
| PA-31P | B10007-D | 48885-2 | Fuel Boost | 08-10749 | $2303.00 | |
| PA-32-301T, PA32R-301T, PA-32RT-300T | 10080-B | 481-807 | Fuel Boost | 08-10750 | $1976.00 | |
| PA-32R-301T Serial #’s 3257001 & up | 10080-D | 461-750 | Fuel Boost | 08-10751 | $1976.00 | |
| Pilatus B/N BN2A-2, 2A-3, BN2A-20, 21, BN2B-20, 21 | A10050-D | 354301024 | Fuel Boost | 08-10752 | $1301.00 | |
| Robinson R44 | 19001-B | 19001-B | Fuel Boost | 08-10753 | $1259.00 | |
| ZLT Zeppelin LZ N07-100, LZ N07-101 | 18033-B8 | KG 02 000 / 0723-000 | Fuel Boost | 08-17189 | $1249.00 |
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
|

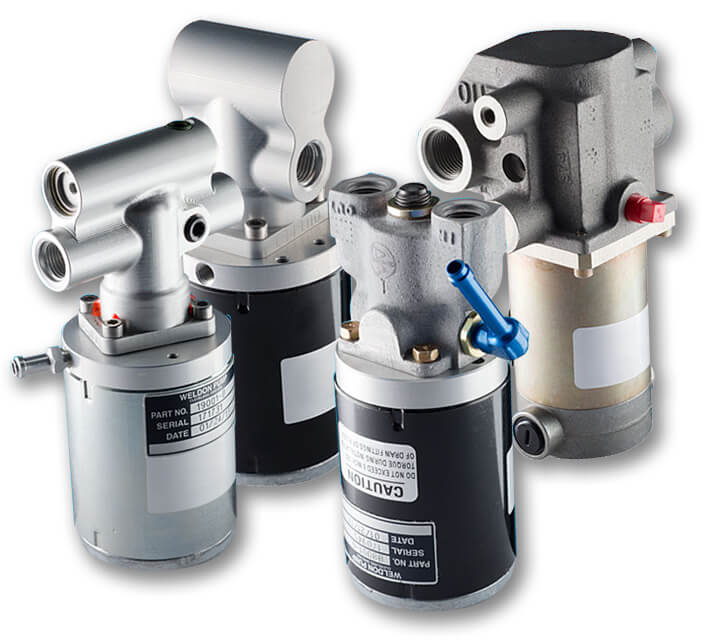

Weldon’s strong commitment to excellence with Made-in-America quality has evolved into a comprehensive line of fuel and hydraulic pumps for general aviation, military aircraft, ground support vehicles and UAVs.
Attention: A core charge will apply for these New Pumps Weldon Application Guide |
Reviews
Perfect replacement for the Dukes that Cessna originally used.
Lee M
March 20, 2017
If ordering the 8100-J pump to replace a 8100 on PA-30 (Twin Comanche), you will also need bracket kit CJ33963-2, available from Quality Aircraft Accessories (QAA.com). Took a few days to figure this out.
Ray E
May 6, 2019
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Q: Regarding Part # 08-10750 in the above list: Is the 10080-B fuel pump overhauled or new? Does it require a core exchange?
Yes, there is a core charge associated with he pump 08-10750, 10080-B. The current core charge will be added to the shopping cart along with the unit.
Q: Would a core charge apply to the C8100-J pump?
Yes, the C8100-J Weldon pump (part # 08-10745) has a core charge / core exchange associated with this purchase.
Q: Is the 8120-G new or rebuilt and are they 14Volt or 28v?
Weldon 8120-G, part # 08-08120, is a new pump. It is 14 volt.
Q: Regarding P/N 18000-B (08-07083): Is the price listed in new condition or exchange?
Part # 08-07083 is priced and sold in new condition.
Q: Why do new parts have core charges? Normally only overhauled parts have core charges.
The core charges are assigned by the manufacturer. We, as a distributor, do not decide which items to assign core charges to. Weldon has assigned a core charge / exchange on these pumps, so we set up the program for our sales.
Q: Is the Weldon part # A8163-B For a 28V system?
Yes that is a 28v pump.
