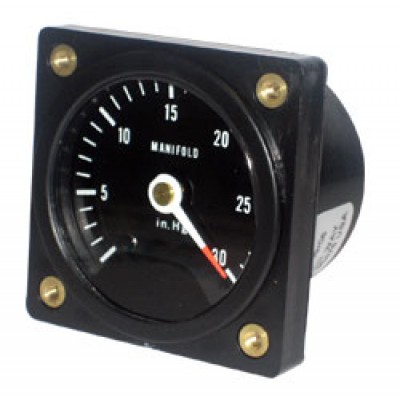

Manifold Pressure 2-1/4", square, 0-30 in HG, pointer set at 29 IN HG, full sweep meter, Not altitude Compensated, w/ 220-9 Hose = 7' & two fittings 203-17 & 203-21.
Made in USA
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
This instrument did not work at all for me, as it does not read actual manifold pressure, but only the difference between ambient pressure and manifold pressure. Before I installed it I took it with me on a flight in a pressurized aircraft. At 8000 cabin altitude it was reading (you guessed it) 30 of manifold pressure. The case is not sealed at all, and therefore all it is capable of measuring is differential.
WESTACH 2-1/4 SQUARE MANIFOLD PRESS 0-30 IN HG 2A4-6 NON TSO
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
It is the diameter of the round face of the instrument.
The outside dimensions are 2.25" L by 2.25" W.
It uses a vacuum hose.
The diameter of the face is 2-1/4". The height and width of the gauge is 2-13/32". Yes, it fits a standard 2-1/4 instrument hole.
