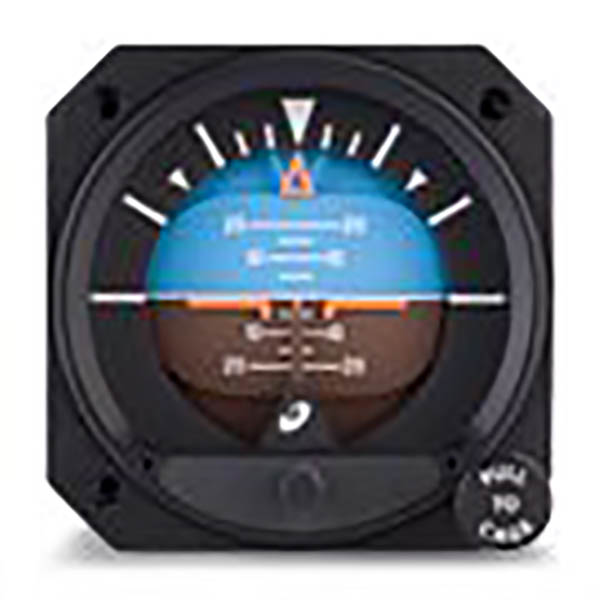

Mid-Continent SAM Attitude Indicator 4300-312

0 Reviews 0 Answered Questions
$4584.00/Each
Quantity
Add to Wishlist
Part# 10-07603
MFR Model# 4300-312

Overview

Note: Specify tilt and lighting voltage

Attitude Indicator Electric, 10–32 VDC, Fixed roll dial, Traditional symbolic aircraft

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • A safe alternative to unreliable vacuum systems
  • Ideal primary or standby artificial horizon in fixed-wing and helicopter applications
  • Single 4-pin connector installation
  • 7,500 hours MTBF — more than double the life of most electric gyros
  • 10–32 volt DC operation for use in both 14 and 28 volt aircraft
  • Field-replaceable lighting
  • Anti-reflective glass enhances visibility and reduces pilot fatigue
  • FAA TSO-C4c certified and RTCA DO-160D qualified
  • DO-160 qualified for helicopter vibration
  • Designed and built in Wichita, Kansas, USA
  • One-year limited warranty

Specifications

  • MTBF: 7,500 Hours
  • Certification:
  • FAA TSO-C4c
  • RTCA/DO-160D
  • Power Input:
  • 10–32 VDC:
  • 1400 mA start, 600 mA max at 14 VDC input
  • 700 mA start, 300 mA max at 28 VDC input
  • Annunciators: STBY PWR (standby power mode)
  • TEST (battery test — red/green)
  • Lighting: 5, 14 or 28 VDC Incandescent
  • Field-replaceable tray wired through main connector
  • Glass: Special HEA anti-reflective coating
  • Weight: 2.7 lbs.
  • Length: 6.6 inches
  • Mounting:: Rear mount in standard 3 1/8” round panel cutout
  • Temperature Range: –30°C to +70°C (–22°F to +158°F)
  • Mating Connector: Mid-Continent P/N 9015514 (MS3116F8–4S)
  • Panel Tilt: Aircraft specific — calibrated at factory
  • Specify exact tilt between 0° to 20° when ordering
  • Dial:
  • Fixed roll dial, traditional symbolic airplane
