Radiant Multi Function Instrument UMFI-22-Gen 2

Select Size:
2 1/43 1/8
Quantity
Add to Wishlist

Overview

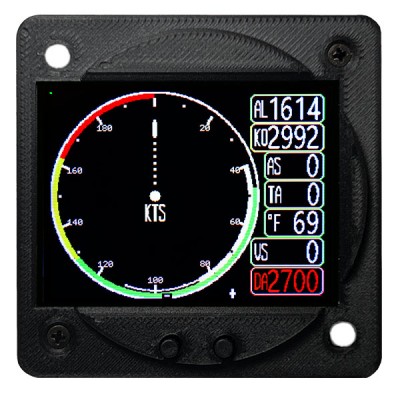

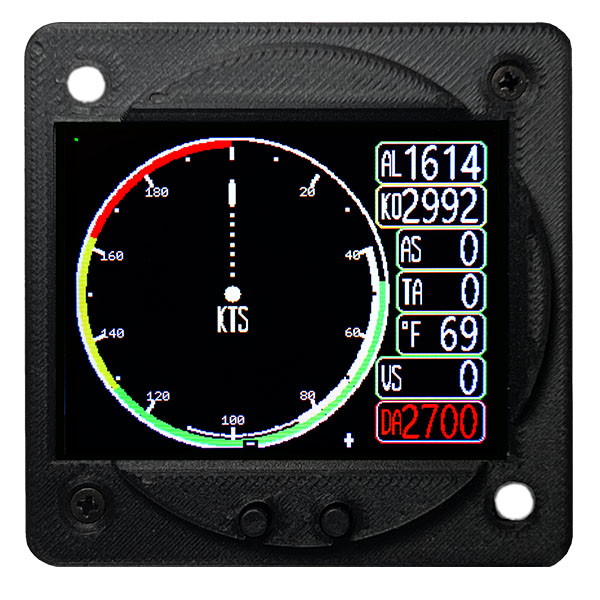

Radiant Multi Function Instrument UMFI- Gen 2

The GEN-2 Universal Multi-Function Instrument features Airspeed, adjustable Altimeter, True Airspeed. The instrument also provides readings for Outside Air Temperature (OAT) and Density Altitude with a brilliant and clear, deep black, high-contrast display.

The GEN-2 line of Radiant Technology instruments stepped up RADIANT Technology's offering to the light aircraft instrumentation. GEN-2 brings pilots familiar representations of common flight instruments and significant digital enhancements, including True Airspeed, Density Altitude, VSI, temperature, and more.

The GEN-2 Multi-Function Instrument benefits from these advancements and offers an exciting upgrade for previous customers and an excellent addition for new customers. Excellent as a primary instrument or as a backup.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Indicated Airspeed
  • Adjustable Altimeter with user calibration
  • True Airspeed
  • Density Altitude
  • VSI
  • Temperature with traditional dial representations along with digital values.
  • The UMFI-22-GEN2 unit also provides readings for Outside Air temperature (OAT) and Density Altitude with a brilliant and clear, deep black, high contrast display.

Benefits

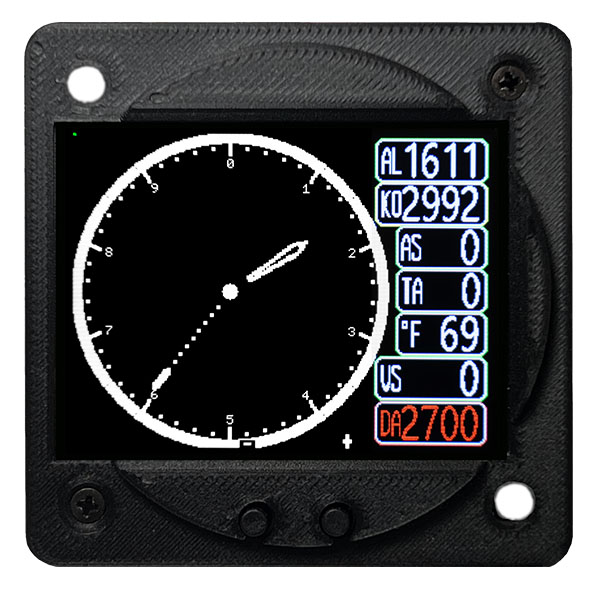

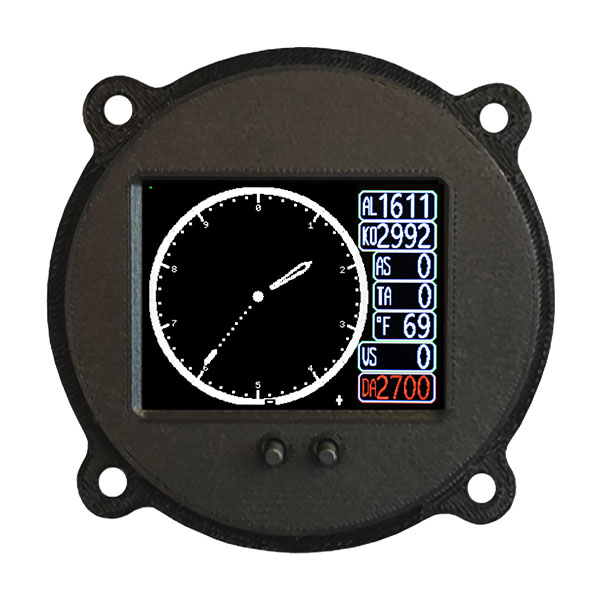

  • Altimeter with Standard Dial and Digital Value, up to 20K feet

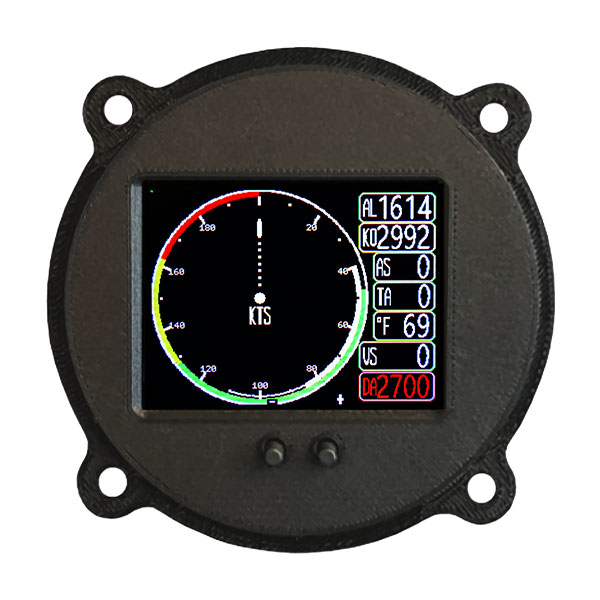

  • Airspeed with Standard Dial and Digital Value, Knots or MPH

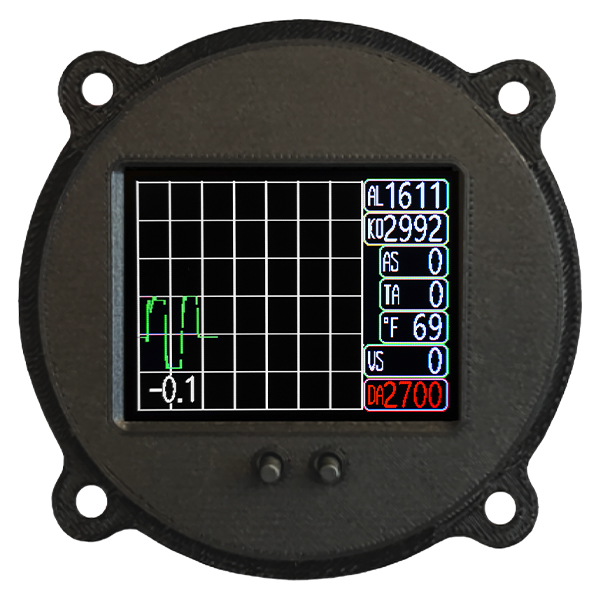

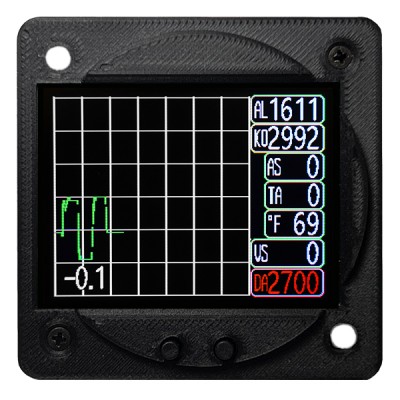

  • Digital VSI to +/- 1999 FPM
  • External Temperature Probe included
  • Built-in Airspeed Computer provides True Airspeed
  • Density Altitude display
  • Celsius or Fahrenheit display, you pick
  • Easy Installation (add power, ground, connect pitot and static source via barbed tubing adapters)
  • Install into standard instrument hole

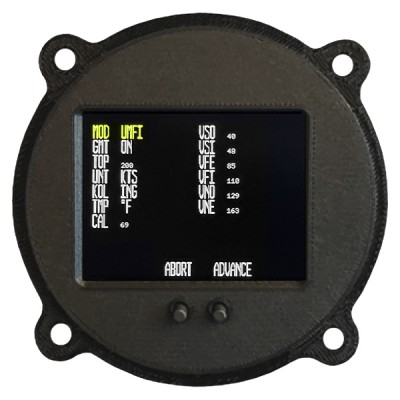

  • ASI Scale, you pick: 100 or 200
  • Knots vs MPH, you pick

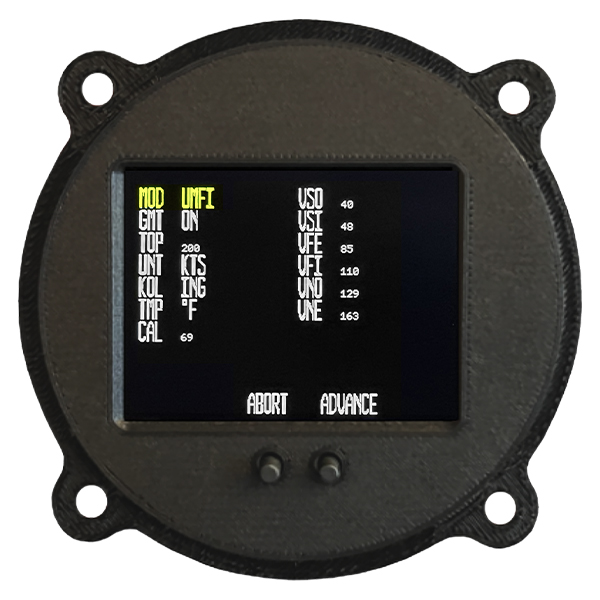

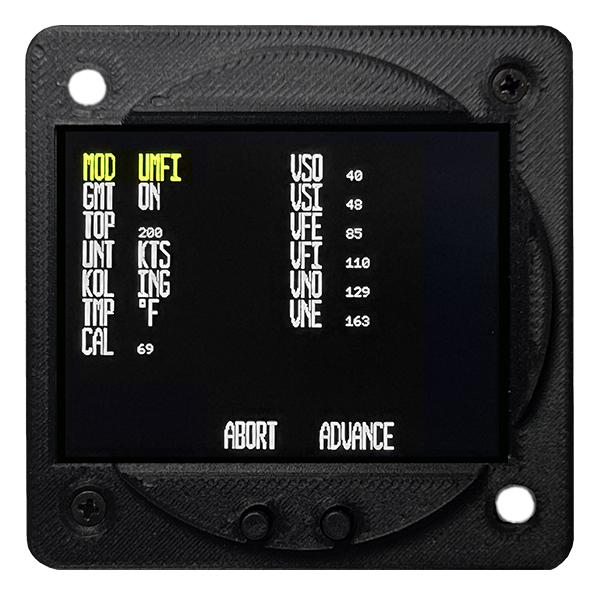

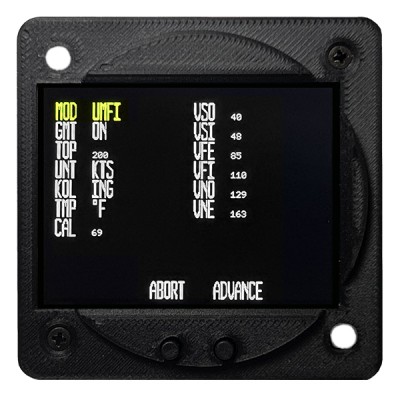

  • Green Airspeed Range, set it to what you want
  • Yellow Airspeed Range, set it to what you want
  • Red Airspeed Range, set it to what you want
  • Altimeter may be recalibrated in 10 foot increments

Documents

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this Radiant altimeter divided in two? Can I separate them and place one above the other?

No this cannot be split apart, but they can flip flop back and forth.

Q: I am confused. Other Radiant instruments on you website indicate their mounting diameter is 2.25. The UMFI-22 only says standard instrument hole which I would assume is 3-1/8. What is the diameter of the UMFI-22?

This gauge is a 2-1/4 mounting hole size which is also standard in instrumentation. Typically instruments will be either 3-1/8 or 2-1/4.

Q: Is the Radiant Multifunction 2 screens side by side or is it one screen with 2 selectable displays?

Per Radiant: "It is one screen and you can advance between the displays."

Q: Is there a manual available? Thanks

Yes, we have added the manual to the web page for download.
