Overview

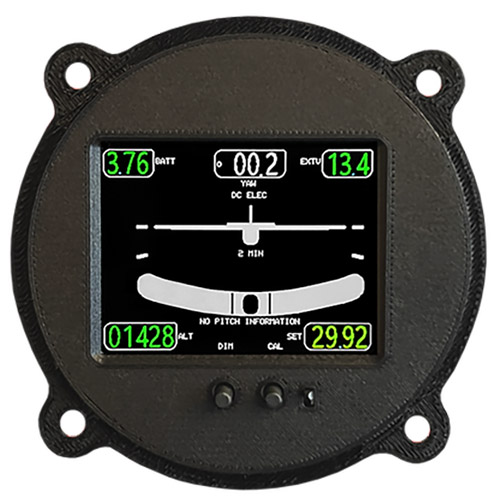

**NOT FAA APPROVED - FOR USE IN EXPERIMENTAL AIRCRAFT ONLY** This new 3 1/8" Panel Mount Turn Coordinator offers an extraordinarily accurate altimeter and internal battery backup. It will run even when ship power is down, providing excellent turn and altitude indications. This instrument helps pilots maintain a level plane via turn coordination and provides feedback on altitude via a digital altimeter, offering impressive backup instrumentation for an introductory price of $199.95. We will raise the price to the ongoing permanent price of $299.95 at the end of August. This is a great value for home builders and is an excellent choice to be installed beside far more expensive, high-dollar glass instruments as a backup. This product is designed for use in experimental, ultralight, and Light Sport aircraft (with manufacturer approval).

	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

• Provides the same information that a vacuum or high end electric gyro would provide, while utilizing a solid-state sensor.
• Solid state design allows for near immediate recovery from events that would tumble older vacuum or electric gyros.
• Inclinometer provides the same information that a classic bubble level would provide.
• Altimeter provides settable altitude information via a standard Kollsman window. If calibrated, we have demonstrated that our technology can meet the applicable portion of the TSO for altitude accuracy.
• Altimeter works from 0 to 20,000 feet.
• Automatically charges its internal battery from ship power (+12v).
• Provides continuous feedback as to the state of charge of the internal battery and will run for over 3 hours in the loss of ship power.
• Displays external power, with color coding for power dropping below +12V.
• Designed for a standard 3 1/8” panel cutout.
• Also provides digital yaw.
• Substantially improved boot and warmup time.
• Improved aesthetics and font representation.
• Ultra brilliant, high contrast display (dimmable for dark cabin use).
• Independent power switch.
