Static Port Aluminum 15171

$21.50/Each
Quantity
Add to Wishlist
Part# 10-00660
MFR Model# 15176

Overview

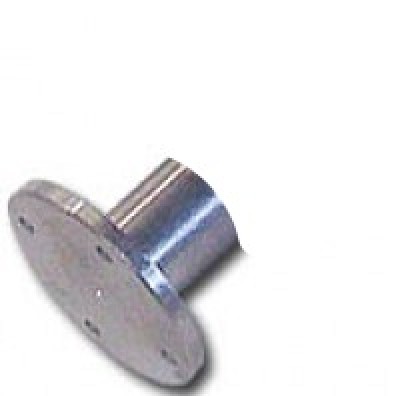

Aluminum static ports mount 1-1/4" base OD from outside of fuselage through 5/16" ID hole. Secure with 4 countersunk 3/32" rivets to skin with pal nut & lock washer on inside.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

Was accurate dimensions as advertised and worked fine.

Christopher H Verified Purchase

Static Port #15176

November 3, 2021

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What type / grade of aluminum is this ? Need to know as we need to anodize this. Please advise.

6061-T6 aluminum

Q: Is the Static Port Aluminum 15171 FAA Approved?

No, these do not have FAA Approval on their own.

Q: What is the spacing of the mounting holes?

Center hole to center hole is 5/8 inch.

Q: Is there a female NPT port on the back side? If so, what size NPT?

10-00660 has an 1/8" NPT female port.
