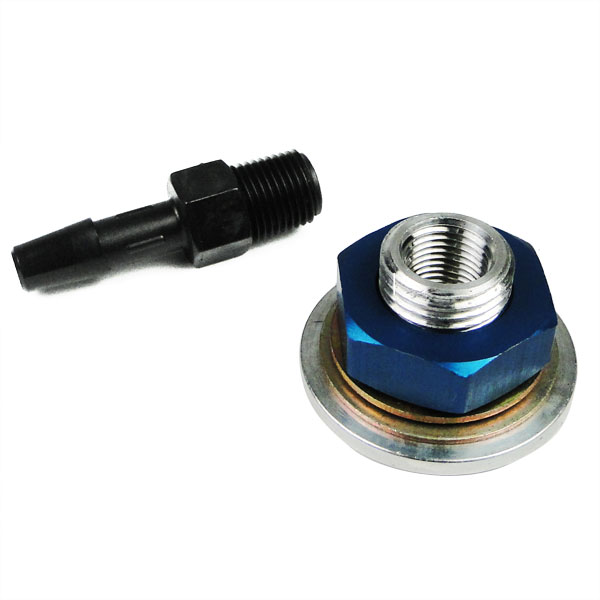

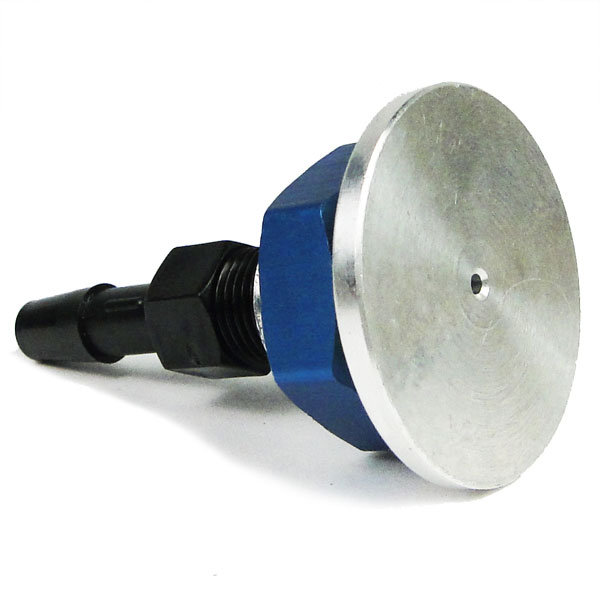

|Aluminum static ports mount from outside of fuselage through 9/16" dia. hole. Secure with pal nut & lock washer on inside. Includes 0700-153 polyethylene fitting.|
Good product. Works as it should.
STATIC PORT KIT 15165
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The 9/16" pal nut and lock washer are included with this static port kit.
The fitting for the port requires 1/4"I.D. hose.
No, these are not certified. They are for experimental use only.
You would need 1/4" I.D. rubber or polyurethane tubing. We have a few types to choose from, example 05-00944, 0500-071, etc...
Approx. .125" is the max material thickness.
The hose fitting has 1/8th npt thread and it is used with a 1/4" hose. You could order part number 710-153 in addition, that is a 90 degree bib that will work with this unit.
The od is 1.25".
It is .100 thick and that is the total protruding area. The edges are finished and machined but they are not tapered.
