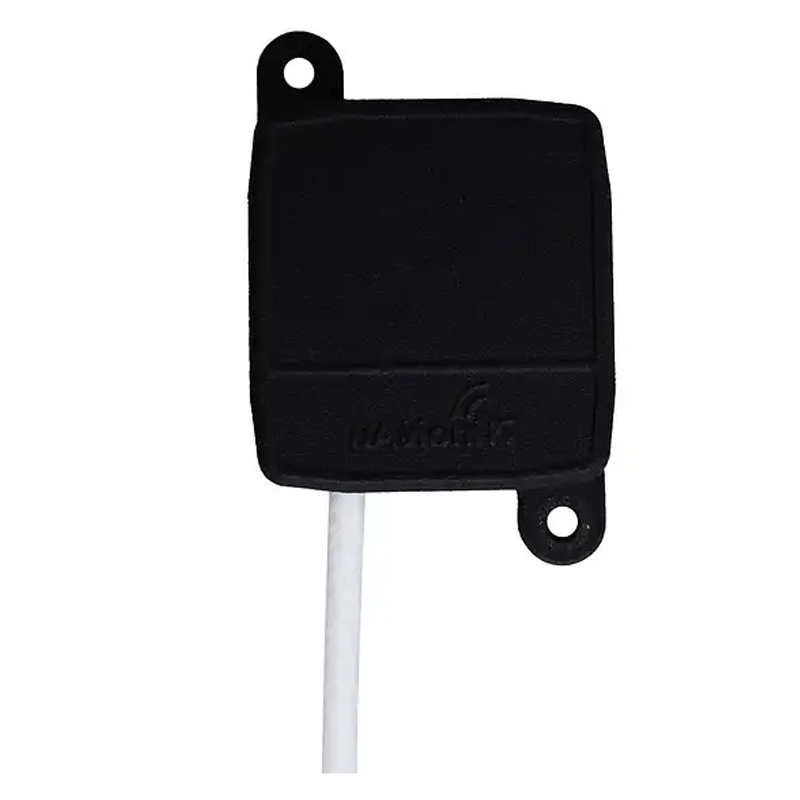

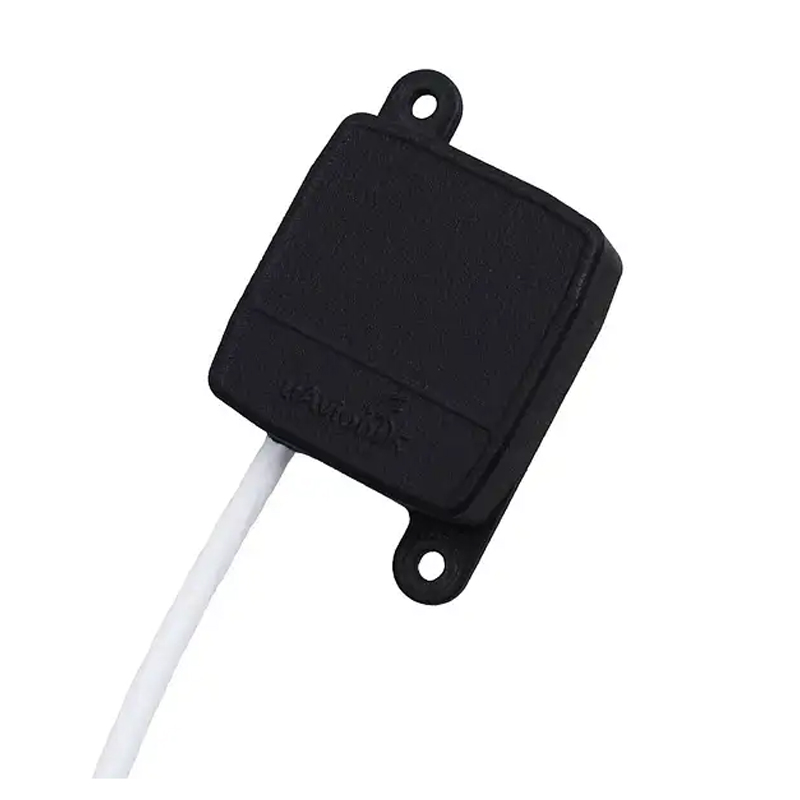

UAvionix AV-Mag External Magnetometer for AV-30 Experimental

$298.95/Each
Quantity
Add to Wishlist
Part# 11-19214
MFR Model# UAX-90092-01

Overview

AV-Mag external magnetometer is a 3-axis electronic compass. AV-Mag precisely measures the earth’s magnetic field and aids the AV-30 directional heading measurement, improving long-term accuracy and consistency.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

Width: 1.49 Inches
Height: 0.67 Inches
Depth: 2.38 Inches
Weight: 1.4 oz (40.0 grams)

Reviews

Easy to install, a must for the AV30.

Mike W Verified Purchase

uAvionix Av-Mag External Magnetometerfor AV-30 Experimental

February 13, 2024

Great device - easy install and setup.

Roger S Verified Purchase

uAvionix Av-Mag External Magnetometerfor AV-30 Experimental

April 30, 2023

I purchased an AV30 EXP a while ago. I guess I didn’t closely read the specs. My version didn’t have an internal magnetometer some did but evidently didn’t work well in some installations due to local magnetic fields. The result was no slaving os the compass. I am not putting a wet compass in the plane so I want two independent compass sources. The AV30 as planned as the backup compass. This is an inexpensive fix. The three wires interface is simple to run and will let me located far from sources of magnetic fields

Dan B Verified Purchase

uAvionix Av-Mag External Magnetometerfor AV-30 Experimental

July 11, 2023

This unit does not come with enough wire to complete the installation. It requires a 4-conductor shielded cable, which isnt included, and the documentation. The installation instructions assume an aluminum structure, not a tube-and-fabric.

Bassline L Verified Purchase

uAvionix Av-Mag External Magnetometerfor AV-30 Experimental

October 13, 2022

The Av-Mag seems to have solved the DG drift issues I was having. It’s nice to have the AI & the DG agree. Would give higher rating but I’m still testing settings & recalibrating.

Fred
September 14, 2022

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: am looking to purchase this today. UAVIONIX AV-MAG EXTERNAL MAGNETOMETERFOR AV-30 EXPERIMENTAL Part# 11-19214 MFR Model# UAX-90092-01. Please can you tell me if this is the newer type that auto calibrates roll an yaw angles?

Yes, this model will auto calibrate on roll and yaw.
