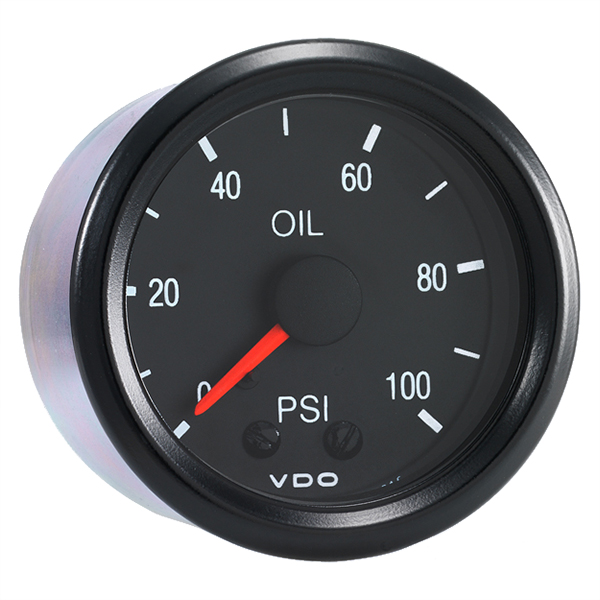

2" VDO Mechanical Oil Pressure Gauge

Add to Wishlist
Part# 15-04763
MFR Model# 150-030


2" VDO Mechanical Oil Pressure gauge ideal for Rotax 912, Measures oil pressure from 0- 100 psi. Requires tubing kit for hook-up. No external power source required (except for light). Order tubing kit separately. Fits 2 1/16" cutout.
California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm -

  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed


Three stars for the system application not the gauge itself. Rotax recently replaced the 1/8-27 NPT oil pressure gauge outlet port bung with an M10 metric thread on their 912 engines. The tubing kit sold here (and everywhere else to be fair) for VDO gauges includes only NPT fittings. If you buy a VDO mechanical oil gauge and the tubing kit you’ll also need to source an NPT-metric adapter for the engine connection that works with the tubing kit. I could not and now have a plastic tubing kit I can’t use and instead will install braided steel oil lines.

James I
February 8, 2019


Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: How is this VDO gauge mounted to an aircraft panel? The typical four screw method, or another way?

The VDO oil pressure gauge (15-04763) is mounted from the back using the included bracket.

Q: What is the Tubing Kit Part number for hooking up the 15-04763 oil pressure gauge?

See part number 15-04762 for the suggested tubing kit. It is listed in the Accessories tab.

Q: Will this 2" VDO oil pressure gauge fit in a 2-1/4 hole?

No, max hole size is 2-1/16".

Q: What size fitting is needed to connect to this gauge? eg 1/8 npt Male?

You would use the 15-04762 tubing kit. It has 1/8 and 1/4 npt adapters.
