Matco Tubing & Fittings

From $1.27 to $26.70
Image Description PN Matco
Part No.
Price Buy

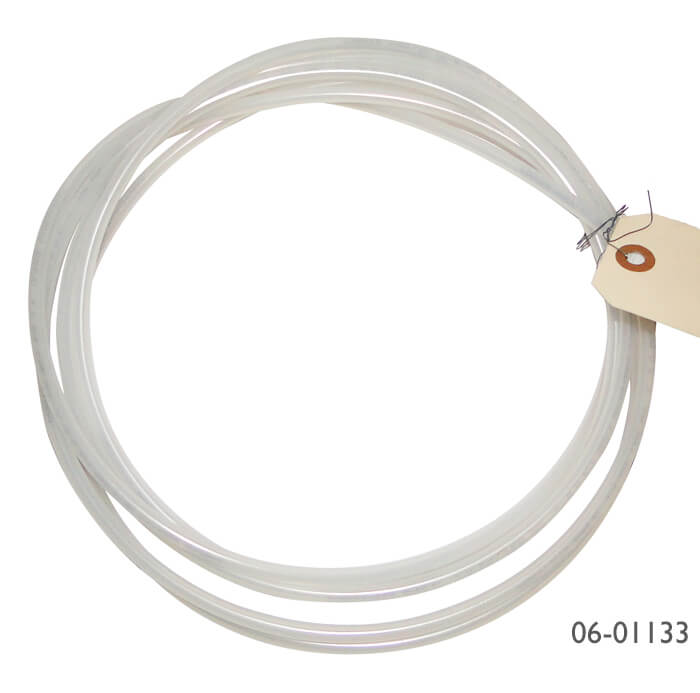

Nylon II Tube 1/4"
06-01133
MSCNNR4/035$2.15
Quantity

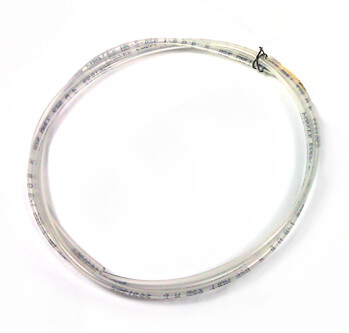

Nylon II Tube 1/8"
06-01140
MSCNNR2/026$1.27
Quantity

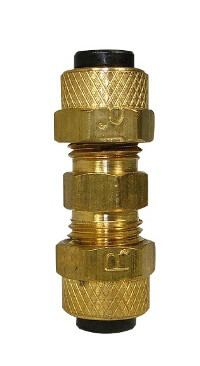

Union Brass Fitting 1/4"
06-01135
MSC262P$11.50
Quantity

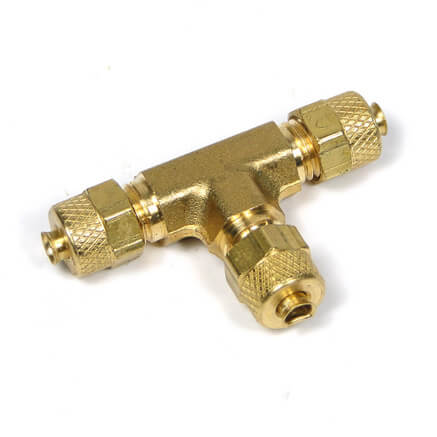

T-Fitting, 1/4" Compression
06-01136
MCS264P$18.80
Quantity
Compression Fitting For 1/8" OD Tube
06-01142
MSC164P$26.70
Quantity

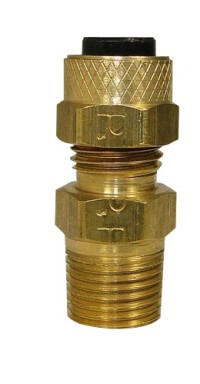

Straight 1/8" NPT - 1/4" Compression
06-01137
MSC268P$6.50
Quantity

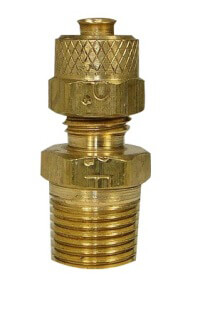

Straight 1/8" NPT - 1/8" Compression
06-01143
MSC168P$6.90
Quantity
---Straight Fitting 1/16"
06-01138
MSC268P-04X01$18.60
Quantity
Brass Elbow, 90 1/8" NPT - 1/4" Compression
06-01139
MCS269P$8.55
Quantity
Brass Elbow, 90 1/8" NPT - 1/8" Compression
06-01144
MSC169P$9.75
Quantity
1/8" Ferrule and Nut
06-01141
MSC161P$2.89
Quantity
1/4" Ferrule and Nut
06-01134
MSC261P$3.55
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Matco brake tubes, brass fittings, straight fittings, elbow fittings, T-fittings, ferrules, & nuts.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Parfait

Gilles C Verified Purchase

STR FITTING 1/8" NPT-1/4" COMP

April 2, 2024

Just right for my use.

Boyd E Verified Purchase

STR FITTING 1/8" NPT-1/4" COMP

October 4, 2023

Perfect fit for my application.

Boyd E Verified Purchase

BRASS ELBOW 90 DEG 1/8"NPT1/4"

October 4, 2023

shorted me a bit on length, could be an issue, I dont know yet

Bill P Verified Purchase

TUBE NYLON II .25

February 4, 2023

as ordered

Bill P Verified Purchase

STR FITTING 1/8" NPT-1/4" COMP

February 4, 2023

Mark A Verified Purchase

TUBE NYLON II .125

September 2, 2022

Good product and servise

Graeme S Verified Purchase

1/8" FERRULE AND NUT MSC161P

June 7, 2022

Easy to use and they work great.

James B Verified Purchase

STR FITTING 1/8" NPT-1/4" COMP

January 11, 2022

Got here quick and complete

Michael D
March 5, 2020

Gotta have these just in case of a seeping brake line. Finger tight and one turn of the wrench and you’re back in business.

Loren
January 24, 2020

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the ID,wall thickness and bursting pressure of the .125 brake line? Who is the manufacturer?

The ID of this would be .073". Wall thickness would be .026". Bursting pressure of 2,100 PSI, working pressure of 600 PSI. The manufacture would be Parker.

Q: For the tubing listed on this page: what is the length sold at the price quoted per unit?

The tubing listed on this page is priced and sold per foot.

Q: Do the fittings & elbows come with the ferrule and nut as shown in the photos, or must they be ordered separately?

Yes they come as shown in the photo.

Q: Is the 1/4 fitting for tubing that is 3/16 OD?

No they will be for 1/4" tubing.

Q: What is the ID,wall thickness and bursting pressure of the .25 brake line, part # 06-01133?

This will have a burst pressure of 1700 psi. The ID is 0.215" while the wall thickness is 0.035".

Q: Will the nut with 1/4 ferrule PN 06-01134 fit on the other end of the 90 degree elbow PN 06-01139? I want a ferrule on both ends.

For that to work an adapter is required, please see part # 05-12251.
