| Size | Lb./Sq.Ft. | Thickness | PN | Price | Buy |
|---|---|---|---|---|---|
| 2x2 | .37 | .060 Clear | 03-49802 | $8.95 | |
| 2x4 | .37 | .060 Clear | 03-49804 | $17.50 | |
| 4x4 | .37 | .060 Clear | 03-49808 | $34.50 | |
| 4x8 | .37 | .060 Clear | 03-49810 | $68.75 | |
| 2x2 | .49 | .080 Clear | 03-49902 | $11.55 | |
| 2x4 | .49 | .080 Clear | 03-49904 | $22.50 | |
| 4x4 | .49 | .080 Clear | 03-49908 | $44.50 | |
| 4x8 | .49 | .080 Clear | 03-49910 | $88.75 | |
| 2x2 | .62 | .118 Clear | 03-50002 | $16.75 | |
| 2x4 | .62 | .118 Clear | 03-50004 | $32.50 | |
| 4x4 | .62 | .118 Clear | 03-50008 | $64.75 | |
| 4x8 | .62 | .118 Clear | 03-50010 | $117.75 | |
| 2x2 | .77 | .118 Smoke | 03-50102 | $18.85 | |
| 2x4 | .77 | .118 Smoke | 03-50104 | $36.50 | |
| 4x4 | .77 | .118 Smoke | 03-50108 | $72.75 | |
| 4x8 | .77 | .118 Smoke | 03-50110 | $144.75 | |
| 2x2 | .77 | .118 Green | 03-50202 | $19.50 | |
| 2x4 | .77 | .118 Green | 03-50204 | $37.50 | |
| 4x4 | .77 | .118 Green | 03-50208 | $74.75 | |
| 4x8 | .77 | .118 Green | 03-50210 | $148.75 |
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
|

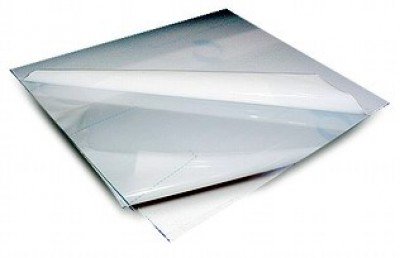

American made Acrylic Sheet Grade C to Specification LP-391 is unshrunk. When heated to forming temperature of 220-250°F, it will shrink about 2.2% in length and width and will increase about 4% in thickness. When heated to a pliable state it can be drilled, sawed and machined. Excellent resistance to weathering and less than half as heavy as glass and has good impact resistance. .060" or .080" thickness is generally used for side windows and .118" for windshields. Both sides are paper covered for protection. Sheet size: 48"x96". Sold in 2'x2' increments only. |
Reviews
Came well protected an as advertised.
Very good packing
Exactly what I ordered. A 2x2 sheet of 0.180 acrylic in smoke. Cuts very nicely with a fine bandsaw blade. I got a 1/8 acrylic bit also and after initial piercing with the 1/8 bit, stepping the holes up worked fine.
Exactly what I ordered. A 2x2 sheet of 0.180 acrylic in smoke. Cuts very nicely with a fine bandsaw blade. I got a 1/8 acrylic bit also and after initial piercing with the 1/8 bit, stepping the holes up worked fine.
I deal with Aircraft Spruce for all my Acrylic and Delrin needs. Expertly packaged, fast, and low shipping rates. Clean, quality product. Friendly telephone staff who arent afraid to call to confirm details of order if required. I do a lot of online business, and by far Aircraft Spruce is the best. P.s. Hats off to the shipper who packages the acrylic panels before shipping. A lot of thought has gone into making sure the acrylic doesnt get damaged in transit.
Aircraft spruce has become my new source for acrylic and will see repeat business in the future. Sara and company were great, the prices were very good, as was communications. The only small issue was that the 3 pieces they cut were not exactly the same length which caused a couple small issues. Thanks.
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
We do not stock green tinted 1/16" plexiglass/acrylic sheet.
We do not have any samples of this material to send but we also do not have a minimum order. The smallest amount we can send would be 2x2 of each type.
Yes, we can cut acrylic sheet.
No, we have no FAR data on this acrylic sheet.
Please see the Size column on the web page. The first column lists the size. That is in feet, so the 0.118 smoke is available in 2x2, 2x4, 4x4, or 4x8 sheets.
Each size is available in 2 x 2, 2 x 4, 4 x 4, or 4 x 8 sheets. Each size is a line in the ordering grid.
No, we do not recommend this product be rolled.
