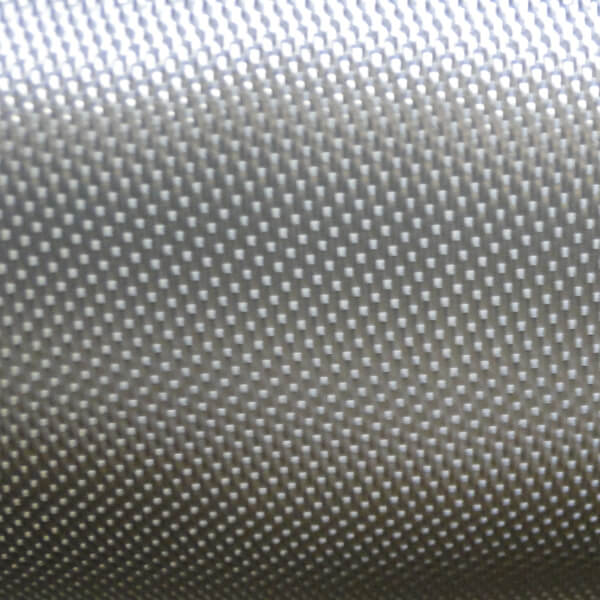

FIBERGLASS CLOTH 7781-50
MFR Model# SOFT SIZING F16
FREE Shipping
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
| Description | Part No. |
|---|---|
| FIBERGLASS CLOTH 7781-50 Finnish is F16. 50" Width. Sold by the yard. | 7781-50 |
Overview
| 8.95 oz/yd˛ Medium Weight Standard Industrial Cloth. 8 Harness Satin. Thread Count 57 x 54. Breaking Strength 350 x 330 lb./in. Finished Weight 8.95 oz./yd˛ Thickness .009 mils. Sold by the yard. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Reviews
Love this style of glass! VERY easy to work with, while delicate, it holds together significantly better than other stuff i have bought. Works great on anything and everything Ive build on my RV8. My go to fabric!!!
Verified Purchase
FIBERGLASS CLOTH 7781-50
One of my favorite glass cloths
Verified Purchase
FIBERGLASS CLOTH 7781-50
Verified Purchase
FIBERGLASS CLOTH 7781-50
Verified Purchase
FIBERGLASS CLOTH 7781-50
Using on RV10 lead fairing. Easy to cut, place, epoxy etc. Got 2 yds more than enough material.
Two layers of this is solid but flexible, I made some naca vents and two layers seems perfect, for an intake I started with two layers and it was more flexible than I wanted so I added two more for a total of four layers and its solid, no flex. I was concerned that with the heavier fabric it wouldnt lay into compound curves very well but it does.
Great product and fast service. Thanks!
Fills the bill for RV fiberglass work - the right weight and best weave for most tasks. Highly conforming cloth.
Excellent product.
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, Hexcel uses an F16 sizing which works with structural epoxy, polyester, and vinyl-ester resins.
This material is bi-directional.
No, certificate of conformance must be requested at time of checkout, it does not come standard (additional fees may apply).
Finishes on Fiberglass fabrics are generally very stable to environmental conditions. Most fabric/finish combinations, silane and Volan-type finishes included, will not lose significant levels of properties under standard warehouse storage conditions -- <65% relative humidity and between 50 and 120oF. Hexcel believes that Fiberglass fabrics stored under these conditions will retain their full properties for at least two years.
Yes, this is Bi-directional
Yes, this an e-glass 7781 style
