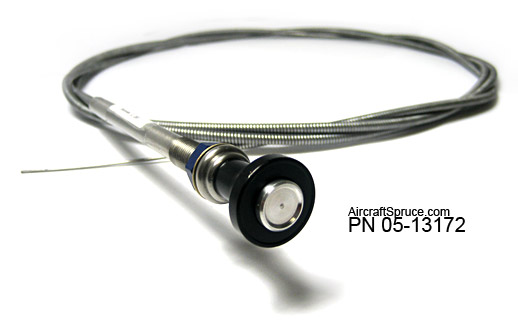

(7/16-20 UNF-2A Threads / Solid Wire End) Provides a 10-lb. locking force for light and medium service applications. Black or Red anodized aluminum knob with aluminum release button. Has .062" dia. stainless steel wire core in flexible metal casing. May be shortened as req. Max. travel 3-1/2". Order by Part No.
Made in USA
Works as it should. Installed to control the air going thru my oil cooler. so I can adjust how much or how little air I want to go thru it. To help control the oil temp in the engine on cold days.
Direct fit replacement for original cable, just needed cut to length. 172M
This is a nice quality pull cable control. It looks like a plastic knob but as the description says its anodized aluminum. Its perfect for my parking brake control cable.
I used it to replace a non-locking carb heat control. The button was a little difficult to push in at first but now is working perfectly. Instructions warning was very helpful.
Nice gear for the price. It is the item issued in Sonex kits.
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
It is an 1/8" diameter bearing, part number 05-02618.
The knob diameter of this control is approximately 1".
The OD of the cable housing is approximately 3/16".
The knob on the A-700 controls is approximately 1" diameter.
Approximately 1.5 inches.
Yes, they can be shortened and the wire should be fine wrapped around a 3/16 diameter.
This requires a 7/16" hole in the panel for installation.
These have a polyethylene liner. These parts can be special ordered without an inner liner.
You could cut all of the flexible portion off so that would just leave the 6" rigid end.
Yes they are all the same length.
