Part# 05-15000
MFR Model# 36338100

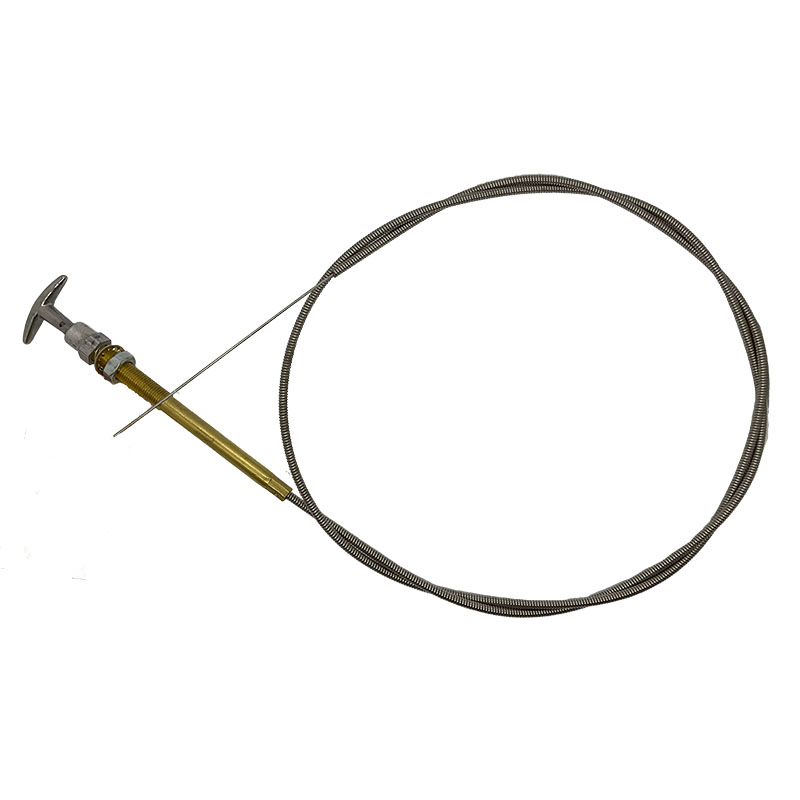

T-Handle dash control manufactured of duralumin and brass. Locks positively, will not vibrate loose. One-fourth turn locks it in any position and will hold up to 100 lbs. Standard travel 2-1/2". T-handle is 1-3/4" wide. Can be mounted from front or rear of instrument panel. Complete with wire and casing which may be shortened.

05-15000 5 CABLE
Mounting Thread: 7/16-20
Wire/Cable Diameter: .054
Cable Housing Diameter: .190

05-15100 8 CABLE
Mounting Thread: 7/16-20
Wire/Cable Diameter: .072
Cable Housing Diameter: .215

05-15200 12 CABLE
Mounting Thread: 7/16-20
Wire/Cable Diameter: .072
Cable Housing Diameter: .215
California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm -


Arrived very quickly to Australia and worked perfectly

Sean M Verified Purchase


October 11, 2021

Nice construction and excellent finish. Has added feature of locking T-Handle.

Herschel C
May 7, 2020

Rick L
June 9, 2017

They don’t show it in the photo, but the T handle has “(LOCK)” with arrows instead of parentheses, cast into the face. Also, if the cable needs to be routed with some bends in it, the push-pull action can get pretty stiff, so you wouldn’t want to use it for something requiring fine adjustment, like a mixture control. For open-close and on-off, these work very well, for they are ruggedly built. If you need to cut the Bowden cable housing, remove the inner cable BEFORE you do! A wee cut-off wheel in a Dremel works really well for this.

Gelston A
August 27, 2019


Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the diameter of the actual control wire (the wire that comes out of the conduit / sleeve)?

The wire / cable diameter is .054 and the cable housing is .190.

Q: What color is the handle on these T-Handle controls?

The handles on the controls are silver.

Q: Hi, Could you let me know what is the weight of the T-handle 05-15000? Thank you. Yin

This t-dash handle control weighs approximately 0.57 lbs.

Q: The wire cable come out of conduit is wire rope (e.g 7x7, 7x19) or solid wire cable?

That has a solid wire end.

Q: Is the T handle threaded and can it be removed?

It is not threaded. It is installed with a roll pin and cannot be removed easily.

Q: What s the width of the T? Will a clearance hole for 7/16 be enough for panel mounting? Are there any anti-rotation measures such as a keyway?

The T is 1-3/4" wide. You would need a hole slightly bigger than 7/16 and there is no keyway.

Q: Can you pull the cable out of the sheath and use the cable and T to replace a broken one without replacing and rerouting the whole assembly?

Yes, the inner cable and handle can be pulled out of the housing.
