R1224S-14 Hartzell Plane-Power Voltage Regulator

32 Reviews 12 Answered Questions

$465.00/Each

Add to Wishlist View More In This Series →

Part# 07-01305
MFR Model# R1224S-14

JUMP TO
Overview
Documents
Accessories
Reviews
Q&A
View in Catalog

Overview

14V / 28V, replaces Ford, Electrodelta, Prestolite, Interav, Wico, FVR, and more voltage regulators. (Refer to Model Eligibility for your more information and additional models)

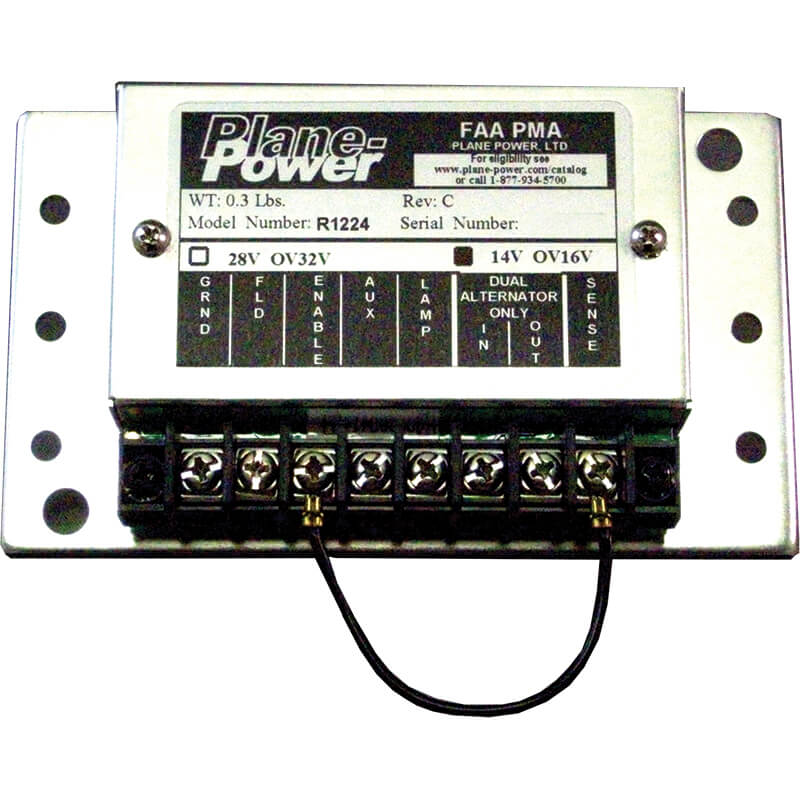

The Plane Power R1224 Voltage Regulator is a solid-state voltage regulator with over-voltage protection, field short (over current) protection, and reverse battery protection. The Plane Power R1224 Voltage Regulator also supports precision load sharing for twin applications, and an alternator inoperative lamp.

NOTE: The R1224 voltage regulator is designed to be setup in the field for 14 or 28 volt operation by configuring the two jumpers within the voltage regulator.

Attention:
Some applications require accessory part number 07-03532. See Application Guide for requirements.
