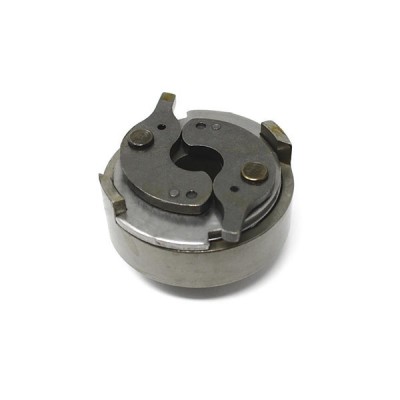

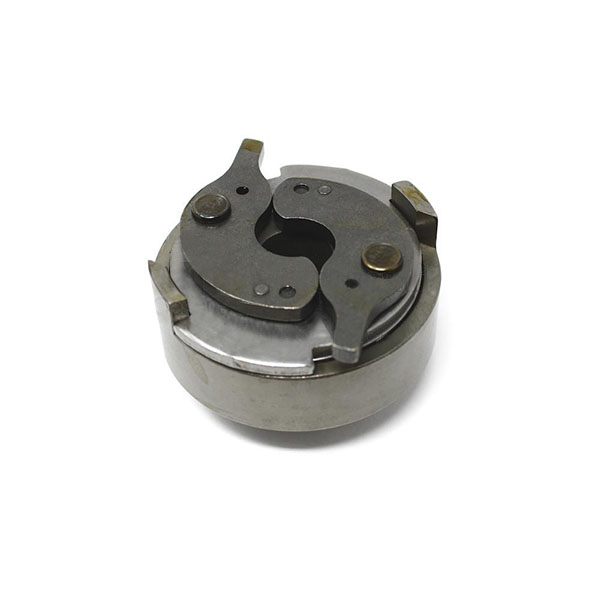

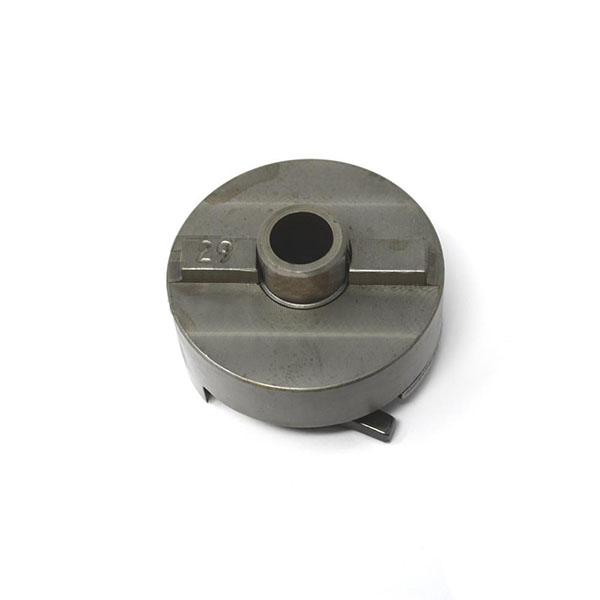

SLICK IMPULSE COUPLING M3007

$846.00/Each
Part# 10-00484
MFR Model# M3007SP

Overview

To order parts: Locate part number for your application in the table below, then scroll down to the bottom of the page and click on the corresponding order button.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reference Chart

Description 4301 4302 4303 4316 4330 4331 Qty
Cotter pin M2556 M2556 M2556 M2556 M2556 M2556 1
Nut M3019 M3019 M3019 M3019 M3019 M3019 1
Washer M3172 M3172 M3172 M3172 M3172 M3172 1
Impulse Coupling Assembly M3007 - - M3076 M3068 - 1
Oil Seal M3062 M3062 M3062 M3062 M3062 M3062 1
Air Vent M1077 M1077 M1077 M1077 M1077 M1077 1
Frame M3859 M3900 M3859 M3888 M3888 M3900 1
Rotor M3073 - M3338 M3047 M3065 M3065 1
Bearing Kit K3318-4 K3318-4 K3318-4 K3318-4 K3318-4 K3318-4 1
Ball Bearing M3006 M3006 M3006 M3006 M3006 M3006 1
Bearing Cap Clamp M3018 M3018 M3018 M3018 M3018 M3018 2
Screw M3221 M3221 M3221 M3221 M3221 M3221 2
Contact Point Kit-Primary M3081 M3081 M3081 M3081 M3081 M3081 1
Contact Point Kit-Secondary - - - - - - 1
Rotor Gear M3827 M3827 M3827 M3827 M3827 M3827 1
Woodruff Key M2536 M2536 M2536 M2536 M2536 M2536 1
Coil Wedge M3040 M3040 M3040 M3040 M3040 M3040 2
Coil*(see below) M3975 M3975 M3975 M3975 M3975 M3975 1
Screw M2555 M2555 M2555 M2555 M2555 M2555 1
Air Vent w/Hood M3084 M3084 M3084 M3084 M3084 M3084 1
Screw M3015 M3015 M3015 M3015 M3015 M3015 3
Housing, Dist. M3902 M3902 M3902 M3902 M3902 M3902 1
Condenser M3183 M3183 M3183 M3183 M3183 M3183 1
Dist. Block & Gear Assembly K3822 K3822 K3822 K3822 K3822 K3822 1
Carbon Brush M3215 M3215 M3215 M3215 M3215 M3215 1
Washer M2532 M2532 M2532 M2532 M2532 M2532 1
Screw M3021 M3021 M3021 M3021 M3021 M3021 2
Spacer M3826 M3826 M3826 M3826 M3826 M3826 2
4300 SERVICE PARTS LIST cont...
Description 4342 4344 4345 4347 4348 4353

Qty
Cotter pin M2556 M2556 M2556 M2556 M2556 M2556 1
Nut M3019 M3019 M3019 M3019 M3019 M3019 1
Washer M3172 M3172 M3172 M3172 M3172 M3172 1
Impulse Coupling Assembly - - - - - -
Oil Seal M3062 M3062 M3062 M3062 M3062 M3062 1
Air Vent M1077 M1077 M1077 M1077 M1077 M1077 1
Frame M3900 M3900 M3900 M3900 M3900 M3900 1
Rotor M3548 M3513 M3548 M3548 M3513 M3548 1
Bearing Kit K3301 K3301 K3301 K3301 K3301 K3301 1
Ball Bearing M3006 M3006 M3006 M3006 M3006 M3006 1
Bearing Cap Clamp M3018 M3018 M3018 M3018 M3018 M3018 2
Screw M3221 M3221 M3221 M3221 M3221 M3221 2
Contact Point Kit-Primary M3637 M3637 M3637 M3637 M3637 M3637 1
Contact Point Kit-Secondary M3740 M3740 M3637 M3637 M3637 M3637 1
Rotor Gear M3827 M3827 M3827 M3827 M3827 M3827 1
Woodruff Key M2536 M2536 M2536 M2536 M2536 M2536 1
Coil Wedge M3040 M3040 M3040 M3040 M3040 M3040 2
Coil*(see below) M3975 M3975 M3975 M3975 M3975 M3975 1
Screw M2555 M2555 M2555 M2555 M2555 M2555 1
Air Vent w/Hood M3084 M3084 M3084 M3084 M3084 M3084 1
Screw M3015 M3015 M3015 M3015 M3015 M3015 3
Housing, Dist. M3874 M3874 M3832 M3832 M3832 M3832 1
Condenser M3183 M3183 M3183 M3183 M3183 M3183 1
Dist. Block & Gear Assembly K3822 K3822 K3822 K3822 K3822 K3822 1
Carbon Brush M3215 M3215 M3215 M3215 M3215 M3215 1
Washer M2532 M2532 M2532 M2532 M2532 M2532 1
Screw M3021 M3021 M3021 M3021 M3021 M3021 2
Spacer M3826 M3826 M3826 M3826 M3826 M3826 2
4300 SERVICE PARTS LIST cont...
Description 4354 4370 4371 4372 4373 4374 4381 Qty Used
Cotter pin M2556 M2556 M2556 M2556 M2556 M2556 M2556 1
Nut M3019 M3019 M3019 M3019 M3019 M3019 M3019 1
Washer M3172 M3172 M3172 M3172 M3172 M3172 M3172 1
Impulse Coupling Assy. M3529 - M3163 M3100 M3529 M3689 M3007 1
Oil Seal M3062 M3062 M3062 M3062 M3062 M3062 M3062 1
Air Vent M1077 M1077 M1077 M1077 M1077 M1077 M1077 1
Frame M3859 M3900 M3859 M3859 M3859 M3888 M3859 1
Rotor M3158 M3548 M3158 M3158 M3158 M3065 M3158 1
Bearing Kit K3301 K3318-4 K3318-4 K3318-4 K3318-4 K3318-4 K3318-4 1
Ball Bearing M3006 M3006 M3006 M3006 M3006 M3006 M3006 1
Bearing Cap Clamp M3018 M3018 M3018 M3018 M3018 M3018 M3018 2
Screw M3221 M3221 M3221 M3221 M3221 M3221 M3221 2
Contact Point Kit- Primary M3637 M3081 M3081 M3081 M3081 M3081 M3081 1
Contact Point Kit- Secondary M3637 - - - - - - 1
Rotor Gear M3827 M3827 M3827 M3827 M3827 M3827 M3827 1
Woodruff Key M2536 M2536 M2536 M2536 M2536 M2536 M2536 1
Coil Wedge M3040 M3040 M3040 M3040 M3040 M3040 M3040 2
Coil*(see below) M3975 M3975 M3975 M3975 M3975 M3975 M3975 1
Screw M2555 M2555 M2555 M2555 M2555 M2555 M2555 1
Air Vent w/Hood M3084 M3084 M3084 M3084 M3084 M3084 M3084 1
Screw M3015 M3015 M3015 M3015 M3015 M3015 M3015 3
Housing, Dist. M3832 M3902 M3902 M3902 M3902 M3902 M3902 1
Condenser M3183 M3183 M3183 M3183 M3183 M3183 M3183 1
Dist. Block & Gear Assembly K3822 K3822 K3822 K3822 K3822 K3822 K3822 1
Carbon Brush M3215 M3215 M3215 M3215 M3215 M3215 M3215 1
Washer M2532 M2532 M2532 M2532 M2532 M2532 M2532 1
Screw M3021 M3021 M3021 M3021 M3021 M3021 M3021 2
Spacer M3826 M3826 M3826 M3826 M3826 M3826 M3826 2
