CHT/EGT, 2 1/4 Square

$270.95/Kit
Part# 10-01409
DescriptionPart No.

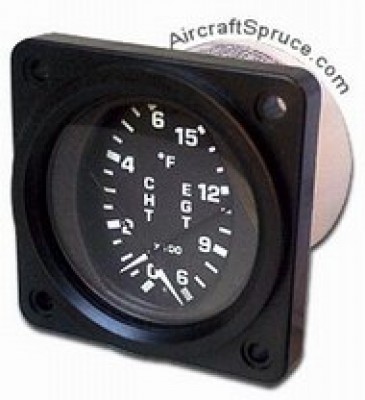

Micro-1000 Dual EGT/CHT Gauge-Square 2 1/4"10-01409

Overview

Superior to any other type of pyrometer available. This gauge is suitable for use on sport aircraft. It is constructed with a heavy duty, vibration and shock proof precision jeweled mechanism. Unlike other brands, these units are temperature compensated. That is, changes in ambient air temperature will not affect the gauge display. This gauge, when installed as instructed, will perform within 2% of accuracy. Like other Micro1000 gauges, these units come with our standard 2-year warranty. Order gauges, probes, and extension leads separately.

Scaled 0-1700° F Requirements EGT Probe Options (requires one of): EP131, EP130, EP130R, EP132 or EP133
CHT Probe Options (requires one of): CP130, CP131, or CP132
Leads for the probes listed above are sold separately.
EGT LEAD (requires one of either): EPE130.07 or EPE130.15
CHT LEAD (requires one of either): CPE130.07 or CPE130.15

Click here for more info on Micro-1000 Probes

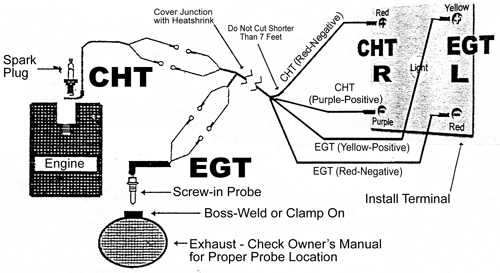

Gauge Installation The gauge should be mounted in the panel. Round gauges from the front are secured with a U-clamp in the rear. Square gauges from the rear are secured by four provided brass instrument screws and nylock nuts. Connections to Gauge You must use the Micro-1000 extension lead. This is the thermocouple lead and cannot be substituted with normal electrical wire. Fifteen foot extension can be shortened down to a minimum of 7 feet. Seven foot leads may not be shortened. If you have excess leads then bundle and secure them with cable ties or other save method. Wire the backlight if desired or leave unconnected. Connect the probe leads to the instrument as shown in the illustration below. Connect the extension lead to the probe leads matching to the corresponding colors. Red to red, purple to purple, and yellow to yellow. EGT leads connect the "L" terminals on the gauge. Yellow wire goes to the + positive terminal and red lead connects to the - negative terminal. CHT leads connect to the "R" terminals on the gauge. The red lead connects to the positive terminal and the purple lead connects to the - negative terminal.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • 2% Accuracy!
  • Easy-to-Read Dial!
  • Backlighting Standard
  • Temperature Compensated!
  • Optional Lifetime Warranty!
  • Shock and Vibration Resistant!
  • Designed and Built for Aircraft!
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: How much room is needed behind panel for proper mounting?

We have added the dimensional drawing to the "Documents" tab of this web page. Please download and review them for panel spacing.

Q: Can this Micro 1000 gauge be used in certified aircraft?

No, this is intended for use in experimental aircraft only.

Q: Can I use a Westach CHT probe P/N 10-01227 on this gauge?

Yes, Per the install manual P/N 10-01227 can be used with this gauge.
