|CP131 CHT Probe 18mm||10-01440|
Superior to any other type of pyrometer available. Unlike competing brands, these units are temperature compensated. That is, when the ambient temperature changes, MICRO-1000 pyrometers still read the same. And we guarantee that, when properly installed, these pyrometers will be accurate within 2%. Like other MICRO-1000 gauges, these units come with our standard 2-year warranty. Order gauges, probes, and extension leads separately. NOTE: MICRO 1000 pyrometers are not compatible with other thermocouple probes. Order Micro-1000 Probes.
• 2% Accuracy
• Easy-to-Read Dial
• Temperature Compensated
• Shock & Vibration Resistant
• Designed & Built for Aircraft

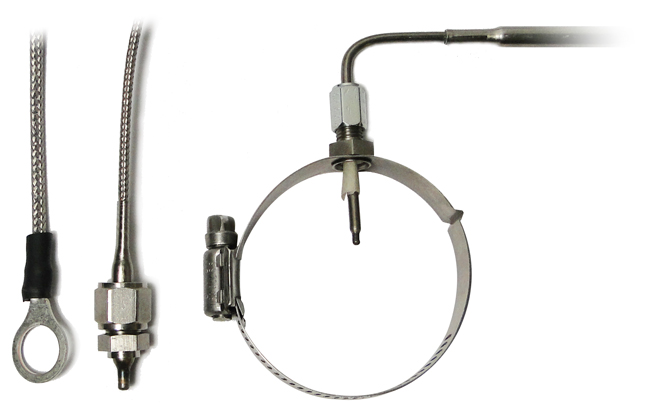

CHT probe (left) is a high quality Chrome / Constantan "E" type. A more expensive material than the more commonly found "J" type, the "E" type probe produces much greater accuracy at lower temps. (less than 600°F). Extension wire is the same material as the thermocouple to preserve the accuracy and temp. compensation qualities. NOTE: 15 extension leads may be shortened up to 7 ft. EGT probes are high quality Chrome/Alumel K types. Choose the weld-on boss type (center) for new engine installations. Choose the clamp-on type (right) to replace the existing probe. Order gauges, Micro-1000 probes, and extensions separately.
Note: These are "K" type grounded probes, not for use on digital gauges. For use with Micro-1000 gauges.
I am so grateful to you for carrying Cylinder Head Temperature gauges that are compensated for ambient temperature. Even the serious Hot Rod community ignores this subtlety. And your pricing is good too. Good job - and thanks! Van Baehr
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The length of the longest lead on this probe is approximately 13 inches.
No, these probes are intended for use in experimental aircraft only.
Alcor recommends using Alcor probes with the Alcor instrument line.
Lead length approx 18 inches.
