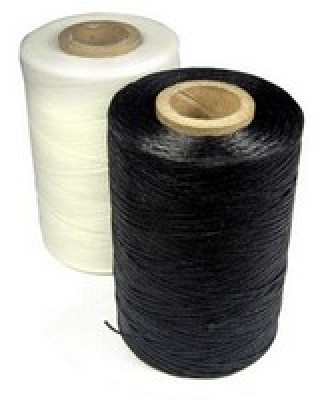

BREYDEN POLYESTER LACING TAPES
Flat braided tape manufactured from 100% high tenacity, continuous filament polyester fiber. This product conforms to the requirements of A-A-52081-C-3 MIL-T-43435B; Type II, Size 3, Finish C.
The tape is uniformly impregnated with a synthetic elastomer coating to improve knot holding and tying characteristics. Ideal for spot tying. 500 yd. rolls. Width: .085” (±10%); Thickness: .014” (±.003”); Tensile Strength: 50 Lb. (min.); Elongation: 40% (max.)
PN 11-02012 - POLYESTER NATURAL
PN 11-02013 - POLYESTER BLACK
BREYDEN NYLON LACING TAPES
Flat braided tape manufactured from 100% high tenacity, continuous filament nylon yarn. This tape is impregnated with a specially formulated microcrystalline, fungicidal wax. Conforms to the requirements of A-A-52080-B-3.
Recommended for continuous lacing. 500 yd. rolls. Width: .077” (min.) / .094” (max.); Thickness: .011” (min.) / .017” (max.); Tensile Strength: 50 Lb. (min.); Wax Content: 15-32%; Elongation: 40% (max.)
PN 11-12170 - NYLON NATURAL
PN 11-12160 - NYLON BLACK
WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. www.P65Warnings.ca.gov
Great place to get Breyden Lacing tape. Quality Lacing tape, what more needs to be said.
BREYDEN 203-3 CONT LACING NAT
BREYDEN 203-3 CONT LACING NAT
I am now the proud owner of 35.2% of a mile of very high quality lacing tape, which will lace not only my plane project, but that of everyone I know, and will probably be included in my will. The quality is first-class, the price is excellent, and the package arrived on time, as usual.
Exactly what I wanted and expected. It works well holding together while finishing the knot. Thank you. Stay safe and well.🇨🇦🇺🇸
Far superior to cable ties, except it takes a little longer. When you see an aircraft with wires secured with lacing, you know someone who really cares and took the extra time maintains it. Wont scratch and cut you, either, like a poorly cut off cable tie.
It works as you want it to. I got the polyester, it has a temperature range of -100 to 350F. I use the constrictor hitch, topped with a square knot. I replaced all the tie-wraps.
I was glad to find this one for our satellite components, perfects! And it takes about 10days from order to shipped to Japan by airmail. wonderful, I felt so happy.
Best price very good customer service
Works great for our students s projects.
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Per the supplier: Per the MilSpec there is no shelf life...but the recommended life is 36 months.
The only dimensions on this are 4.1" Height and 2.6" Diameter.
These are flat braided tapes.
It does not. The nylon versions to have a waxed coating.
Approx 500 yards per roll.
