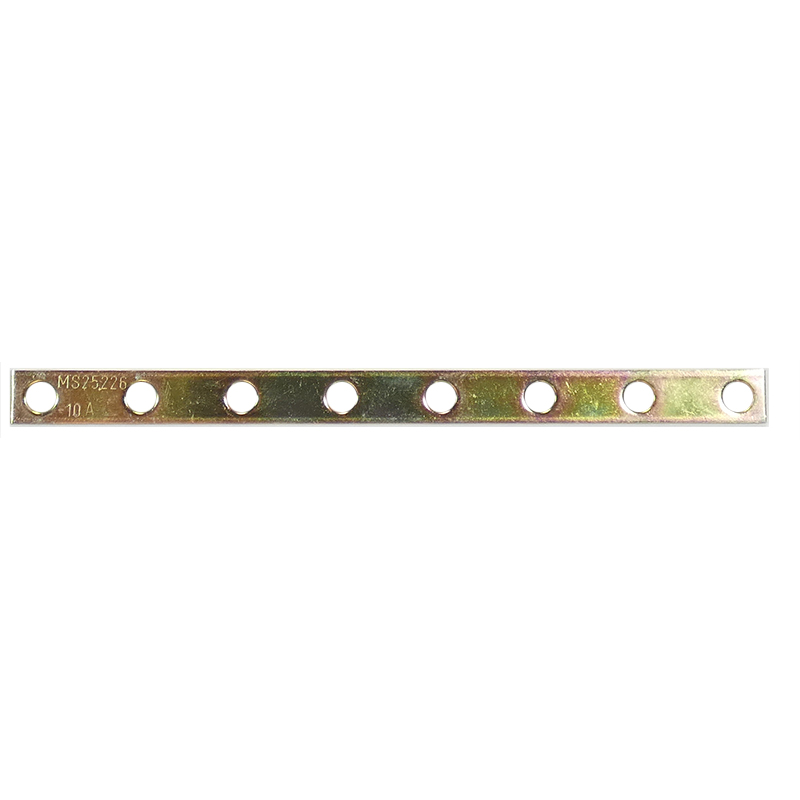

MS25226-10A-8 BUSS BAR

$19.85/Each
Part# 11-17894
MFR Model# MS25226-10A-8
MS Part No.Hole Size# of HolesLengthPN
MS25226-10A-8.225"85 5/811-17894

Overview

These MS25226 series buss bars are used as replacement bars for MS27212 board assemblies.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Documents

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

These are Cad plated Copper (good stuff). Take a look at the specification sheet before ordering. One of the great things about these bus bars are the pre-drilled holes at a diameter and standard spacing as show in the specification sheet link on the product page. For typical Klixon breakers 3/4 spacing works very well so the dash 4 bar is great. There are blank bus bars available elsewhere on the ACS site so if that is what you want order those instead of these. If you lay out a panel with the typical hole spacing (like 3/4 example) for your breakers or switches these bus bars save a lot of time and keep things lined up perfectly both front and back of the panel.

Jim
August 6, 2021

Appears to work. No problems so far

Gwen W
February 21, 2019

The only reason I give it 3 stars is because it comes predrilled and the holes do not line up for my application, I had to drill new holes and widen some that were 1/16 - 1/8 off center. These bus bars would be much better sent un-drilled as each installation Im sure is different. Surely the manufacturer would save money by not drilling them up. they are soft and easily drilled where needed. Otherwise it worked great, did not need longer screws unless you were adding wire ferules in addition to the bar.

Sherman C
November 7, 2020

Holes are too large to be useful for anything.

Tremper A
July 29, 2022

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the hole center to center dimension and thickness of the MS25226-10-16 buss bar?

Center to center dimension is approximately 3/4" and the thickness is 1/16".

Q: What material is the Bus Bar?

These Bus Bars are made from Cadium.
