Airbly Phoenix P200 Aircraft Monitor

Select Base Package
LiteBasicUnlimited
Select Tracking & ADS-B
No TrackingADS-B TrackingSatellite TrackingSatellite & ADS-B Tracking
Quantity
Add to Wishlist

Overview

Airbly helps aircraft owners and operators better manage their aircraft usage, record keeping and maintenance by automating the creation of aircraft logbooks. All packages include one year of service. Additional years subject to new subscription fee.

    Services
  • Location tracking allows you to always know where your aircraft is and where it has been.
  • Automatic logbook generation creates a detailed log of each flight.
  • Maintenance tracking ensures your aircraft is maintained and airworthy.
  • Notifications alert you to maintenance or usage that may require your attention.
  • Reports summarize the usage of an aircraft.
  • SOS features lets other know there is a problem.
  • Simple API makes integration with other systems possible.
    Automatic Logbook
  • The Phoenix monitors every aircraft flight and automatically reports usage over satellite as the plane flies. Every logbook includes time, date, departure airport, arrival airport, air time (Time in Service), flight time (engine time) and cycles (landings). We also collect the nearest METAR and TAF and store it as part of the logbook entry.

    Location Tracking
  • As often as every 5 minute while in use, the Phoenix Aircraft Monitor reports your aircraft's position and status. This includes not only the latitude, longitude and altitude. It also includes any alarms generated during flight such as excessive G-forces and SOS alarms.
    Maintenance notifications

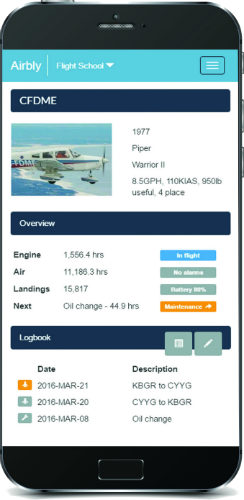

  • Our web and smartphone applications simplify the tracking of cyclic maintenance items such as ADs, service bulletins, oil changes and other inspections. You will be notified when these items are coming due.
    Installation
  • The Phoenix is shipped configured for your aircraft and only takes a few minutes to install on your aircraft instrument panel. No screws. No wires. No downtime.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Service Descriptions

    Basic - Bluetooth sync only
  • Detailed flight track via sync
  • Unlimited accounts
  • Automatic logbook
  • Maintenance tracking
  • Usage reports
  • API Access
  • Automatic crew tracking
    Lite - 250 hours satellite logging
  • All of the features included with Basic
  • Departure/arrival notifications
  • Exceedence notifications
  • SOS alarms
  • Global satellite coverage
    Unlimited - Unlimited satellite logging
  • All of the Features of Lite, plus Unlimited satellite logging

Integrations

    Coflyt
  • CoflytŪ combines inspections and maintenance tracking, scheduling, and billing into a simple, mobile app to provide peace of mind for aircraft owners. Automate your aircraft management today.
    Airbly users can link their Phoenix Aircraft Monitor to Coflyt and automatically upload their flight data right into Coflyt, for faster, easier aircraft management tracking.
    Planelogix
  • PLANELOGIX provides a regulatorily sound method to convert your paper aircraft maintenance logbooks to a living, searchable, and digital format. You can continue using paper in parallel, or stay entirely digital moving forward. Use our powerful maintenance tracking tools to quickly set up tracking items for your aircraft and its components. Share everything with your A&P/IA, track squawks, schedule maintenance, and more.
    Airbly users can link their Phoenix Aircraft Monitor to PLANELOGIX and automatically update the total TTAF, Hobbs, Tach, Landings, and Engine Cycles on their aircraft..

Specifications

  • Size: 94 x 94 x 28mm (3.7 x 3.7 x 1.1 inches)
  • Weight: 200 grams (7 ounces)
  • Battery: 180 days standby or 100 flight hours per charge
  • Power: 10~30 VDC aircraft power or 5VDC micro USB
  • Sensors: GPS, gyroscope, accelerometer, temperature, and battery level

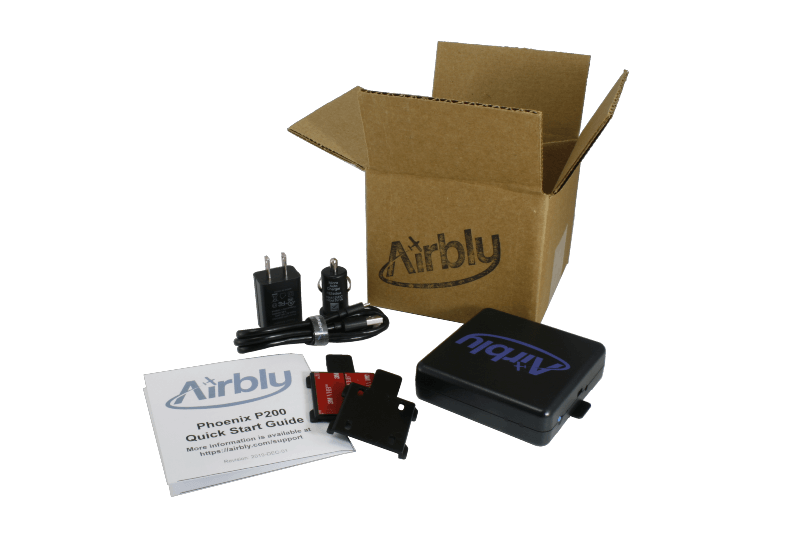

In The Box

  • P200 Unit
  • Mounting brackets
  • USB charging kit
  • Pre-configured for your aircraft

Reviews

I cannot recommend this product enough! Airbly is an incredibly useful addition for GA operations. The support is world class, and the product is great!

Michael M
July 14, 2022

Airbly is one of the best aircraft ownership accessories I have ever purchased. The automation of the technical and journey logs made my owner job much easier especially with a number of different pilots using the plane. It helped me automate cost recovery and invoicing as well as flight tracking, reminder emails maintenance alerts and most importantly reducing the phased maintenance requirements due to its accurate recording of air time. It is easy to use, works right out of the box with no wiring and very reliable. Support is excellent. All my pilot users enjoyed and appreciated this system. When it comes time to sell the aircraft the meticulousness of the logs is easy to demonstrate and adds value.

Bill M
July 13, 2022

I started using the AirBly technology in the fall of 2020 in preparation for a Digital Aircraft Logbook article, published in COPA Flight Magazine. During the course of using their technology, I found it to be quite accurate, eliminating the math errors associated with a paper journey log. In fact, if all of the pilots flying the aircraft have pilot fobs, AirBly is a set it and forget technology (other than charging). When I had any technical challenges, I found AirBly to be quite responsive and 10 times out of 10 were able to resolve the problem. I really like the maintenance alerts and reminders capabilities (e.g. next oil change, magneto overhaul times, etc). With an Electronic Journey Log in the Cloud and on your smartphone or tablet, youre covered from a possible paper disaster (e.g. your Journey Logbook is lost, stolen, water damaged or held hostage by your AMEs). A great solution for an old school problem.

Phil L
July 13, 2022

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Will this Airbly P200 unit work in Kenya, africa? can you monitor on your iPhone? Is there detailed installation manual available?

Yes, this will work in Kenya. Yes you can monitor airplanes on your iPhone. Please see the following URL for support documentation: https://airbly.com/support
