LabelWorks LW-PX750 Deluxe Printer Kit

0 Reviews 0 Answered Questions
Select Kit:
Basic Deluxe
Quantity
Add to Wishlist

Overview

COMPATIBLE TAPES - The LW-PX750 handheld label maker is built for demanding industrial environments, printing on heat shrink tube, self-laminating wrap, durable vinyl, standard industrial, and specialty tapes. Epson LABELWORKS offers a wide selection of tape colors and sizes to meet diverse labeling needs in industrial settings.

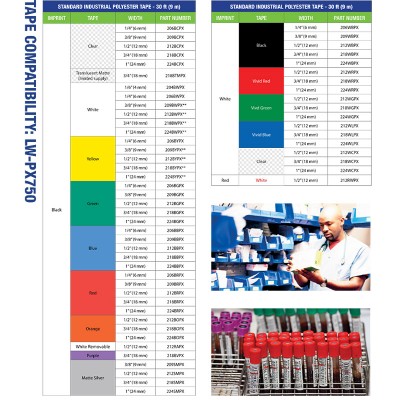

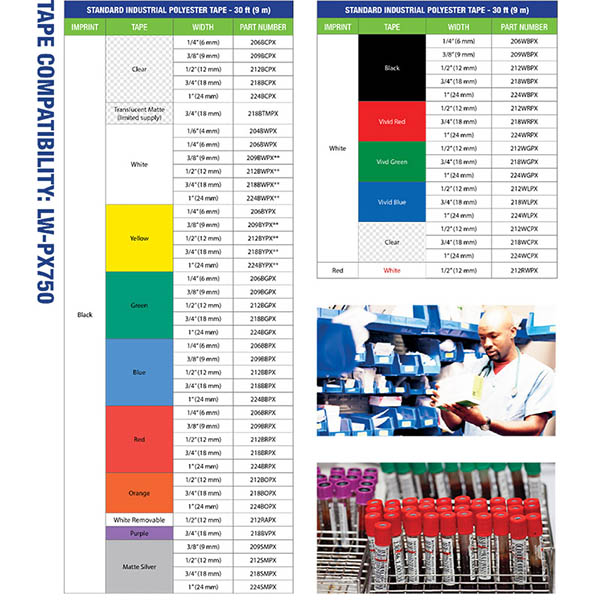

MAX TAPE WIDTH - This versatile label maker creates compliant labels up to 1" (24mm) wide. It’s compatible with popular Epson LABELWORKS PX Tapes, including 212BWPX, 224BWPX, 203YLBWPX, 205STBWPX, and 208B20BWPX, for reliable performance in various applications

PRINT PREVIEW SCREEN - The large, clear print preview screen provides an accurate preview of each label, reducing errors and saving both time and material costs.

COMPLETE KIT - The LW-PX750 comes equipped for industrial use with an AC adapter, a 212VTBWPX industrial tape cartridge, a USB cable, Label Editor software, a user guide, and a durable black soft protective case—everything needed to label efficiently on the job.

LIFETIME WARRANTY – Epson LABELWORKS label makers have an unmatched full-service lifetime warranty. Whether used in the office, data center or on-site, if the label maker breaks, we replace it—no questions asked. *Available only in the United States and Canada.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Prints on supplies up to 1" (24mm) wide
  • Innovative rollback technology to reduce lead margins
  • Auto full/half-cut options to create labels your way
  • Uniform or mixed-length labels that are easy to print
  • Custom label editing software allows for importing from Excel
  • Capable of printing large batches of labels from Excel
  • PeelGuard® corner trimmer to protect and extend label life

Specifications

  • Printing:
  • - Technology: Thermal Transfer
  • - Tape Width: 4-24mm

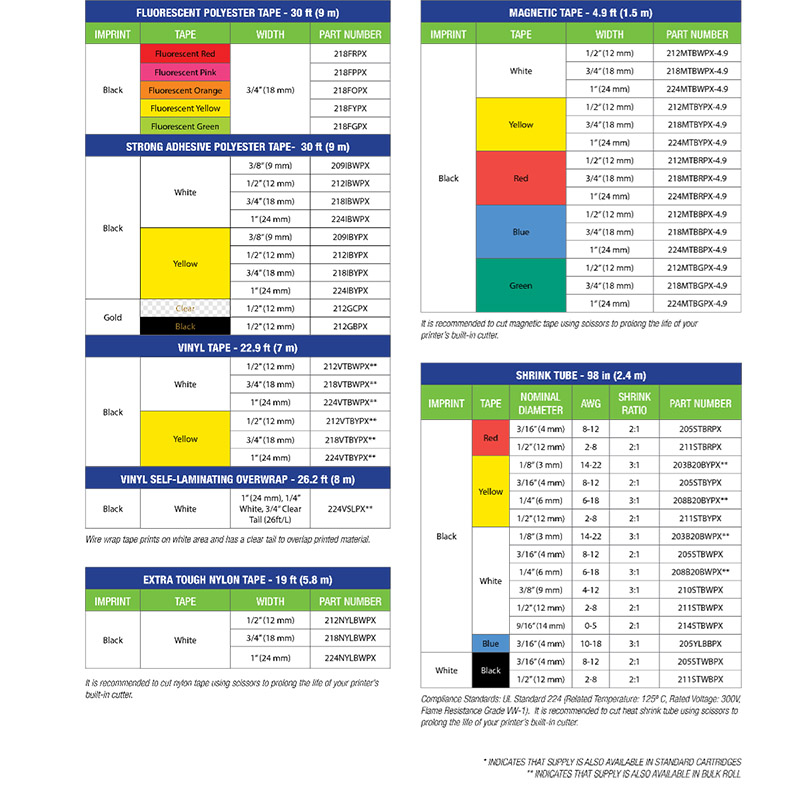

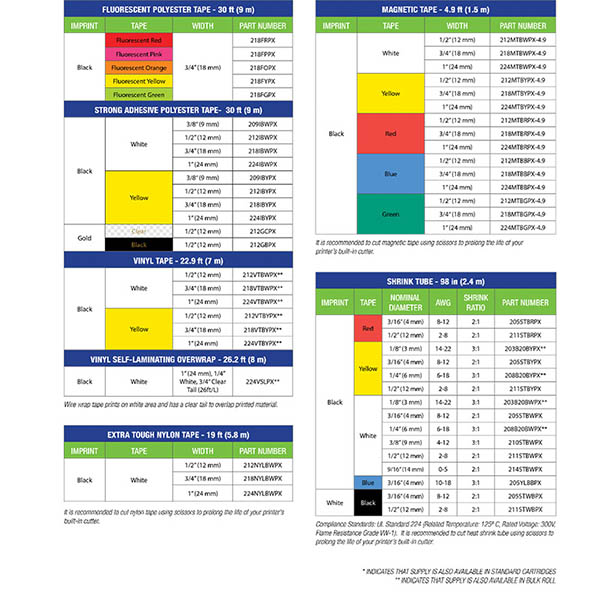

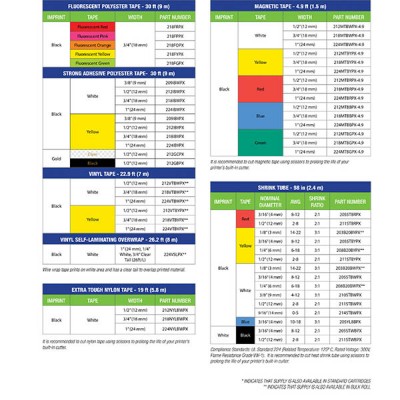

  • - Compatible Heat Shrink Supplies: 203 (3mm 1/8"), 205 (5mm 3/16"), 208 (8mm 1/4"), 210 (10mm 3/8"), 211 (12mm 1/2"), 214 (14mm 9/16")
  • - Resolution: 180 dpi
  • - Printer head width: 18.1 mm
  • - Max Print Speed: 30mm / sec (With AC Adapter)
  • - Store and Print Images: Yes, up to 5

  • Print Settings:
  • - Repeat Printing: Yes
  • - Auto Increment: Yes
  • - Data Import: Yes
  • - Number Serialization: Up to 4 alpha-numeric characters
  • - Mirror Printing: Yes
  • - Vertical Printing: Yes
  • - Mix Length: Yes
  • - Margins: Minimum 4mm lead on standard industrial tapes. Specialty tape lead margin varies by supply
  • - Batch printing settings from 1 to 500mm
  • - Fixed Length: Auto / Custom
  • - Cable Wrap: Yes
  • - Flag: Yes
  • - QR Code: Yes
  • - Barcodes via Handheld: 8 types
  • - Symbols: 892 industrial and professional symbols

  • Hardware:
  • - Cutter: Automatic with full-cut and half-cut function
  • - Detection: Cover Open, Battery Level, Tape Detection (Type and size), Tape End
  • - Drop-Stop & Pick-and-Print: Prints, cuts and holds tape until it is pulled from printer before printing the next label in the batch automatically
  • - LCD: 140 x 80 dot back-lit monochrome LCD
  • - Internal Memory: Up to 50 files

  • Connectivity:
  • - Interface: USB
  • - Software Download: Epson Label Editor: Windows 7, 8, 8.1, 10, 11
  • - *Not compatible with ARM Processors

  • Other Information:
  • - AC Adapter: Yes
  • - Battery: 6AA (Not Included)

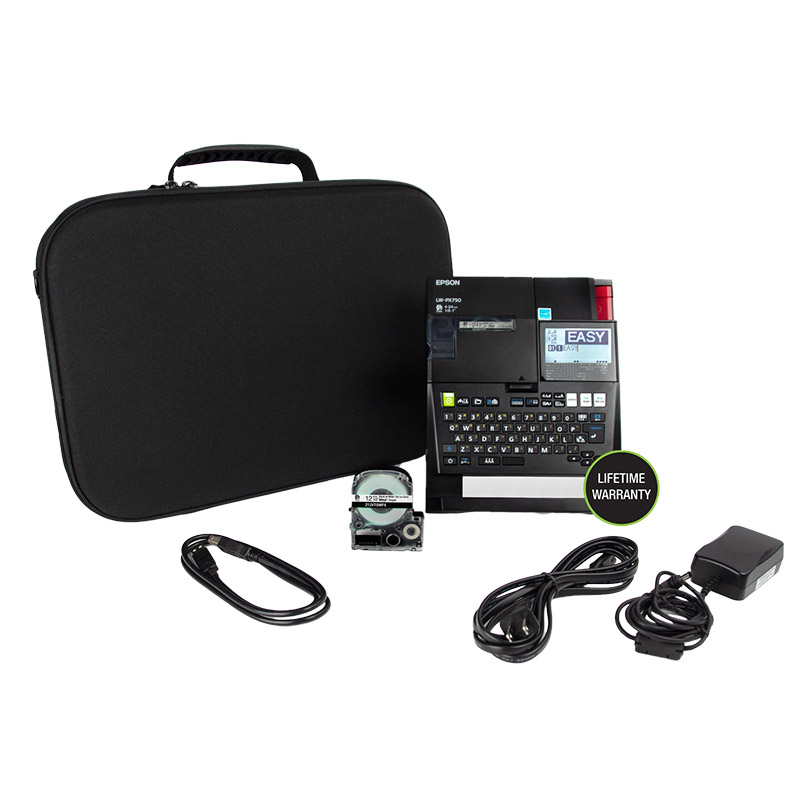

In the Box

  • Basic Includes:
  • - Epson LW-PX750 Printer
  • - 1/2" Black on White Tape Cartridge
  • - AC Adapter
  • - Owner's Manual

  • Deluxe Includes:
  • - Epson LW-PX750 Printer
  • - 1/2" Black on White Tape Cartridge
  • - Label Editor Software
  • - USB Cable
  • - AC Adapter
  • - Owner's Manual
  • - Semi-Rigid Carrying Case
