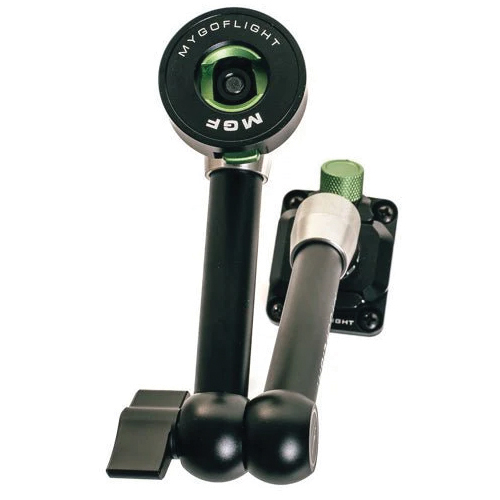

The Sport™ Mount - Flex Clip Mount. This is the first and only mount that you can secure anywhere you wish.
Since the Flex Clip uses Flex Arms, it is infinitely adjustable so pilots are able to mount their device in the exact position they wish that was thought not possible before.
Simply take the metal base and secure it in the desired location with screws or adhesive. Then take the Flex Arm with the clip base and slide it into the base and lock it down by tightening the knob.
This mount serves as a great alternative to a traditional suction cup. It provides a more secure, semi-permanent installation while taking up less space with its smaller footprint. The base measures less than 2 inches square, much less than the three inch suction cup base or the double or triple suction cup mounts used by some pilots. To remove, simply slide a metal ruler into the slots on the base and twist it off or unscrew it. Could not be simpler!
* Fits Monorails sized, 5/16" - 1/2"
The infinitely articulating and adjustable arm attaches to the Universal Cradle to hold any iPad or Tablet, or to the iPad Sport Case for a specific iPad fit. This feature makes this mount future proof. Once attached, the iPad can be viewed in either portrait or landscape modes simply by rotating the device, nothing has to be loosened or tightened to make this happen.
NOTE: You must have a Device Holder to use this mount NOTE: Four screws of an AMPs pattern and with semi-permanent VHB adhesive, sold separately.
Sport Mount - Flex Clip can be installed by any pilot in any aircraft
Attach with screws to an existing AMPs pattern or attach using the semi-permanent adhesive petal base
Ball and socket ends and a ratcheting center provide infinite adjustment to height and position
Vibration minimized. All parts and ball joints made of aluminum and stainless steel, not plastic or rubber
Mount can be carried on and carried off by the pilot with just the base being left in the plane
Rotate device between landscape and portrait positions in-flight when mounted
Flexible arm with a clip that slides & locks into a small footprint base measuring only 1 7/8" x 1 9/16"
Will not release unless unlocked. No suction cups used that can detach due to changes in temperature or pressure
Arm Extension:3.5" to 10.5"
Clip Base Dimensions:2" x 1 3/4"
Clip Base Material:Aluminum
Sport Adapter Material:Aluminum
Sport Adapter Diameter:1 1/2"
Weight:11.7 Oz./333 grams
Securely mount the clip mount bracket in the desired location using four screws (not included) or by using the adhesive petal base
Slide arm with clip base onto the bracket. Tighten green knob on bracket to lock in place
Attach the Sport Case, Universal Cradle, or other device holder (All Sold Seperately) with device to the Sport Adapter
Loosen the control knob, position the device
Fine tune device positioning, tighten control knob
The arm is comprised of three independent joints, all adjustable and lockable from a single, centrally located, control knob
The control knob joint is adjustable to 360° and the two end joints are mini-ball heads that are adjustable to 105°.
The control knob allows partial loosening for safe and precise device positioning
No longer limited to fixed length, limited rotation RAM arms
Takes all of the guess work out of mount size selection and problems of imprecise positioning
Without question the MGF Sport Mount Flex Clip is the best option for attaching an iPad to a general aviation aircraft. I have seen and used a lot of different iPad setups and this is by far the best built and engineered solution. They use only high quality aluminum and the finish is excellent.
I did however have a small problem with one of the extra clips used to move the mount to a different spot in my plane (depending on whether or not I have passengers who like to use ForeFlight for example). The Aircraft Spruce support staff were willing to go the extra mile to get this issue fixed. Benadette and the rest of the phone support are great to work with. However I could sense Aircraft Spruces management did not empower the staff to solve the problem. After a week of talking with AS support staff I gave up and contacted MyGoFlight directly. MGF Fixed the issue immediately at no cost to me. Because Aircraft Spruce management did allow their staff to fix the problem I wasted a week of my time and there time too.
So thumbs up on this device. Thumbs up on Aircraft Spruce phone service staff. And a big thumbs down on Aircraft Spruce management.
February 21, 2018
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Q: What size & thread type are the mounting screws?
The recommend a 8/32 x 1/2 inch counter sunk screw.
