Overview

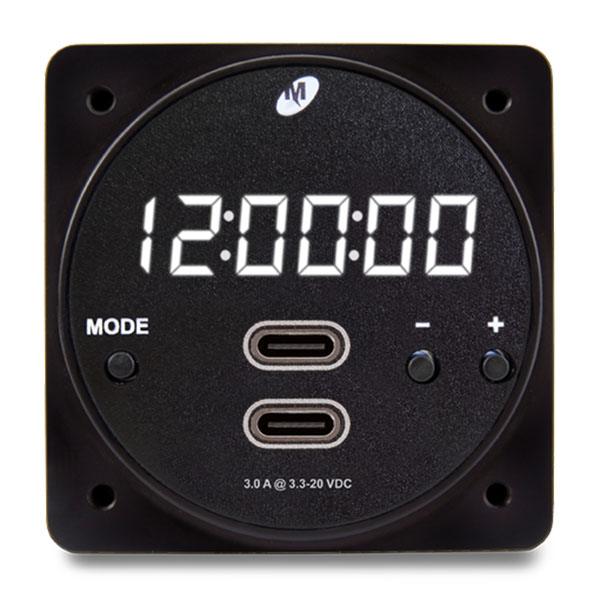

The CH93 series CHRONOS Digital Clocks are a multifunction clock which displays volts, temperature, time, countdown time, and stopwatch, and also comes available with multiple USB charging options. The CH93 installs in to a 2-1/4 inch avionics panel cutout and power is drawn from the aircraft main bus to power the unit. The white, seven-segment LED clock can displays several modes: local time, universal time, flight timers, elapsed and countdown timers and optionally, bus voltage and up to two temperature inputs. The daylight readable display features two methods of brightness controls: automatically using the internal photocell or manually with external dimming bus voltage. An internal battery maintains clock time and flight timer memory when the aircraft is not in use. This CH93 digital clock (6420093-6) features dual USB-C charging ports, Local Time, UTC/Zulu Time, Flight Timer, Countdown Timer, Stopwatch, Volts, OAT, Secondary Air Temp.

	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

• Six-digit, seven-segment LED clock
• Eight modes: Local Time, UTC / Zulu Time, Flight Timer, Countdown Timer, Stopwatch, Volts, OAT and Secondary Air Temp
• Clock settings include 12- or 24-hour mode and seconds On or Off
• Manual and automatic lighting control with programmable dimming curves
• Internal, field-replaceable battery maintains time and Flight Timer memory without aircraft power
• Compact, 2-inch size fits standard panel cutout
• 45 watts / 3 amps USB power per port
• Compatible with Apple, Android and other USB devices
• Protects itself and the charging device from short circuit, power surges and over-current potential
• Designed and built in Wichita, Kansas, USA
• Two-year limited warranty

Specifications

Power Input12–32 VDC; 107 W maximum7.6 amps @ 14 VDC / 3.8 amps @ 28 VDC
USB Power Output5 - 20 VDC (variable); 45 W, 3.0 A per port
Clock Accuracy±15 seconds per month
Weight5.0 oz (0.3 lbs)
ModesLocal Time, UTC / Zulu Time, Flight Timer, Countdown Timer, Stopwatch, Volts, OAT and Secondary Air Temp
Operating Temp-40ºC to 70ºC (-40ºF to 158ºF)
Altitude55,000 feet
MountingRear-panel mounted, (4) #6 screws
Dimensions2.39″W x 2.39″H x 1.22″D
Connector KitMCIA P/N 9018178-1
USB InterfaceDual USB-C PD
CaseAnodized aluminum, black
CertificationFAA TSO certified to C71EASA ETSO certified to C71RTCA DO-160G qualified

Benefits

• Six-digit, seven-segment LED clock
• Eight modes: Local Time, UTC / Zulu Time, Flight Timer, Countdown Timer, Stopwatch, Volts, OAT and Secondary Air Temp
• Clock settings include 12- or 24-hour mode and seconds On or Off
• Manual and automatic lighting control with programmable dimming curves
• Internal, field-replaceable battery maintains time and Flight Timer memory without aircraft power
• Compact, 2-inch size fits standard panel cutout
• 45 watts / 3 amps USB power per port
• Compatible with Apple, Android and other USB devices
• Protects itself and the charging device from short circuit, power surges and over-current potential
• Designed and built in Wichita, Kansas, USA
• Two-year limited warranty

Technical Description

• 2-inch, Digital, 12–32 VDC in, 45W/3A out per port, Dual USB-C PD
• 8 MODES Local Time, UTC/Zulu Time, Flight Timer, Countdown Timer, Stopwatch, Volts, OAT, Secondary Air Temp
