Rotax 503 | 582 Ul 99/17 Bing Double-Float Carburetor 36 Mm Model 96

From $0.31 to $149.95

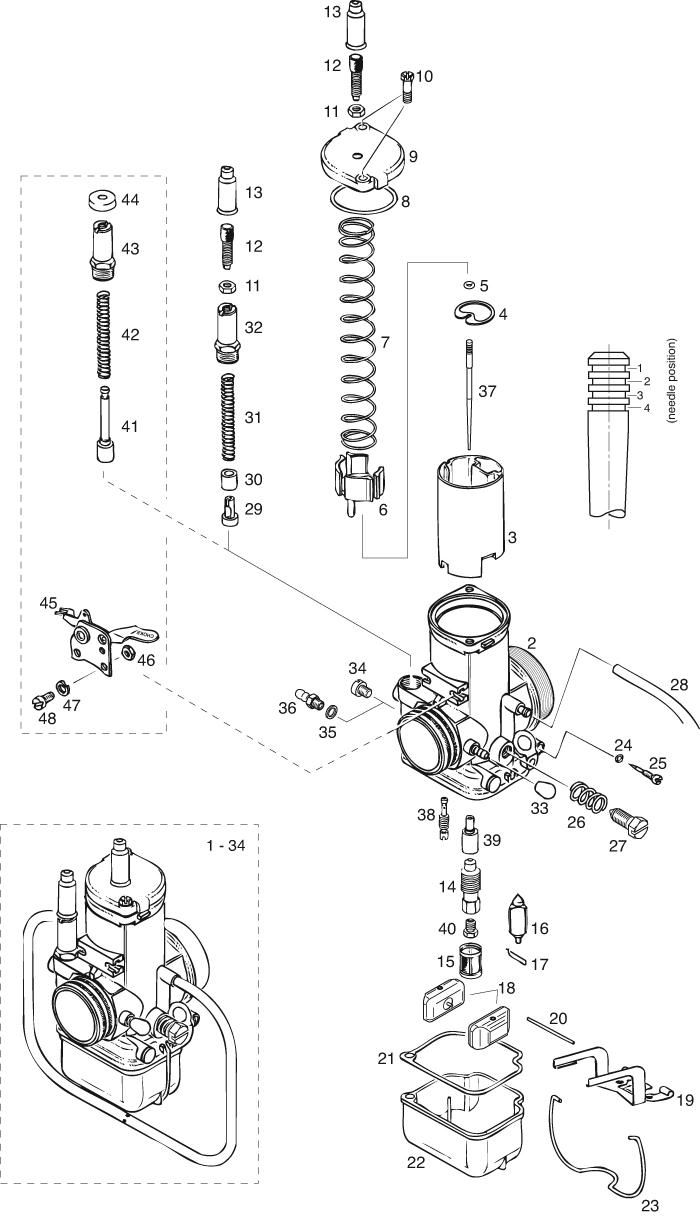

Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

No. Rotax Part Number Description Qty Req. 503 UL Qty Req. 582 UL PN Price Buy
5950-430 O-RING 2.5X1.511
07-00439
$2.06
Quantity
6827-347 SPRING CUP11
07-00394
$11.50
Quantity
7938-655CARBURETOR PISTON SPRING 1, 25/1411
07-00397
$7.50
Quantity
10241-430 HEX. SCREW M5X1222
07-00401
$1.85
Quantity
12241-440ADJUSTMENT SCREW M6X0,75 22
07-00406
$5.60
Quantity
14963-700 MIXING TUBE11
07-00389
$24.60
Quantity
15261-625SIEVE SLEEVE11
15-00331
$7.00
Quantity
19861-192FLOAT BRACKET 11
15-01763
$18.50
Quantity
20929-702PIN11
15-03016
$2.65
Quantity
21830-720GASKET11
15-00903
$12.85
Quantity
23963-180SPRING CLIP11
07-00424
$12.50
Quantity
24831-713O-RING 3,2X1,811
15-00929
$4.60
Quantity
25963-155 AIR REGULATING SCREW11
07-00386
$15.50
Quantity
26938-640SPRING11
07-00396
$3.65
Quantity
28861-940AIR VENT LINE11
07-00437
$14.50
Quantity
29963-740CHOKE PISTON WITH GASKET11
07-00425
$13.50
Quantity
30268-850SLEEVE11
07-00426
$5.35
Quantity
31661-050 COMPRESSION SPRING11
07-00427
$2.44
Quantity
41-48995-667HAND LEVER CHOKE SET11
15-05034
$149.95
Quantity
41268-847 CHOKE PISTON WITH GASKET11
07-00429
$31.50
Quantity
43261-770CHOKE HOUSING11
07-00431
$31.00
Quantity
45261-755CHOKE LEVER ASSEMBLY11
07-00433
$33.50
Quantity
46261-200 HEX. NUT M522
07-00436
$1.70
Quantity
48240-791 SLOTTED HEAD SCREW M5X10 8422
15-07846
$0.31
Quantity
Subtotal $0.00
Add to Wishlist

Overview

  • a   base carburetor for air cooled engines with bowden cable choke.
         NOTICE carburetor without calibration.
         from engine S/N
         503 UL: 4,795.201
  • b   NOTICE carburetor without calibration.
         from engine S/N
         582 UL mod. 90: 4,656.088
         582 UL mod. 99: starting with serial production
  • c   carburetor housing, not available as spare part, use carburetor assy.
  • d   jet-needle, see carburetor calibration sheet
  • e   idle-jet, see carburetor calibration sheet
  • f    needle-jet, see carburetor calibration sheet
  • g   main-jet, see carburetor calibration sheet
  • h   only necessary on high altitude compensation kit (not available anymore)


Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Notes

No.
Status
Part No.
Description
447
503
582
m90
582
m99
618
Price
2
CARBURETOR HOUSING
1c
1c
1c
1c
1c
*
37
JET NEEDLE
1d
1d
1d
1d
1d
*
38
IDLE JET
1e
1e
1e
1e
1e
*
39
JET NEEDLE
1f
1f
1f
1f
1f
*
40
MAIN JET
1g
1g
1g
1g
1g
*
