ROTAX 447 UL ENGINE BING DOUBLE-FLOAT CARBURETOR 36 MM, MODEL 96 PARTS

From $0.13 to $48.50

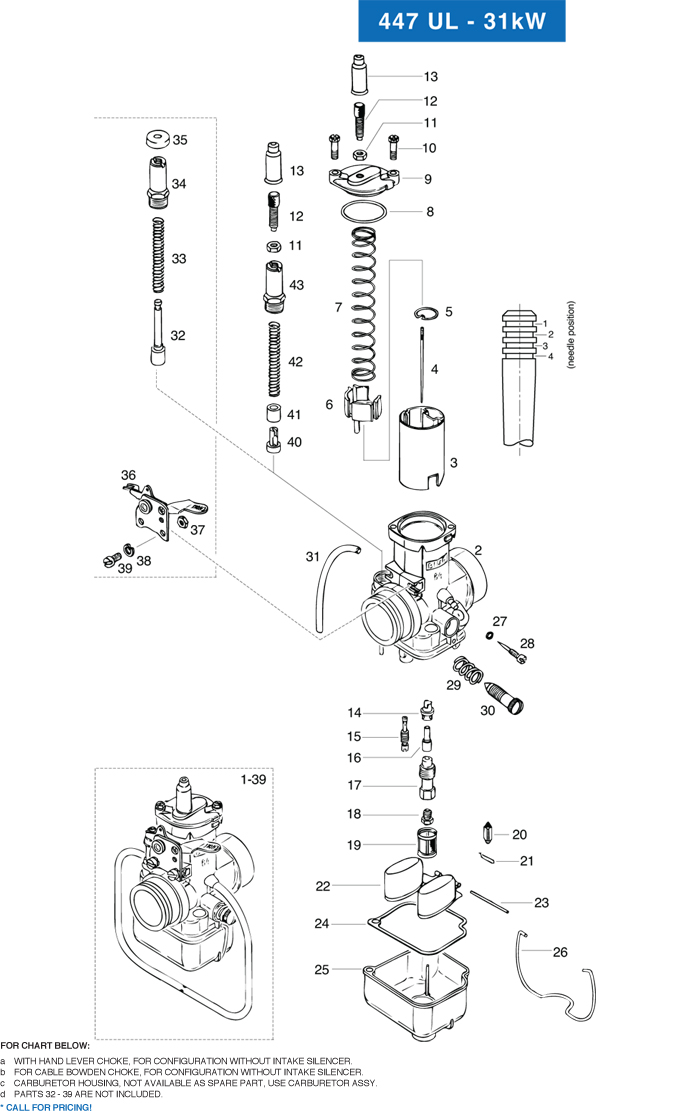

Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

No. Status Rotax Number Description Qty 447 Part Number Price Buy
10241-430HEX. SCREW M5X121
07-00401
$1.10
Quantity
12241-440ADJUSTMENT SCREW M6X0,75 2
07-00406
$4.15
Quantity
15963-140 IDLE JET 501
07-00385
$34.50
Quantity
16261-608 NEEDLE JET 2,701
05-02028
$27.50
Quantity
17963-130 MIXING TUBE1
07-00447
$23.75
Quantity
18268-980 MAIN JET 1351
15-05037
$12.50
Quantity
19261-625SIEVE SLEEVE1
15-00331
$7.00
Quantity
23929-702PIN1
15-03016
$2.16
Quantity
24830-720GASKET1
15-00903
$19.10
Quantity
25963-170FLOAT CHAMBER
07-00454
$48.50
Quantity
26963-180SPRING CLIP1
07-00424
$11.50
Quantity
27831-713O-RING 3,2X1,81
15-00929
$4.35
Quantity
31861-940AIR VENT LINE1
07-00437
$13.65
Quantity
38945-750LOCK WASHER A52
15-03358
$0.13
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Rotax 447 UL engine bing double-float carburetor 36 mm, model 96 parts.

Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653

Notes

No.
Status
Part No.
Description
447
503
582
m90
582
m99
618
Price
2
CARBURETOR HOUSING
1c
NLA
9
261-600
COVER PLATE
1

*
