Rotax 912 | 914 Ul Cooling Air Baffle | Overflow Bottle With Cap | Radiator

From $0.89 to $3.73

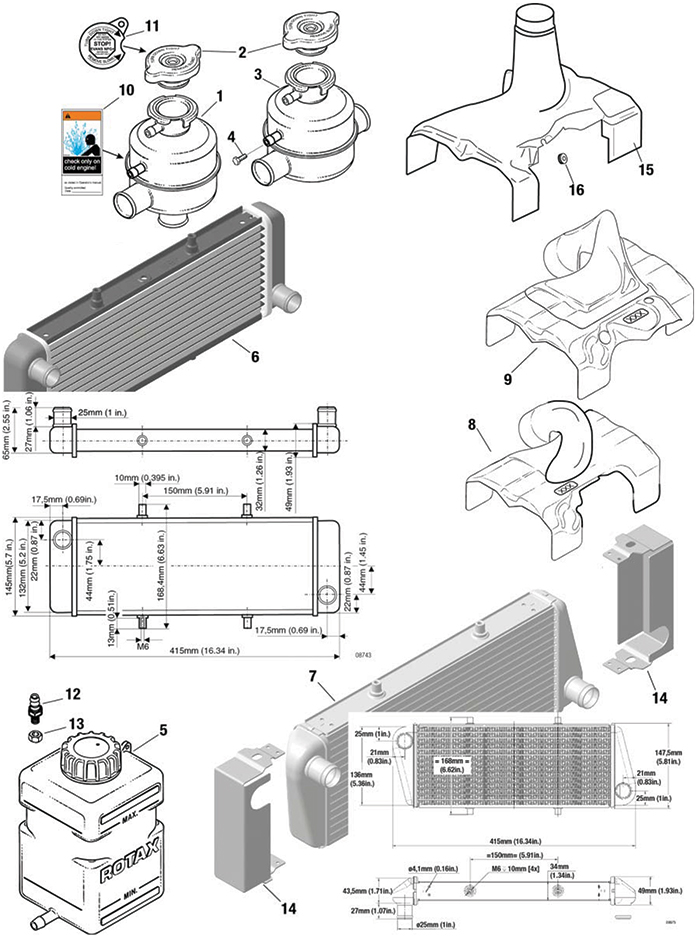

Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

No. Rotax Number Description Qty Req. PN Price Buy
4641-071HEX.SCREW ISO M6X6AR
15-00668
$0.89
Quantity
10897-506WARNING LABEL1
15-02555
$3.73
Quantity
Subtotal $0.00
Add to Wishlist

Overview

- Items not illustrated
  • a   Short version; marked with S/N; tractor, white b   Edition Diamond Marked with S/N;
  • c   See Service Instruction SI-912-020 / SI-914-022 current issue
  • d   See Service Bulletin SB-912-039 / SB-914-029 current issue
  • e   See Service Bulletin SB-912-043 / SB-914-029 current issue
  • f    Same outline dimensions and brackets as TNr. 995-698, but with improved cooling performance
         (18 % bigger cooling surface)
  • g   Use together with part no. 997-083 For retrofitting instead of radiator part no. 997-082
  • h   Cooling air baffle for pusher, color white
  • i    Cooling air baffle for pusher, color black
  • j    Cooling air baffle for tractor, color black


Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653

Notes

No.
Status
Part No.
Description
912 UL
912 ULS
914 UL
Price
1-2
N
922-313
EXPANSION TANK ASSEMBLY 90 DEGREE
(1)
(1)
(1)
6
N
995-698
RADIATOR - STANDARD
(1)
(1)
(1)
*
9
n.a.
COOLING AIR BAFFLE
(1b)
(1b)
(1b)
NLA
12
940-557
HOSE NIPPLE M6
1d
1d
1d
NLA
14
881-530
RADIATOR RETROFIT KIT
1g
1g
1g
*
