Rotax 912 | 914 Ul Oil Pump Assembly | Oil Filter | Oil Temperature Sensor | Oil Pressure Sensor

From $0.42 to $291.59

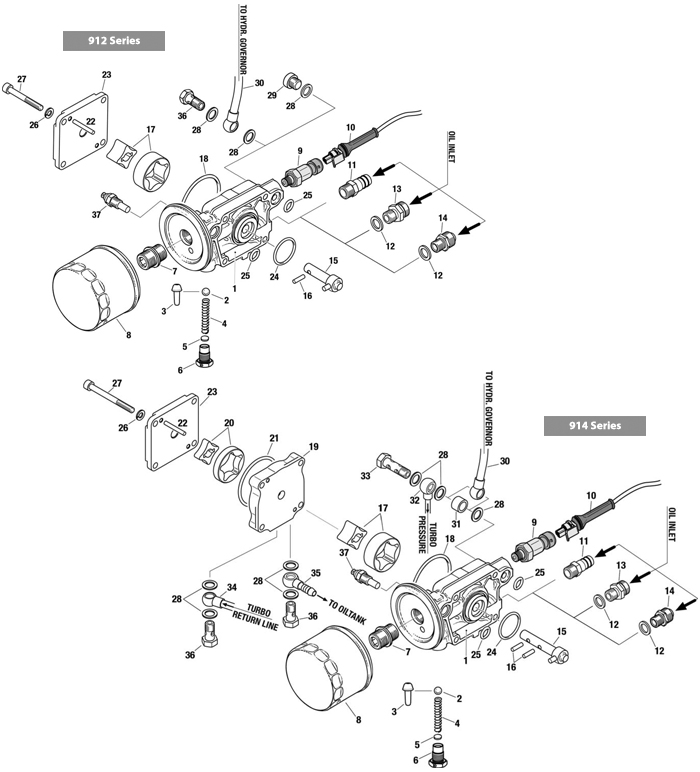

Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

No. Rotax Number Description Qty Req. 912 UL Qty Req. 912 ULS Qty Req. 914 UL Part Number Price Buy
4838-122PRESSURE SPRING DM 7.1 D 0.9 L 39.5111
15-01077
$5.35
Quantity
5227-055SHIM 8.2X1.5ARARAR
15-00040
$0.42
Quantity
8825-016OIL FILTER111
08-06100
$21.50
Quantity
2,3 11840-46113.2/9.5-M14x1.5111
15-08694
$12.65
Quantity
14956-641ADAPTOR 3/4-16 UNF/ M14 X 1.5( 1)(1)(1)
15-03579
$49.55
Quantity
15837-127 OIL PUMP SHAFT ASSEMBLY1
15-01040
$114.15
Quantity
15837-129OIL PUMP SHAFT ASSEMBLY11
15-01041
$92.00
Quantity
19810-592OIL PUMP HOUSING1
15-00715
$291.59
Quantity
21430-175O-RING 46X31
15-00525
$9.40
Quantity
24950-410O-RING 30X2.5111
15-03400
$8.49
Quantity
27241-261ALLEN SCREW M6X65444
15-00171
$0.90
Quantity
29641-733PLUG SCREW M10X111
15-00671
$7.00
Quantity
31847-228SPACER 10.5/15/101
15-01316
$9.05
Quantity
Subtotal $0.00
Add to Wishlist

Overview

- Items not illustrated
  • a   thread 3/4-16 UNF for oil filter 3 mm extended.
  • b   with optimized spring routing
  • c   see SI 912-020/914-022
  • d   for oil pressure sensor part no. 456-180


Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653

California Prop 65 Warning Symbol

WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. www.P65Warnings.ca.gov

Notes

No.
Status
Part No.
Description
912 UL
912 ULS
914 UL
Price
9
s.v.
956-413
OIL PRESSURE SENSOR
1
1
1
NLA
30
xxx-xxx
see chapt. 61-20-00
1
1
1
-
32
xxx-xxx
see chapt. 78-10-00
1
-
33
940-877
BANJO BOLT M10x1x30
1
1
1
-
34
xxx-xxx
see chapt. 61-20-00
1
1
1
-
36
940-876
BANJO BOLT M10x1x19 105 in. lb.
1
1
-
