ROTAX 503 UL REPAIR TOOLS AND GASKET SETS

From $0.79 to $98.50
Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

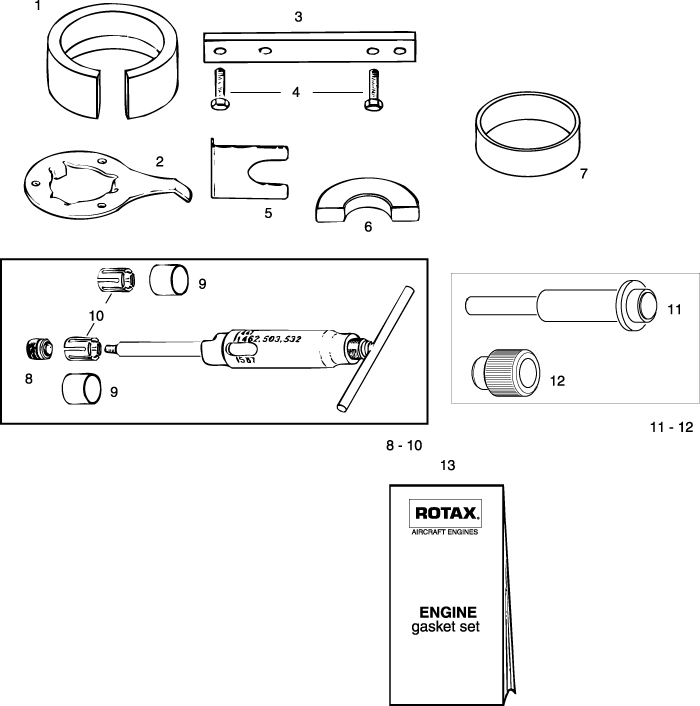

No. Rotax Part Number Description Qty Req PN Price Buy
1876-970PISTON RING SPANNER 72 MM1b
15-02026
$67.70
Quantity
4240-275HEX. SCREW M8X25 DIN 9332
15-00132
$0.79
Quantity
6876-824DISTANCE GAUGE P.T.O. SIDE1f
15-02007
$79.99
Quantity
9 877-180LOCATING SLEEVE2
15-02055
$4.12
Quantity
11877-020CIRCLIP INSTALLATION SLEEVE1
15-02038
$98.50
Quantity
Subtotal $0.00
Add to Wishlist

Overview

- Items not illustrated
  • a   for installation of cylinder on the piston 67,5 mm.
  • b   for installation of cylinder on the piston 72 mm.
  • c   to hold the fan.
  • d   for aligning of cylinders at the intake flange.
  • e   for crankshaft bearing P.T.O. side.
  • f    for positioning of crankshaft bearing P.T.O. side.
  • g   for centering of the stator plate.
  • h   for piston pin 18 mm.
  • i    for installation of piston pin circlip 18 mm.
  • j    for the engine.
  • k   without ignition and externals.


Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653
