Aircraft Anti-Collision Strobe Light 45W 1350Lm - Cree LEDs

Select Color:
WhiteRedGreen
Quantity
Add to Wishlist

Overview

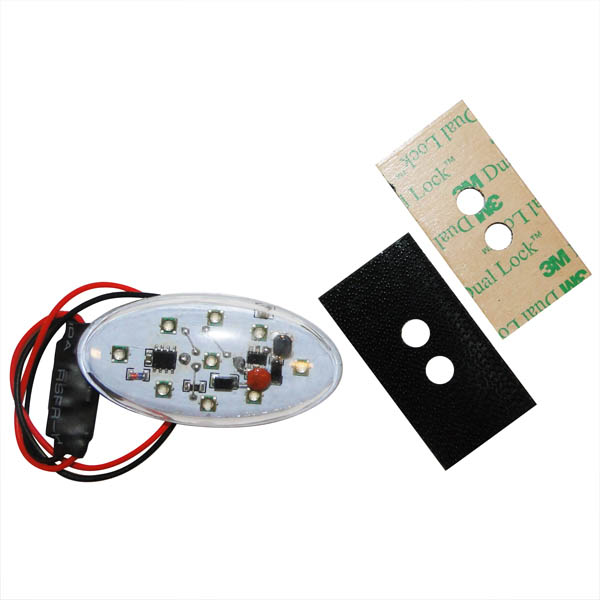

Aircraft Anti-Collision Strobe Light, 45w, 1350 LM CREE LEDs

  • Emitter Type: LED
  • Total Emitters: 9 x 5w
  • Power: 45W Equivalent
  • Rated Voltage: 10-15VDC
  • Draws <280ma @ 14.2VDC
  • Luminous Flux: 1350 LM/108cdl
  • 1 mode: fast strobe (100ms)
  • Base Type: 12"/30cm twin leads
  • Application: Aircraft Anti-Collision Strobe Light
  • Non-PMA'd
  • Contains 1 light bulb per pack
Dimensions: 2.7 in x 1.2 in (60 mm x 30 mm)
Weight: 0.28 oz (8 g)

Installation: 1- Clean surfaces with alcohol. 2- Apply adhesive tape 3- Let stand for 24 hours.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

I fly remote control turbine jet. This lights r amazing 12v

Miguel B Verified Purchase

NAVSTROBE ANTI-COLLSION RED STROBE LIGHT 45W 1350 LEDS

February 3, 2024

Love this lights very visible

Miguel B Verified Purchase

NAVSTROBE ANTI-COLLISION STROBE LIGHT 45W,1350 LM CREE LEDS

February 3, 2024

Very Bright, and the price is right!

Garnet W Verified Purchase

NAVSTROBE ANTI-COLLISION GREEN STROBE LIGHT 45W 1350 LEDS

January 25, 2024

Garnet W Verified Purchase

NAVSTROBE ANTI-COLLSION RED STROBE LIGHT 45W 1350 LEDS

January 25, 2024

Very bright, yet low power draw...Flashes three times then pauses, three times then a pause...Quality looks good...The two wires sticking out the back are not anchored well where they enter the case...Should be reinforced with sealant right away before they break off.

John F Verified Purchase

NAVSTROBE ANTI-COLLISION STROBE LIGHT 45W,1350 LM CREE LEDS

November 8, 2023

Very bright. Perfect for my PPC.

Michael B Verified Purchase

NAVSTROBE ANTI-COLLISION GREEN STROBE LIGHT 45W 1350 LEDS

October 5, 2023

***********

Jose C Verified Purchase

NAVSTROBE ANTI-COLLSION RED STROBE LIGHT 45W 1350 LEDS

March 15, 2023

Jose C Verified Purchase

NAVSTROBE ANTI-COLLISION GREEN STROBE LIGHT 45W 1350 LEDS

March 15, 2023

Excellent value for money strobes that are very bright and simple to fit as a replacement.

Steve P Verified Purchase

NAVSTROBE ANTI-COLLSION RED STROBE LIGHT 45W 1350 LEDS

February 14, 2023

Excellent value for money strobes that are very bright and simple to fit as a replacement.

Steve P Verified Purchase

NAVSTROBE ANTI-COLLISION GREEN STROBE LIGHT 45W 1350 LEDS

February 14, 2023

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this strobe need a separate power supply?

It does not, It will work with any DC source that is 10-15VDC.

Q: Where on the aircraft is this intended to be installed?

This is not an FAA/PMA approved unit and should be installed where the builder feels would work best as an anti-collision strobe.

Q: Does the Aircraft Anti-Collision Strobe light 45W 1350LM- CREE LEDS come with a transparent cover as part of the kit?

The transparent cover is included.

Q: Will this Aircraft Anti-Collision Strobe Light work as an anti-collision light for certified aircraft?

This is not an FAA/PMA approved unit and is designed for experimental aircraft.

Q: Will they hook up to flash together in sequence? Do they flash in color or is the a red or green LED light with flashing white strobe?

These anti-collision lights are timed independently. Sometimes they will synchronize, but only by chance. They are one color per light, that flash together.

Q: Regarding the Aircraft Anti-Collision Strobe Light 45W 1350LM - CREE LEDS: What are the angles of effective viewing in both axes? Also, what is the approximate flash rate?

The effective viewing angle on the horizontal plane is 120 degrees off vertical with reference to the PCB. The flash rate is 25ms (40/s).

Q: What is the visible range of this unit?

Per the supplier: We have not done any engineering measurements of that nature, since the FAA only wants to know the light output in candlepower or lumens (1350 lumens). Only the coast guard does those type of measurements.

Q: How many lumens if using the red LEDs. Is brightness diminished?

The red LEDs have 1300 lumens. Brightness is slightly less than the white.

Q: Do the reds and greens have a constant on red or green and also flash white strobe?

Each assembly is one color, red, green, or white, and flash only.

Q: What are the dimensions of this Aircraft Anti-collision strobe light 45w 1350LM CREE?

The unit is 2.37" long, 1.20" wide, and .39" tall.
