Mittler Bros. Aircraft Scale Set

$1495.00/Set
Quantity
Add to Wishlist
Part# 12-02816
MFR Model# 50297

Overview

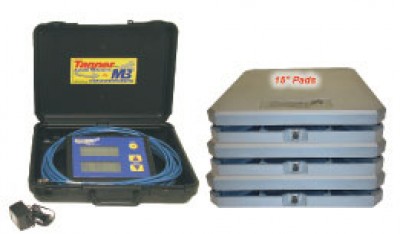

Aircraft scale set by Mittler Bros.

Features:
  • 15 by 15 Inch Cast Aluminum Pads
  • 1500 lbs. per pad capacity
  • Lbs. or Kg.
  • Reads to 1 lb. / 1/10% accurate
  • Displays all information at once
  • Zero all pads at once or individually
  • 40 hour battery life (rechargeable)
  • 110V or 220V Charger (Specify at time of order)

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does the battery charger for the Mittler Bros aircraft scale set come in a 220 / 240V AC version? We dont have 115 here in Australia. Cheers John

Yes, it does come in either voltage configuration. You will be required at the shopping cart to choose whether you need 110V or 220V.

Q: I just wanted to verify that this Mittler Bros. Aircraft Scales Set has 3 scales?

Yes, this set has 3 scales.

Q: Do these Mittler Bros Aircraft Scale sets come calibrated?

Yes, they will come calibrated.

Q: Do these scales keep counting when adding weight to them when doing a weight and balance or do you have to remove the weight and start over?

These scales will keep counting as you add weight.

Q: Do these scales come with Certification for Aviation use (besides the calibration), to be acceptable to the FAA for the 3 yearly weighing of our C182?

Per the supplier: We do not do the Certification here, it would be $275.00 extra. It will take approximately 2 weeks to have this done and sent out.

Q: What is the max total weight this scale can handle?

1500lbs per pad would be the max total weight.

Q: What is the height of the Mittler Bros Aircraft scales and do you sell ramps for the scales?

The height of the scale would be 3". There are no ramps available for this.

Q: What is the total weight in lbs of the set of Mittler Bros Aircraft scales part 12-02816?

The total weight of all components that will ship is 79 lbs.

Q: Does the price includes the other accessories like wires, adapters, reading scale, etc?

Deluxe Aircraft Scales include custom 18 ft cables with Deluxe Stainless Steel connectors and software to calculate center of gravity height.

Q: How often is it the calibration, according to manual?

If your scales are certified for the FCC that cert is only good for 1 year and will need to be checked before certification. Otherwise if they used heavily couple times a week every week through the year I would calibrate them once a year. Less than that maybe every 2 years.
